Overview
-
TSK controls air pump
and heater to create cannon gun smoke effect
-
TSK sense cannon signal from TK board to
trigger smoke fan.
-
Smoke function ( Heater and Fan ) can be
turned on/off via radio
-
Support
Bore evacuator ( fume extractor ) effect
-
Bore
evacuator effect can be turned on/off via hardware setting
-
Additional ESC*1
-
Support
MG smoke effect
-
0.8A
BEC
-
Safety shutoff prevents unwanted movement while CH1 signal lost,
all of the functions are turned off
安全關閉功能可一防止在CH1信號丟失或錯誤時產生不必要的動作,
所有的功能都會被關閉
Terminology
Bore
evacuator evacuate smoke after firing.

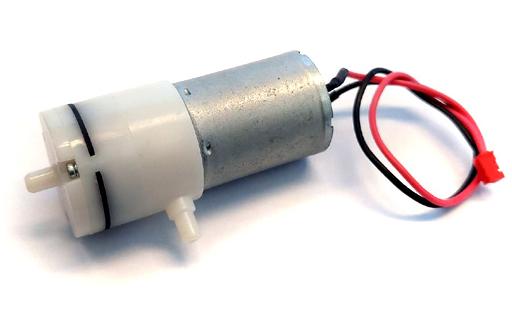

Cannon Air Pump to pump air for cannon smoke effect

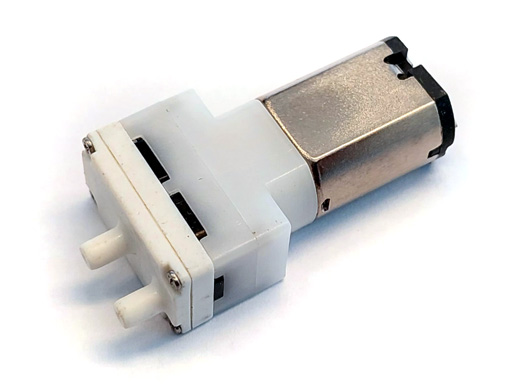

MG
Air Pump to pump air for MG smoke effect

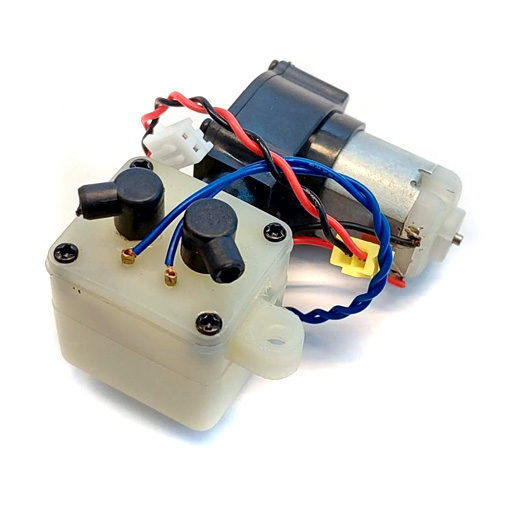

Smoke Box
that used for Cannon and MG smoke, the fan on it is
not needed.
BEC
stands for battery elimination circuit.This
circuit powers the
receiver thought channel cable, therefore no
secondary
battery source is required.
Convention Annotation
Ports, Pins are sometimes
annotated by " ( Device.peripheral.port.pin
) " format, for example:
(TSK.CN1.1) means Pin 1 of CN1 on TSK board
(TSK.CH1
) means CH1 port on TSK board
(TSK.CH1.1
) means Pin 1 of CH1 port on TSK board
Variants/Software Release
|
Part Number
|
Application
|
|
TSK V1 |
|
|
TSK V1.1 |
|
Control
scheme
|
 |
ESC1 forward or reverse rotation |
Connect CH1 to any channel on radio to control ESC1 |
|
|
ESC2 forward or reverse rotation |
Connect CH2 to any channel on radio to control ESC2 |
Accessories
|
Part Number |
Application
|
|
|
Control Cable
|
To wire Servo control signal form Receiver
to
controller
|
|
|
Battery Cable
|
To wire Battery power form Battery to ESC.
Max. Current is
1.0A
|
|
|
Motor Cable
|
To wire Motor to ESC,
Max. Current is
1.0A
|
|
Hardware
Specification
|
Part Number
|
Parameter
|
|
Unit
|
|
TSK
|
Maximum current of left and right track ESC |
2 |
A |
|
Maximum current of left and right track ESC |
2 |
A |
|
Maximum supply
voltage |
7.4
|
V |
|
Minimum supply
voltage |
4.8 |
V |
Product
Identification System
| Device |
TSK |
Tank Smoke
Controller |
| |
|
|
|
Variant |
Blank |
Standard |
| |
|
|
|
Sound Pack |
Blank |
Standard |
| |
|
|

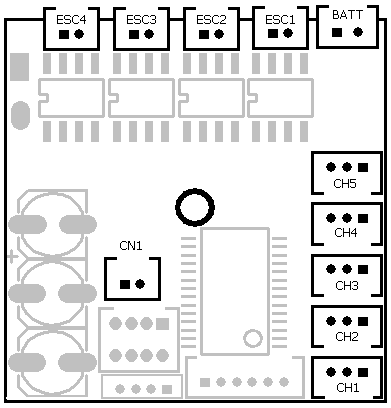

Connector and pin
assignments
V1/V1.1
|
Connector
|
Description/Pin definition
|
Connection |
|
CH1
|
ESC1 Throttle
control
signal
1. Battery -
2.
NC ※
3. Signal
ESC1
油門控制信號
1. 電池負極
2. 空接 ※
3.
信號
|
※Because radio receiver is
powered by TK board, so Pin 2 is NC
※因為接收機已經由TK控制板供電,所以第二腳空接
※
Safety shutoff prevents unwanted movement while CH1 signal lost, all of the
functions are turned off
※ 安全關閉功能可防止在CH1信號丟失或錯誤時產生不必要的動作,
所有的功能都會被關閉 |
|
CH2
|
ESC2 Throttle
control
signal
1. Battery -
2.
NC
3. Signal
ESC2
油門控制信號
1. 電池負極
2. 空接 ※
3.
信號
|
※Because radio receiver is
powered by TK board, so Pin 2 is NC
※因為接收機已經由TK控制板供電,所以第二腳空接 |
|
CH3 |
Cannon smoke on/off
1. Battery -
2.
NC※
3. Signal
砲口發煙功能開啟或關閉
1. 電池負極
2. 空接 ※
3.
信號 |
Connect cannon
Smoke on/off channel on radio
※Because radio receiver is
powered by TK board, so Pin 2 is NC
※因為接收機已經由TK控制板供電,所以第二腳空接 |
|
CH4
|
Cannon trigger
1.
NC
2.
NC※
3. Cannon Trigger Signal
砲口發煙功能觸發
1.空接
2.空接 ※
3.
觸發信號
|
Connect to
J3.2
on TK board
連接到TK板上J3.2腳
※因為接收機已經由TK控制板供電,所以第二腳空接 |
|
CH5 |
Bore evacuator effect OFF
1. NC
2.
NC※
3.
NC
Bore
evacuator effect ON
1. NC
2. 3. are shorted together
排煙效果關閉
1. 空接
2.
空接 ※
3. 空接
排煙效果開啟
1. NC
2. 3. 相接
|
※因為接收機已經由TK控制板供電,所以第二腳空接 |
|
CN1 |
Cannon LED
1. LED +
2. LED - |
|
|
ESC1
|
ESC for CH1 |
|
|
ESC2
|
ESC for CH2 |
|
|
ESC3 |
Cannon Air Pump/Fan |
|
|
ESC4
|
Cannon Smoke Box/Heater |
|
|
BATT
|
Battery
connector
1.
Battery
-
2.
Battery
+ |
|
Precaution
Refer to following pictures, parts circled by red frame are power FET and
regulator,
keep it from any thing for thermal diffusion.
|
