TK16 Series RC Tank
Controller |
TK16 series
ALL-IN-One RC
tank Controller
Turn
your 1/6 RC tank into
proportional radio control
with vivid sound and IR battle
(specifications
and design are subject to change without notice)
 TK16 series controller uses
10 channels RC system to control R/C tank's forward/backward movement, sharp
turning, pivoting, turret rotation and gun barrel evaluation at variable speed
24/140A track motor driver
Maximum of 5 channel of sound track, main gun,
machine gun, turret rotate, gun barrel elevation and engine sound can be
generated at the same time
Max. of 20W
sound output power
3A BEC
Support air-soft gun with sound synchronization
Support TAMIYA 1/16,
TAMIYA 1/35, VStank and HL IR
battle unit and format
Support
RealRecoil servo port
Support
elevation servo port
Safety shutoff prevents
unwanted movement while signal lost
Auto R/C signal detection
Support 3S Li-Po battery
Miniature design(200mm X
100 mm X 40 mm)
|
Device
|
TK16
|
|
Remote Control
System
|
2.4G RC system with S.BUS |
|
User
software
Programmability |
YES |
|
User Sound
Programmability
|
YES |
|
User Tank Personalization
Programmability |
YES |
|
TAMIYA IR battle
Compatible |
YES |
|
HL IR battle
Compatible |
YES |
|
VsTank IR
battle
Compatible |
YES |
|
TAMIYA 1/35
IR battle Compatible |
YES |
|
Damage Simulation on track
|
YES |
|
Damage Simulation
on turret
rotation and gun elevation |
YES |
|
Long
range IR battle (>30M) |
YES
|
|
Maximum sound track |
5 |
|
Engine Sound Simulation
|
V2
Multi-Sample-Set,
Frequency Shift and Level,
Revving, |
|
Sound set for specific tank model |
YES |
|
Track driver
|
24V/140A |
|
Track driver Momentum Effect
with ON/Off Control |
YES |
|
Turret Rotation Speed Control |
YES |
|
Gun Elevation Speed Control
|
YES |
|
Gun Elevation
Servo Port
|
YES |
|
2nd MG sound and Light
effect
|
YES |
|
AirSoft with Sound Synchronization support |
YES |
|
HL Recoil
unit support
|
YES |
|
TAMIYA Recoil Unit Support |
YES |
|
RealRecoil Port |
YES |
|
Smoker Pre-heating |
YES |
|
Proportional
Smoker driver |
YES |
|
Head Light on/off control |
YES |
|
Tank Personalization |
YES |
|
LED gun flash Port |
YES |
|
Chassis
Recoil On/Off
Control
|
YES |
|
Preload sound pack |
KingTiger |
|
Preload software |
10-CH
S.BUS |
|
Kit contained |
TK16 board *1,
S.BUS
cable *1 |
|
Price (USD) |
$500 |
|
Release Schedule |
TBD |
|

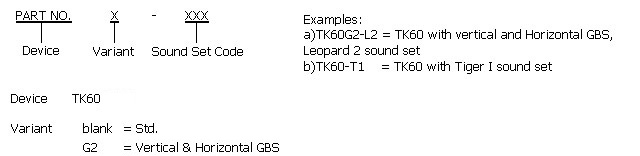

Product
Identification System |
*Sound set code info is on "Sound
Set Code" page
|
Part Number
|
Description
|
|
TK Programmer |
For software,
sound,
Tank
Personalization
data programming |
|
IR Configuration Remote |
For
Tank Personalization function |
|
IR Configuration Line |
5P connector with IR receiver
& Red LED indicator, and a 2.54mm-pitch Jumper
|
|
IR010 |
High
Power IR battle
emitter kit |
|
CAB001 |
1.25mm pitch cable
connector for connecting IR LED or Gun Flash LED |
|
HL Cable Set |
Motor
Cable *2
Battery Cable *1
Speaker Cable *1
Smoke Unit Cable *1,
Smoke Unit Switch Cable (no
switch) *1
8P Inter-connection Cable *1
Volume Control Cable( no VR ) *1 |
|
HL Power
Cable |
One end to TK20, another end to
battery, one switch in the middle |
|
TBU
BASE |
Base and cable to connect TK board to TAMIYA
Battle Unit.
a 2.54mm-pitch Jumper is
included |
|
GBS Unit |
Gun Barrel Stabilizer unit
for TK60G2 |
|
10-CH
S.Bus control
mode scheme
( Based on FS-i6S transmitter + FS-iA10B Receiver ) |
Transmitter: FS-i6S, self-centering VrA
and VrB type Radio
Assign SwA to CH5, SwD to
CH6 SwB to CH7, SwC to CH8, VrA to CH9, VrB to CH10
RX:FS-iA10B
|
Layout |
Command |
Channel
assignment |
|
CH2
CH1 |
Tank Right
and Left turn |
CH1 (Stick) |
|
CH2
CH1 |
Tank move
forward and backward |
CH2 (Stick) |
|
CH4
CH3 |
Cannon elevation |
CH3
(Stick) |
|
CH4
CH3 |
Turret rotation |
CH4
(Stick) |
|
SwB: Up
SwC: Center -> Up |
Natural Gear Shift In/Out |
Assign SwB to CH7
Assign SwC to CH8 |
|
SwB: UP
SwC: Center -> Down
|
Engine start/stop |
Assign SwB to CH7
Assign SwC to CH8 |
|
SwB: Center
SwC: Center -> Up |
Left Blinker |
Assign SwB to CH7
Assign SwC to CH8 |
|
SwB: Center
SwC: Center -> Down |
Right Blinker |
Assign SwB to CH7
Assign SwC to CH8 |
|
SwB: Down
SwC: Center -> UP |
Controlled SW On/Off
|
Assign SwB to CH7
Assign
SwC to CH8 |
|
SwB: Down
SwC: Center -> Down |
Head
light On ->
Rotating Light On ->
Head
light Off->
Rotating Light Off ->Head
light On
|
Assign SwB to CH7
Assign SwC to CH8 |
|
SwA |
UP:
Smoke
Unit On
DW: Smoke
Unit Off
|
Assign SwA to CH5 |
|
SwB |
UP:
Aux Light(L6) Off
DW:
Aux Light(L6) On
|
Assign SwB to CH6 |
|
VrA |
UP:
Booming Cannon
MID:
DW:
Fire Coaxial
MG
|
Assign VrA to CH9 |
|
VrB |
UP:
NA
MID:
DW:
Fire Loader's
MG |
Assign VrB to CH10 |
TK16
Software Release List
|
Software
Package
Name |
Description/Notice/Change/New Features |
Release Schedule |
|
V2 ( S.BUS ) |
-10-CH
S.BUS control scheme,
- Ver.2 Bootloader |
TBD |
|
|
|
|
TK16
Boot Loader Release List
Boot Loader is a application, executed in
TK16, to handles software update, sound pack programming and setting data update
|
Version |
Description/Notice/Change/New Features |
Release Schedule |
|
Ver.2
(Red/Yellow sticker) |
-Auto Sound pack change detection
-Auto Clean at software update |
Released |
|
Parameter
|
|
Unit
|
|
Maximum current of track ESC |
140 |
A |
|
Maximum Pulsed Drain Current current of track ESC |
340 |
A |
|
Maximum current of turret and
cannon elevation ESC |
60 |
A |
|
Maximum current of Smoker Driver |
60 |
A |
|
Maximum supply
voltage |
24V |
V |
|
Minimum supply
voltage |
12V |
V |
|
On-board audio amplifier, Adjustable |
20 |
W |
TK16 series connector layout
TK16 series connector and
pin assignments
|
Connector
|
Description
|
Main Gun Recoil Mode
is set to AirSoft or HL Recoil Mode |
Main Gun Recoil Mode
is set to TAMIYA Recoil Mode |
|
SW |
Switch Cable Port |
HL tank already have power switch on battery cable path, so
additional switch is no longer required, just to short
pins in this port by jumper or connect to a switch cable and keep it switched
on. |
|
CH1
|
CH1 control
signal
|
NA |
|
CH2
|
CH2 control
signal
|
NA |
|
CH3 |
CH3 control
signal |
NA |
|
CH4
|
CH4 control
signal
|
NA |
|
CH5 |
CH5 control
signal |
NA |
|
CH6 |
CH6 control
signal |
NA |
|
CH7 |
CH7 control
signal |
NA |
|
CH8 |
CH8 control
signal |
NA |
|
CN1
|
Battery Power
|
1. Battery +
2.
Battery -
|
|
CN2 |
Infrared Port |
1.
HBU/TBU +
2.
HBU/TBU SIG
3.
HBU/TBU -
4. TBU FLASH LED -
5. TBU FLASH LED + |
|
CN3 |
Gun
Flash Port |
1. Battery +
2.
Strobe Trigger
3.
Battery -
4. HL AirSoft/Recoil Unit Switch
5. HL AirSoft/Recoil Unit Switch |
1. Battery +
2.
Strobe Trigger
3.
Battery -
4. TAMIYA Recoil Unit Switch
5. TAMIYA Recoil Unit Switch |
|
CN4 |
Sound
Volume |
1.
Volume Signal
Output (
Wiper pin of VR
)
2. Battery -( 1 outside pin of
VR )
3.
Volume
Signal
Input (
1 outside pin of VR )
|
|
CN5 |
Speaker |
1.
Speaker -
2.
Speaker +
|
|
CN6-A |
Motor Left Additional Pad
|
|
|
CN6-B |
Motor Left Additional Pad
|
|
|
CN7-A |
Motor Right Additional Pad
|
|
|
CN7-B |
Motor
Right
Additional Pad
|
|
|
CN9 |
Upper
Hull Functions
(
Turn, Lift, Shoot, Light) |
1.
Coaxial
MG
LED-
2. Head Light LED-
3.
Coaxial
MG LED+,
Head Light LED+ &
AIRSOFT/RECOIL
Motor+
4. AIRSOFT/RECOIL Motor-
5. GUN ELEVATE MOTOR
6. GUN ELEVATE MOTOR
7. TURRET MOTOR
8. TURRET MOTOR |
1.
Coaxial
MG
LED-
2. Head Light LED-
3.
Coaxial
MG
LED+,
Head Light LED+ &
TAMIYA
Recoil unit
green Wire
4. TAMIYA Recoil unit white Wire
5. GUN ELEVATE MOTOR
6. GUN ELEVATE MOTOR
7. TURRET MOTOR
8. TURRET MOTOR
|
|
CN10 |
Smoke
Unit /
Smoke
Unit Fan |
1. Smoke
Unit + / Smoke Unit Fan +
2. Smoke
Unit - / Smoke Unit Fan -
|
|
CN11 |
Smoke
Unit /
Smoke
Unit Fan switch |
1.
Switch
2.
Switch
|
|
CN12 |
Smoke
Unit
Heater
|
1.
Heater
2.
Heater
|
|
J1 |
IR Battle Emitter Port |
To work
with IR battle emitter(IR010)
1. IR LED +
2. IR LED - |
|
J2 |
RealRecoil Servo Port |
1. Signal( White Wire)
2.
+5V ( Red Wire)
3. Battery - (Black Wire)
See
RealRecoil section in Assembly Guide |
|
J3 |
LED Main Gun Flasher
Port |
To Work
with
LED
Main Gun Flasher(F003)
1. LED +
2. LED - |
|
J4 |
Gun Elevation Servo
Port |
1. Signal( White Wire)
2.
+5V ( Red Wire )
3. Battery - (Black Wire) |
|
J5 |
Gun Swing
Servo Port
|
1. Signal( White Wire)
2.
+5V ( Red Wire )
3. Battery - (Black Wire) |
|
J6 |
Programming and GBS unit Port |
To
connect TK Programmer or GBS unit |
|
J7 |
S-BUS
Port |
To
connect S-Bus Receiver
1. +5V
2.
Battery -
3.
S-BUS RX
4. TK-LINK TX |
|
J8 |
Engine Deck Level Switch
|
1.
SWITCH
2.
SWITCH
|
|

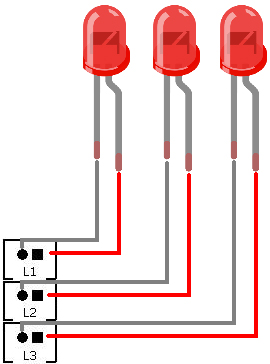

L1 |
Rotating
Light LED1
|
1. LED +
2. LED - |
|
L2 |
Rotating
Light LED2
|
1. LED +
2. LED - |
|
L3 |
Rotating
Light LED3
|
1. LED +
2. LED - |
|
L4 |
Controlled SW/Tail Light |
When
connect to a motor:
1. Motor +
2. Motor -
When connect to a
LED:
1. 200ohm in-serial resistor --> LED +
2. LED -
Maximum Current : 7A |
|
L5 |
1st MG
LED |
1. LED +
2. LED - |
|
L6 |
Aux Light |
1. LED +
2. LED - |
|

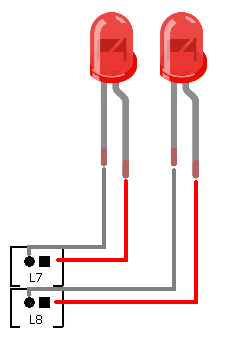

L7 |
Right Blinker( Modern Tank) |
1. LED +
2. LED - |
|
L8 |
Left Blinker( Modern
Tank) |
1. LED +
2. LED - |
Remove RX-18
or 2.4G control board from HL tank
Connect
CH1~CH8 channel cables to receiver according to
control mode.
Plug Left
and Right track motor to CN6 and CN7 on TK60, or solder motor wire to CN6-A,
CN6-B, CN7-A and CN7-B if track motor is 540/550.
(Optional)
Plug battle unit base to CN2
Infrared Port
(Optional)
Plug
Gun
flasher and
recoil unit switch to CN3 Gun
Flash Port
(Optional)
Plug
speaker to CN5
Speaker Port
Plug
volume control unit to CN4
Rewire
Air-soft unit if you want to elevate and depress gun
directly, see "HL
Gun Elevation and AirSoft Correction"
section
Set
Main Gun
Function Mode to match your tank
hardware configuration (HL AirSoft, HL or TAMIYA Recoil),
Plug 8-P
upper hull functions cable to CN9,
Plug smoker unit and switch to
CN10 and CN11,
(Optional)
separate smoker heater wire from
smoker unit and connect to CN12
(Optional) plug
IR011 to J1
(Optional) plug
recoil servo to J2
(Optional) plug
LED flasher to servo to J3
(Optional) plug
elevation servo to J4
(Optional) plug
gun swing servo servo to J5
(Optional) plug
rotate light unit to L1, L2 and L3 connector
(Optional) plug
LED flasher to L5
(Optional) plug
LED flasher to L7
and L8 as Right and left blinker
Install
a switch (for example,
HL Smoke Unit Switch Cable)
to
SW connector( Switch Cable Port)
as power switch.
HL tank already have power switch on battery cable path, so additional
switch is not required, to use a jumper to short
pins in SW Cable port or connect a switch cable and keep it switched on.
When high current track motors are used, such as 400/480 motor,
power switch on battery cable path will not be able to handle,
connect a switch cable (for example,
HL Smoke Unit Switch Cable)
to
this port
as power switch.
TK60 board has 0.8A BEC( Battery
eliminate
circuit),
can power receiver through channel cables, no additional battery is needed for
receiver
Set trimmers on transmitter to center position,
Connect TK60 to battery or power adaptor( See FAQ )
Switch on TK60
board and transmitter,
Send
different commands( see control mode diagram) to test each function, if board
not functions accordingly, adjust trimmer on transmitter.
Done!
|
LED GUN FLASHER Installation: |
A white LED and cable connector are needed( Part Number
is F003)
Solder color wire (red wire in
this example) to long pin of white LED, black wire(-) to short pin,
Plug cable into J3.
|
Rotating light Installation: |
3 LED and cable connector are needed( Part
Number is F003)

|
IR battle emitter Installation |
An IR LED and cable connector are needed( Part
number is IR005/IR010 ).
Solder color wire (red wire in
this example) to long pin of IR LED, black wire(-) to short pin,
Plug cable into J1.
|
Proportional
Smoker driver and Heater pre-heating |
A conventional smoker include
two major parts, Heater and Fan/Pump, Heater heats oil to generate smoke, and
Fan/Pump pushes smoke from smoker unit, on a stock HL Smoker, heater and pump
motor are wired together and driven together as shown in the picture below.
TK60 is capable to control
Fan/Pump and Heater separately to achieve more realistic smoke effect, it starts
to heat heater to generate smoke right after engine start command is given and
smoke accumulated in the chamber, at the moment of engine start, it drive
pump/Fan at full speed to create burst of smoke like real engine, then it drive
pump/Fan proportionally according to the throttle, when engine stop command is
given, it stops fan/pump and heater heating.
To control Fan/Pump and Heater
separately, fan/pump and heater wires on stock HL smoker need to be separated
also and connect TK60 individually, simply unsolder heater wire( red-red ) from
PCB on smoker and connect to CN12 port, pump motor connect to CN10(original
black-red wire), also connect a switch to switch port CN11 to switch on/off
fan/pump control from TK60. video below shows a modified Hen long Smoker driven
by TK60
https://www.youtube.com/watch?v=64Dkc136oWY
If separate control is not needed, just
connect stock Hen long Smoker to CN10, and switch to switch port CN11, TK60 will
also drive HL smoker proportionally according to the throttle.
|
Tank
Personalization( Patent Pending) |
Settings
of TK series board can be changed by
Configuration IR REMOTE
as IR command transmitter, and TAMIYA battle unit(TBU),
Heng-Leog battle
unit(HBU), or our programming line as IR command receiver.
Steps
to change settings:
STEP 1: Turn power off, Turn power off, Turn power off,
STEP 2: Plug programming line/TBU/HBU
through TBU/HBU base into
CN2 Infrared Port ,
STEP 2: Install a jumper to J2
as shown below, Turn power on,
STEP 4:Refer to function table listed below,
point
Configuration IR REMOTE to
TBU/HBU/Programming line receiver, and press the
button
of
setting
that you want to change,
"*"
sign in
function table means
the default setting that is programmed in factory
STEP 5: Indicator on
TBU/HBU flashes according to new
setting value.
STEP 6:
turn power off, remove
jumper on J2, then turn power on and TK board runs
with new settings.
Type of Tank
determines
Battle Date when doing IR battle( See
Variants section
)
|
Type of
Tank
|
Tank
Mobility,
Turret rotation and Gun barrel evaluation speed
vs.
Hit taken |
|
Damaged
State |
Badly Damaged
State |
Destroyed
State |
|
Heavy Tank* |
1~4
hits taken |
5~8
hits taken |
9
hits taken |
|
Medium
Tank |
1~3
hits taken |
4~5
hits taken |
6
hits taken |
|
Light Tank |
1
hit taken |
2
hits taken |
3
hits taken |
|
HL Tank |
1~2
hits taken
(Note) |
3~4
hits taken
(Note) |
5
hits taken |
Note:
HENG-LONG TANK doesn't have Damaged State and Badly Damaged State. speed
reduction can be turned off by
Speed reduction in damage state and Speed
reduction in badly damaged state function.
|
Type of
Tank
|
Reload Time
|
Recovery Time
|
Invulnerability time |
|
Heavy Tank* |
9 sec. |
15
sec. |
10
sec. |
|
Medium
Tank |
5 sec. |
15
sec. |
12
sec. |
|
Light Tank |
3 sec. |
15
sec. |
15
sec. |
|
HL
Tank |
3 sec.(Note) |
15
sec. |
10
sec.(Note) |
Note:
Suggested Value, can be changed by Reload Time and
Invulnerability time setting function
Function tables:
Save
current setting to
PRESET 1: Press number
key "1" on IR Configuration Remote to save,
|
Available Settings |
Indicator
flashes times |
Description |
|
Save to
PRESET 1 |
1 |
Indicator flashes when setting
is saved
|
Save
current setting to PRESET 2: Press number
key "2" on IR Configuration Remote to save,
|
Available Settings |
Indicator
flashes times |
Description |
|
Save to
PRESET
2 |
2 |
Indicator flashes when setting
is saved
|
*Once
you've adjusted everything, you can
push "1" or
"2" to save
current setting to PRESET 1
or 2. If you don't do this saving the board remembers
the last settings.
Use saved settings:
Press "ENT" or "SOUND MODE" Key on
IR Configuration Remote to select.
|
Available Settings |
Indicator
flashes times |
Description |
|
Use
PRESET 1
setting |
1 |
|
|
Use
PRESET 2 setting |
2 |
|
|
Use Factory Default Setting
( Read-Only ) |
3 |
To
restore factory
default value in case of setting data is messed up. |
*To
switch between the presets you press either "sound
mode" or "enter" button, once the preset is selected,
switch tank off and remove setup jumper. Switch back on and away you
go.
Mixer Mode:
Press
(MUTE) key on IR Configuration Remote to select.
|
Available Settings |
Indicator flashes times |
Description |
|
Mixer Mode
1 |
1* |
Tank mode 1
CH1 controls
rudder, CH2
controls throttle.
Proportional steering,
sharp and pivot turn* are supported
|
Left Track |
Right Track |
|
Pivot
Turn |
Sharp
Turn |
Proportional
Steering |
Proportional
Steering |
Sharp
Turn |
Pivot
Turn |
|
|
Mixer Mode
2 |
2 |
OFF mode
CH1
controls left track, CH2 controls right track
When
using triple differential gear box,
CH1
controls steering motor(CN6),
CH2
controls propulsion motor(CN7) |
|
Mixer Mode
3 |
3 |
Tank mode 2
CH1 controls
rudder, CH2
controls throttle,
Proportional steering and
sharp turn are supported
|
Left Track |
Right Track |
|
Sharp
Turn |
Proportional
Steering |
Proportional
Steering |
Sharp
Turn |
|
|
Mixer Mode
4 |
4 |
Half-Track mode
CH1 controls
rudder, CH2
controls throttle,
Support proportional steering only.
Max. turn
ratio ( speed ratio of left and right track at hard left and right turn)
can be
configured form
large (4)
to small (8)
|
Left Track |
Right Track |
|
Proportional
Steering |
Proportional
Steering |
|
|
Mixer Mode
5 |
5 |
|
Mixer Mode
6 |
6 |
|
Mixer Mode
7 |
7 |
|
Mixer Mode
8 |
8 |
*pivot
turn is also named as super spin.
Main Gun Function Mode:
Press
"POWER" key
on IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
TAMIYA RECOIL MODE* |
1* |
To use TAMIYA recoil unit,
CN3,
Pin4:TAMIYA
Recoil Unit Switch
CN3,
Pin5:TAMIYA
Recoil Unit Switch
CN9, Pin3:TAMIYA
Recoil Unit green Wire
CN9, Pin4:TAMIYA
Recoil Unit white Wire
|
|
HL AirSoft MODE |
2 |
To use HL AirSoft,
CN3,Pin4:HL
AirSoft Unit Switch
CN3,Pin5:HL
AirSoft Unit Switch
CN9,Pin3:HL AIRSOFT Motor +
CN9,Pin4:HL
AIRSOFT Motor -
|
|
NA |
3 |
Do not select this mode
|
|
NA |
4 |
Do not select this mode |
*Use this mode on Hooben Tank.
Receive
TAMIYA IR Code:
press
"TV/VIDEO" or "->[]" Key on
IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Enabled |
1* |
Tank react to
TAMIYA IR code |
|
Disabled |
2 |
|
Receive
HL IR Code:
press
"VOL DOWN" Key on
IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Enabled |
1* |
Tank react to HL IR
code, |
|
Disabled |
2 |
|
IR
Battle Preset Data: press "MTS" or "A/B" Key on
IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
TAMIYA Heavy tank |
1* |
Reload Time = 9 seconds,
Invulnerability time = 10 seconds,
Max. hit can
take = 9 hit. |
|
TAMIYA
Medium tank |
2 |
Reload Time = 5 seconds,
Invulnerability time = 12 seconds,
Max. hit can
take = 6 hits |
|
TAMIYA
Light tank |
3 |
Reload Time = 3 seconds,
Invulnerability time = 15 seconds,
Max. hit can
take = 3 hits. |
|
Heavy Armored Vehicle |
4 |
Invulnerability time = 10 seconds,
Max. cannon hit cam take = 1 hit
Max. machine gun hit can take = 24 hit. |
|
Medium
Armored Vehicle |
5 |
Invulnerability time = 10 seconds,
Max. cannon hit can take = 1 hit
Max. machine gun hit can take = 16 hit. |
|
Light
Armored Vehicle
|
6 |
Invulnerability time = 10 seconds,
Max. cannon hit can take = 1 hit
Max. machine gun hit can take = 8 hit. |
|
HL tank |
7 |
Reload Time = 3 seconds,
Invulnerability time = 10 seconds(Note1)
Max. hit can
take = 5 hits, |
|
Reserved |
8 |
|
Note1: Reference setting for HL
Tank
Momentum effect On/Off: Press "SLEEP(0x36)"
or " "
on IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Off |
1* |
|
|
ON |
2 |
|
Reload Sound On/Off: Press "Timer
Off(0x3C)"
or "
 "on IR
Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
On |
1* |
|
|
Off |
2 |
|
Taking
a hit hull recoil On/Off: Press "JUMP(0x3B)"
on IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
On |
1* |
|
|
Off |
2 |
|
Strength of
taking a hit hull recoil:
Press "CH Up" or
"PROGR +" key
on IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
1 |
1 |
Small( 1 ) to Large( 16
)movement |
|
: |
: |
|
6 |
6* |
|
: |
: |
|
16 |
16 |
Firing
tank gun
hull
recoil On/Off:
Press "SURROUND(0x29)"
on IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
On |
1* |
|
|
Off |
2 |
|
Strength of
firing tank gun
hull
recoil:
Press
"VOL UP" key on
IR Configuration Remote
to select
|
Available Settings |
Indicator
flashes times |
Description |
|
1 |
1 |
Small( 1 ) to Large( 16
)movement |
|
: |
: |
|
6 |
6* |
|
: |
: |
|
16 |
16 |
RealRecoil servo direction:
press "CH down"
or "PROGR -" key
on IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Normal |
1* |
|
|
Reversed |
2 |
|
Gun elevation servo direction:
press " Teletext
ON(0x3F)" or " " key
on IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Normal |
1* |
|
|
Reversed |
2 |
|
Speed
reduction
in damaged state:
press "3"
key on IR
Configuration Remote
to select.
|
Available Settings |
Indicator
flashes times |
Description |
|
0% |
1 |
No mobility damage simulation, Speed is not
reduced when Tank is in damaged state. |
|
-12.5% |
2* |
|
|
-25% |
3 |
|
|
-37.5% |
4 |
|
|
-50% |
5 |
|
|
-62.5% |
6 |
|
|
-75% |
7 |
|
|
-87.5% |
8 |
|
Speed
reduction
in
badly damaged
state:
press "DISPLAY"
or "DRC-MF" key on
IR Configuration Remote to
select.
|
Available Settings |
Indicator
flashes times |
Description |
|
0% |
1 |
No mobility damage simulation, Speed is not
reduced when Tank is in badly damaged state. |
|
-12.5% |
2 |
|
|
-25% |
3* |
|
|
-37.5% |
4 |
|
|
-50% |
5 |
|
|
-62.5% |
6 |
|
|
-75% |
7 |
|
|
-87.5% |
8 |
|
Armor type:
press number
key "9" on IR
Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Heavy Armor |
1* |
Resistance to machine gun
|
|
Soft
skin, like Trucks |
2 |
No resistance to machine gun
|
Sending IR code when firing
machine gun:
press number
key "6" on IR
Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Not
to send
MG
IR code
|
1* |
|
|
To send MG IR code |
2 |
|
Primary weapon reload time:
press number
key "4" on IR
Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
3 seconds |
3 |
|
|
4 seconds |
4 |
|
|
5 seconds |
5 |
|
|
6 seconds |
6 |
|
|
7 seconds |
7 |
|
|
8 seconds |
8 |
|
|
9 seconds |
9* |
|
|
10
seconds |
10 |
|
|
11 seconds
|
11 |
|
|
12
seconds |
12 |
|
|
13
seconds |
13 |
|
|
14
seconds |
14 |
|
|
15
seconds |
15 |
|
Rounds of Primary weapon:
press number
key "8" on IR
Configuration Remote to select,
|
Available Settings |
Indicator
flashes times |
Description |
|
Not
limited |
1* |
|
|
8 rounds |
2 |
|
|
16 rounds |
3 |
|
|
24 rounds |
4 |
|
|
32 rounds |
5 |
|
|
40 rounds |
6 |
|
|
48 rounds |
7 |
|
|
56 rounds |
8 |
|
|
64 rounds |
9 |
|
|
72 rounds |
10 |
|
|
80 rounds |
11 |
|
|
88 rounds |
12 |
|
|
96 rounds |
13 |
|
|
104 rounds |
14 |
|
|
112
rounds |
15 |
|
|
120
rounds |
16 |
|
Primary weapon
IR code:
press number key "0" on
IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
TAMIYA cannon code |
1* |
For TAMIYA IR battle |
|
HL cannon code |
2 |
For HL IR battle |
|
Repair
code |
3 |
For Bergepanzer
application,
damage count decreased by 1 when this IR
code is received, each repair needs 15s, no other vehicle
can damage vehicle that is
under this mode |
|
Machine Gun code |
4 |
Vehicle
with MG |
|
TAMIYA 1/35
Cannon Code |
5 |
|
|
VS tank Cannon
code |
6 |
|
|
Reserved |
7 |
|
|
Reserved |
8 |
|
Invulnerability time:
Vehicle is Invulnerable during
this period,
press number
key "7" on IR
Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Vehicle can not be recovered from destroyed mode |
1 |
|
|
1 second |
2 |
|
|
2 seconds |
3 |
|
|
3 seconds |
4 |
|
|
4 seconds |
5 |
|
|
5 seconds |
6 |
|
|
6 seconds |
7 |
|
|
7 seconds |
8 |
|
|
8 seconds |
9 |
|
|
9 seconds |
10 |
|
|
10
seconds |
11* |
TAMIYA
Heavy tank |
|
11
seconds
|
12 |
|
|
12
seconds |
13 |
TAMIYA
Medium tank |
|
13
seconds |
14 |
|
|
14
seconds |
15 |
TAMIYA
Light tank |
|
15
seconds |
16 |
|
Max hit can take:
Press number key "5"
on IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
1 round |
1 |
|
|
2 rounds |
2 |
|
|
3 rounds |
3 |
TAMIYA
Light tank |
|
4 rounds |
4 |
|
|
5 rounds |
5 |
|
|
6 rounds |
6 |
TAMIYA
Medium tank |
|
7 rounds |
7 |
|
|
8 rounds |
8 |
|
|
9 rounds |
9* |
TAMIYA
Heavy tank |
|
10
rounds |
10 |
|
|
11
rounds |
11 |
|
|
12
rounds |
12 |
|
|
13
rounds |
13 |
|
|
14
rounds |
14 |
|
|
15
rounds |
15 |
|
*The
following setting function is only available on TK16G2
Function Page Selection:
Press "-/--" Key on IR Configuration Remote to select. for
TK60G2 only
|
Available Settings |
Indicator
flashes times |
Description |
|
Select
settings on Page 1 |
1* |
TK board
goes back to this page after power on |
|
Select settings on Page 2
|
2 |
|
|
Select settings on Page 3
|
3 |
|
|
Select settings on Page 4 |
4 |
|
*Text in black means that
setting function is on page1.
GBS LED enable:
press
"TV/VIDEO" or "->[]" Key on
IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Enabled |
1* |
|
|
Disabled |
2 |
|
Elevation Sound Mode:
press
"SOUND Mode" Key on IR
Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
ESC Mode |
1* |
Elevation Sound follows ESC, will
not stop until ESC is stopped |
|
Servo Mode |
2** |
Elevation Sound follows servo
movement, stops when reach both end.
Set to this mode when servo
elevation, auto load position and engine deck detection are turned on. |
*Default setting for TK60
**Default setting for TK60G2
Horizontal GBS motor Speed gain increase:
Select page 4 , press number
key "1" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Horizontal GBS motor Speed gain
decrease:
Select page 4 , press number
key "4" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Horizontal GBS motor Start gain
increase:
Select page 4 , press number
key "2" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Horizontal GBS motor Start gain
decrease:
Select page 4 , press number
key "5" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Horizontal GBS motor Stop gain increase:
Select page 4 , press number
key "3" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Horizontal GBS motor Stop gain
decrease:
Select page 4 , press number
key "6" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
16 |
17 |
|
Horizontal GBS
sensitive
increase:
Select page 4 , press number
key "8" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Horizontal GBS
sensitive
decrease:
Select page 4 , press number
key "0" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
16 |
17 |
|
Vertical GBS
slow
gain
increase:
Select page 3 , press number
key "1" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Vertical GBS
slow
gain
decrease:
Select page 3 , press number
key "4" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Vertical GBS
fast
gain
increase:
Select page 3 , press number
key "2" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Vertical GBS
fast
gain
decrease:
Select page 3 , press number
key "5" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Vertical GBS
servo angle
gain
increase:
Select page 3 , press number
key "8" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Vertical GBS
servo angle
gain
decrease:
Select page 3 , press number
key "0" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Engine deck level
increase:
Select page 3 , press
"VOL UP" on IR Configuration Remote to increase level
Engine deck level
decrease:
Select page 3 , press
"VOL Down" on IR Configuration Remote to decrease level
Engine deck level
Function Enable:
Select page 3, press
"MUTE" Key on IR
Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Disable |
1 |
|
|
Enable |
2* |
|
Auto Load Position UP:
Select page 3 , press
"CH UP" on IR Configuration Remote to increase level
Auto Load Position
Down:
Select page 3 , press
"CH Down" on IR Configuration Remote to decrease level
Auto Load
Position Function Enable:
Select page 3, press
"POWER" Key on IR
Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Disable |
1 |
|
|
Enable |
2* |
|
|
Status read out and IR battle test via
Configuration IR
Remote |
Point
Configuration IR remote to TBU/HBU and press key listed below to show
vehicle status or test IR battle function.
No jumper should be installed on J1.
|
KEY on IR Configuration
Remote |
Description |
|
Number Key "1" |
To repair vehicle,
damage count decreased by 1 |
|
Number Key "2" |
Fire
cannon to
vehicle |
|
Number Key "3" |
Fire machine gun to
vehicle |
|
Number Key "4" |
Number of flash indicate
remain hits
can take |
Q:
My TK60 can not
register a hit from Tamiya tank.
A:
To check "Receive Tamiya IR code" setting. TK60 won't
response Tamiay IR code when this setting is disabled.
Q:
The airsoft motor does not run until after the gun fire sound has played and the
reload sound has happened. I want the airsoft motor to run while the gun sound
plays. I also planned to make recoil work with the airsoft…but when I fire the
gun, the recoil servo operates in time to the sound…but has returned to the
normal position when the airsoft motor operates.
A:
Just need to set Main Gun Function Mode to AirSoft mode, then
cannon sound, servo recoil and airsoft unit will be synchronized.
Q:
I already set Main
Gun Function Mode to
HL AirSoft MODE, but
AirSoft motor does not run when
I give fire cannon command.
A:To
correct airsoft unit wiring as
HL
Gun Elevation and AirSoft Correction section mentioned.
Q:
Airsoft unit fires continuously and have no cannon sound.
A:
When main
Main Gun
Function Mode is configured to AirSoft
Mode, TK60 start to drive AirSoft motor (thought CN9 3rd &4th pin) when fire
cannon command is received.
when Airsoft just fired, Airsoft switch is closed , Tk60 knows it
thought CN3 Pin4
& Pin5.
and then stop to drive Airsoft Motor and start to generate cannon. So in order
to make it works properly, AirSoft motor need to be connected to CN9 pin3
and pin4. AirSoft switch connector to CN3 Pin4
& Pin5.
You can
simply test it by a
tweezers, to short and release
it will stop AirSoft motor.
Q:
How to avoid damage that caused by short circuit to the board?
A:
Damage can be prevented by using a current limited power
adaptor as power source, first to find a ~6V, 400mAh power adaptor, 1K 1/4W ohm
resistor, LED and a motor cable(from HL cable Set)
then
connect + wire(with white strip) from adaptor to red wire of HL cable, - wire to
black wire of HL cable, adn wire resistor and LED as the following to act as
indicator.
Each
time, when you did some modification on circuit or after installation, use this
as power source fist. plug connect each by each, and LED will be dimmed
immediately if any shortage in circuitry and not thing on TK board will be
damaged because power can only supply low & limited current.
The
board might be act very strange when it's power by this, such as motor can not
moves will, cannon fired unexpectedly when turret rotation sound comes up, these
are quite normal because current is not enough.
Q: Tank hull
recoil movement direction is not correct, moves forward and then backward while
firing main gun.
A: Just need to swap motor cables, CN6 to Motor
Right, CN7 to Motor Left, and turn on servo reverser function on throttle
channel from radio transmitter.
Q:
All function runs but just no sound!!
A:
This can be the
common issue on HL Volume Control
board, just to short outer pins of CN4 with
tweezers to verify it. if
sound comes out when doing this, the HL volume control board is broken.
Q:
Do I need noise filtering capacitor on motor
A:
Yes, it's needed to prevent back EMF to interference TK20 board. All HL stock
tank already have it on motors
This type of
capacitor is not good, DO NOT USE!
Q:Tank
moves backward faster than forwards and does not turn. It only turn if firstly
turn steering stick and secondly throttle stick.
A:
To turn off mixer on transmitter and test
again.
Q:
Can get motor
sounds, cannon sounds, turret sounds, but no motion on either drive motors or
turret rotation gearbox
A:
Check if battery voltage
is too low, auto cutoff function cuts motor off when battery voltage is too low.
Q: What
is
Mixer
A: A piece of software
that converts
Rudder and
Throttle
control
signal
to Left and
Right track speed signal. All TK board has mixer on it, mixer
function on RC transmitter need to be turned off.
Q: What is Safety shutoff:
A:
Controller cuts motor off and waits signal come back.
Q:
What is
Auto cutoff:
A:
The motor cutoff will
occurred when battery input drops below minimum supply voltage of controller.
Q: Which RC system can works
with TK board:
A:
Basically, TK can work with all kind of aftermarket RC system
as long as it's PWM system, here is a table list most popular one.
|
Brand
|
Band |
Model Number
|
Result |
|
Futaba
|
72M |
T4VF |
OK |
|
Futaba |
27M AM |
4WD |
OK |
|
Futaba
|
2.4G |
T4YF-2.4G |
OK
|
|
TURNIGY
|
2.4G |
9X |
OK |
|
Spektrum |
2.4G |
|
OK |
|
PLANET |
2.4G |
|
OK |
|
FlySky
|
2.4G |
FS-CT6B |
OK
( Need
to turn mixer function on transmitter off ) |
|
Hobby
King |
2.4G |
HK T6A |
OK |
|
Perfex
|
2.4G |
M24-H radio |
OK |
|
Tactic
TTX |
|
TTX series |
OK |
|
JR
|
27M |
|
OK |
Q: Audio Amp thermal
protection:
A:
that turns off device when junction temperature over 150 degree C to prevent
damage
Q:
Is it possible to make additional settings using
existing IR signals for example to make
HL IR
signal and 9 hits can take, originally 5 hits?
A:
yes, IR code to receive, IR code to transmit, preset
& battle data can be set
independently.
Q:
Is it possible to set setting with other device
(not SONY IR code remote)?
A:
Only Sony IR code remote can be used, you can also
have universal remote and configure it to SONY mode.
Q: Any Other
SONY remote, such as SONY Bravia unified IR
Configuration Remote, can config TK20?
A:
Can't sure, with more and more
setting function are added, some code not common on every remote are used. so we
suggest to use same remote as we use.
Q:
What's BEC
A:
BEC stands for
battery elimination circuit. This circuit powers the
receiver thought channel cable, no
secondary
battery source is required.
Use dry battery or power supply as
power source at testing to keep burn down anything if any error on modification.
then use chargeable battery when every function working normally.
Read
carefully and fully understand the instructions before commencing assembly.
Metal
part on FET can not be touched with any metal when TK board is operating.
MADE
IN TAIWAN
|
