S.bus Light Controller S.Bus燈光控制器

Overview概覽

  • S.Bus light control read S.bus data and generate light effects accordingly

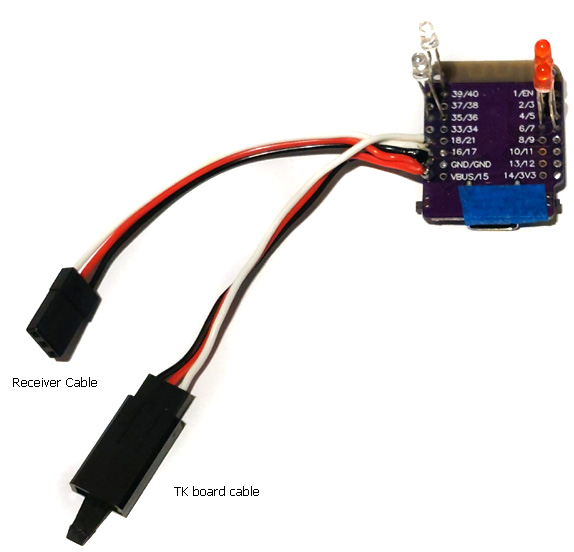

Cable/Pin assignment

SLK01

Cable/Pin name

Description

Pin Assignment/connection

Receiver Cable

Receiver cable

connect to receiver S.Bus output

TK board Cable

TK board Cable

connect to TK board S.Bus input cable

37

Right turn LED1 -

connect to Right turn LED1 -

38

Right turn LED1 +

connect to Right turn LED1 +

39

Right turn LED2 -

connect to Right turn LED2 -

40

Right turn LED2 +

connect to Right turn LED2 +

33

Left turn LED1 -

connect to Left turn LED1 -

34

Left turn LED1 +

connect to Left turn LED1 +

35

Left turn LED2 -

connect to Left turn LED2 -

36

Left turn LED2 +

connect to Left turn LED2 +

6

Reverse LED1 +

connect to Reverse LED1 +

7

Reverse LED1 -

connect to Reverse LED1 -

8

Reverse LED2 +

connect to Reverse LED2 +

9

Reverse LED2 -

connect to Reverse LED2 -

3

Brake LED1 -

connect to Brake LED1 -

4

Brake LED1 +

connect to Brake LED1 +

5

Brake LED2 -

connect to Brake LED2 -

2

Brake LED2 +

connect to Brake LED2 +



Applications

For modern tank and RC car light  effects



Ordering information

Part Number

Description

SLK01

S.bus, Brake, reverse and turn indicator light control
