TK5050 Series RC Tank Gamming Controller
THIS IS NOT 100% PLUG AND PLAY BOARD, SIMPLE
CHANGE IS NEEDED FOR FULL OPTIONS
(specifications
and design are subject to change without notice)
Overview
-
TK5050 series controller uses 10-CH S.BUS RC system to control R/C tank's forward/backward movement, sharp
turning, pivoting, turret rotation and gun barrel evaluation at variable speed
-
Ultrasonic ESC*6 for two track motor and
turret rotation
-
Ultra Low turn-on resistance
FET for track motor ESC
-
Support Gun
Barrel Stabilizer ( G2 Variant )
-
Maximum of 10 channel of
sound effect can be generated at the same
time, such as
-
Main gun
-
Main gun
reload
-
Machine
gun
-
Coaxial
machine gun
-
Hull
mount machine gun( for WWII tank)
-
Turret
rotation
-
Main gun
elevation and depression
-
Turret
rotation
-
Engine
start
-
Engine
revving
-
Engine
stop
-
Turn
indicator
-
Horn(
for Leopard II tank)
-
Incoming( for IR battle)
-
Hit( for
IR battle)
-
Destroyed( for IR battle)
-
MG
incoming
-
MG Hit
-
Hydraulic sound( for ESC3 and ESC4 on Chassis control board )
-
7W
sound output power, 8/4-Ohm Speaker is recommended
-
0.8A BEC
-
EPM*2
for gun elevation(EPM1) and turret rotation/gun traverses(EPM2)
-
Wide operating voltage rage, from 7.2 to 12V, support 3S
Li-Po battery
-
Support air-soft gun with sound synchronization
-
Support TAMIYA and HL IR
battle unit and format
-
Support
RealRecoil servo port
-
Support Recoil
Solenoid for 2nd Machine Gun( MG2 )
-
G variant Support gun
barrel stabilizer
-
Safety shutoff prevents unwanted movement while signal lost
-
Miniature design(60mm X 50mm X 20mm) for 1/25~1/16 R/C Tank
-
V2 Engine Sound Simulation
-
V2 Smoker driver
-
Adjustable Low Battery threshold
-
Adjustable
ESC start voltage
-
Extend sound effect ( for E variant )
-
Support Single-crew or 2-crew control scheme
-
Support
Momentum Effect
Terminology
Ultrasonic
ESC is the ESC block which switch FET at ultrasonic speed, make motor
rotation extreme smooth and quite. start voltage of ESC can also be adjusted
for different type of motor.
Adjustable
ESC start voltage: offset can be added
to ESC input vs. output curve to meet the characteristic of motor
Carefree reversing:
Unlike some other control board, there is no need
for TK series board to
delay before being commanded to reverse,
can go from full forward immediately to full reverse or vice versa
EPM ( ESC/PWM
module) is
peripheral which can be switched to
ESC or PWM mode, allows the user to
drive
brushed motor or servo motor, in ESC mode, ESC port is enabled, can be
used to drive brushed motor, In PWM mode, PWM port is enabled to driver
servo motor, sound effect stopped when servo motor reach end point, TK50 has 2 EPMs for gun elevation(EPM1) and turret rotation/gun traverses(EPM2),
|
EPM No. |
ESC/Ultrasonic ESC port |
PWM port |
|
EPM1 |
5th and 6th Pin of CN9 |
J4 |
|
EPM2
|
7th and 8th Pin of CN9
Note:ESC
in EPM2 is
Ultrasonic ESC |
J5 |
RealRecoil
allows you to recreate real gun barrel recoil movement with single & cheap servo
motor
Recoil
Solenoid
allows you to recreate MG/Auto cannon barrel recoil movement with
Solenoid
V2 Smoker driver smoker fan/compressor speed is proportional to
engine RPM and Load
V2
Mixer turning is achieved by reducing track speed and also increase opposite
track speed to achieve smoother turning.
Adjustable Low Battery threshold
cut off ESC output when battery voltage is lower than threshold, and threshold
can be adjusted according to type and cells
Extend sound effect ( for E variant )
allows you to play 8 audio/music/voice
Momentum Effect
to simulate inertia of tank hull movement
BEC
stands for battery elimination circuit.This
circuit powers the
receiver thought channel cable, therefore no
secondary
battery source is required.
Single-crew or 2-crew control
scheme,
Task of each role in 2-Crew
control scheme are listed below
|
Version |
TTK |
TCK |
|
V1 release |
Co. + Gunner
|
Driver |
|
V2 release |
Preliminary : Gunner
secondary
:RWS
|
Preliminary :
Co. + Driver
secondary
:RWS
|
|
V2.1 release |
On-the-Fly GBS sensor calibration feature added |
|
|
V2.3 release |
Cannon
smoke and MG smoke mode are added |
|
|
V3.3 release |
Cannon
smoke and MG smoke mode are added
V3 sound pack format |
V3
sound pack format |
TK5050 v.s. TK80
|
|
TK5050 |
TK80 |
|
Remote Control System
|
2.4G RC system with S.BUS
具S.Bus的2.4G系統 |
2.4G RC system with S.BUS
具S.Bus的2.4G系統 |
|
2-crew
control scheme |
YES |
NO |
|
Vertical
upgrade |
YES,
Programmable sound version |
YES,
Programmable sound version |
|
ELECTRICAL CHARACTERISTICS |
|
Max. Track driver
current |
20A/60A |
60A |
|
Max. turret driver
current |
20A/60A |
7A |
|
Max. gun elevation
driver current |
7A |
7A |
|
IR battle related |
|
TAMIYA IR battle
Compatible |
YES |
YES |
|
30M IR Battle Range |
YES |
YES |
|
Hit taken from back |
YES |
NO |
|
Sound effects related |
|
Max. sound
tracks |
10 |
5 |
|
Sound set for specific tank model |
YES |
YES |
|
Engine Sound simulation technology |
V2 |
V2 |
|
Incoming sound |
YES |
YES |
|
Reload sound |
YES |
YES |
|
Reload sound On/Off control |
YES |
YES |
|
Functionality |
|
Track
driver Mixer mode |
On/Off, Tank,
Half-Track Mode |
On/Off, Tank,
Half-Track Mode |
|
Momentum
effect on track driver |
YES |
YES |
|
Turret Rotation Speed Control |
YES |
YES |
|
Gun Elevation Speed Control
|
YES |
YES |
|
Tank Personalization |
Tank Class, Mixer mode,
track
recoil strength |
Tank Class, Mixer mode,
track
recoil strength |
|
Peripherals |
|
AirSoft with Sound Synchronization |
YES |
YES |
|
Servo
Recoil |
YES |
YES |
|
Servo Elevation |
YES |
YES |
|
Heng-Long Recoil
unit
support
|
YES |
YES |
|
Tamiya Recoil Support |
YES |
YES |
|
LED GUN FLASHER Port |
YES |
YES |
Terminology
TK Sound
pack is created by combing Pack Header, sound effect data
region and region mark, can be modified and simulate sound effect
result in most of Audio editing tool on the market easily, no
extra tool to install and learn, can be adapted in TK20, TK30 and TK60 series
control board and therefore named TK sound pack
S.BUS
is a serial interface that can carry up to 16 channel data.
TK-LINK
is a serial interface for the
communication between
turret
controller (TTK) and Chassis controller (TCK) ,
TK-LINK RX pin receives commands,
TK-LINK TX pin transmits commands,

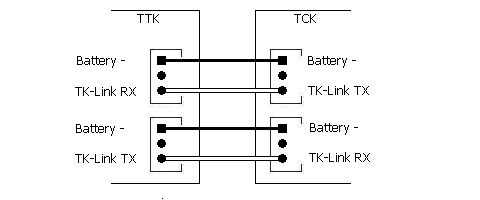

connection between TCK and TTK is as followed diagram.
TK-LINK RX Indicator
is a LED to show the status of data receiving,
when data is received correctly, it's turned off, when data is NOT
received correctly, it's turned ON
TBU FLASH LED
is LED on Tamiya battle unit or IR configuration Line
, which
indicate the IR battle status or the setting
just set during
Tank Personalization

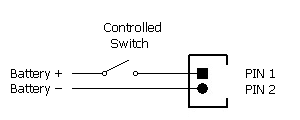

Controlled Switch
is a power port which can be closed or opened by
user command, following is the equipment diagram
EPM (
ESC/PWM module) is
peripheral which can be switched to
ESC or PWM mode, allows the user to
drive
brushed motor or servo motor, in ESC mode, ESC port is enabled, can be used to
drive brushed motor, In PWM mode, PWM port is enabled to driver servo motor,
sound effect stopped when servo motor reach end point,
ESC port of EPM No. is
represented as
EPM No. .ESC, such as EMP1.ESC
PWM port of EPM No. is
represented as
EPM No. .ESC, such as EMP1.PWM
IR Battle Emitter
Port
to connect IR emitter LED to transmit IR beam.
TBU FLASH LED
are LEDs to show IR battle status, such as got
hit from other tank.
HL battle unit has no
TBU FLASH LED on it, need to connect a LED to this
port.
AMP
is amplifier in short
RWS
is Remote Weapon Station in short
Hazard
Light
Left and Right
Blinker are both turned on
Hit taken from back cause more
damage because tank has less protection in back, a Mini battle unit
is connected to TCK.CN2 port to sense hit from back.
Damage level of Hit taken from back setting determines how many
hits taken equal to single hit taken from back.
Product
Identification System
| Device |
TK5050 |
TCK50 +
TTK50 |
| |
|
|
|
Variant |
Blank |
Standard |
| |
S |
Support
S.BUS interface |
| |
P |
Sound
Programmable |
| |
G |
Support
dual-axial Gun Stabilizer |
| |
W |
With
preordered wire on CN1A, CN1B, CN6A, CN6B, CN7A and CN7B pads |
| |
A1 |
105A track
motor current |
| |
V |
Software version |
| |
X |
Use external ESC for
track motor |
| |
E |
Extend Sound effects |
| |
|
|
|
Sound Pack |
T1 |
Tiger I |
| |
KT |
King Tiger |
| |
CH2_V1 |
Challenger 2
ver. 1 |
| |
..... |
Refer to TK Sound Pack webpage for more
information |
Convention Annotation
Ports, Pins are sometimes
annotated by " ( Device.peripheral.port.pin
) " format, for example:
(TTK.EPM2.ESC.Pin1) means Pin 1 of EMP2 on TTK board
(TCK.CN6
) means CN6 port on TCK board
Variants
Hardware
Variants
Track FET and audio amplifier
can be upgraded per order
|
Version |
Description/Notice/Change/New
Features |
Release Schedule |
|
- |
Standard Specification
|
Released |
|
A1 |
100A track current, Class-D 35W Audio
amplifier
|
Per-Order |
|
|
|
|
|
|
|
|
Release Schedule
|
Software
Package
Name |
Description/Notice/Change/New
Features |
Release Schedule |
|
V3.3 |
3rd release
- V3 engine
sound simulation,
- V3 sound
pack, same sound pack is used for TK, TTK and TCK,
- High
speed vertical GBS driver, new algorithm of angle calculation is introduced.
delay to simulate GBS response on real tank is removed.
-
On-The-Fly GBS calibration, not only power-on calibration, but now it can be
performed any time.
-
8 Ext. Sound Effects
supported on TTK, can be triggered independently,
-
Wider motor start voltage adjustable range to meet different motor,
-
Hit taken from back function added.
-
Adjustable Auto load position delay and duration
-
Auto Load position and engine deck level is now supported on non-GBS variant
|
Released
2023/03/07 |
|
|
|
|
Boot loader Release
Boot Loader is a application, executed in TK
board, to handles software update, sound pack programming and setting data
update
|
Version |
Description/Notice/Change/New
Features |
Release Schedule |
|
Ver.2
|
-Auto Sound pack change detection
-Auto Clean at software update |
Released |
Ordering Information
Complete package:
|
Item No. |
Kit
Contained |
|
|
TK5050ESPG2 |
TTK50ESPG2 Turret control board*1,
TCK50SP Chassis control board*1
S.BUS
Cable *2
TK-LINK Calbe *2 |
|
|
TK5050SPG2 |
TTK50SPG2 Turret control board*1,
TCK50SP Chassis control board*1
S.BUS
Cable *2
TK-LINK Calbe *2 |
|
|
TK5050ESP |
TTK50ESP Turret control board*1,
TCK50SP Chassis control board*1
S.BUS
Cable *2
TK-LINK Calbe *2 |
|
|
TK5050SP |
TTK50SP Turret control board*1,
TCK50SP Chassis control board*1
S.BUS
Cable *2
TK-LINK Calbe *2 |
|
Single board:
|
Item No. |
Kit
Contained |
|
|
TTK50ESPG2 |
TTK50ESPG2 Turret control board*1,
S.BUS
Cable *1
GBS unit*1
TK-LINK Calbe *2 |
|
|
TTK50SPG2 |
TTK50SPG2 Turret control board*1,
S.BUS
Cable *1
GBS unit*1
TK-LINK Calbe *2 |
|
|
TTK50ESP |
TTK50ESP Turret control board*1,
S.BUS
Cable *1
TK-LINK Calbe *2 |
|
|
TTK50SP |
TTK50SP Turret control board*1,
S.BUS
Cable *1
TK-LINK Calbe *2 |
|
|
TCK50SP |
TCK50SP
Chassis
control board*1,
S.BUS
Cable *1
TK-LINK Calbe *2 |
|
Turret Control Scheme,
Co./Crew 1
Based on FS-i6S
Radio, Stick Mode is M1
TTK V3.3 Release,
Single crew mode,
Crew 2 is off or TCK radio is not connected
|
  |
Tank Right
and Left turn
|
CH1 (Stick) |
|
 |
Tank move forward and backward
|
CH2 (Stick) |
|
|
TTK.SwA Up :Cannon
elevation/ (TTK.EPM1) throttle
TTK.SwA down:
(TTK.EPM4) Throttle ( RWS elevation)
TTK.SwA 上 :主砲俯仰/ (TTK.EPM1) 油門
TTK.SwA 下:
(TTK.EPM4)
油門 ( RWS elevation)
|
CH3
(Stick) |
|
|
TTK.SwA Up:
Turret rotation/(TTK.EPM2)
throttle
TTK.SwA down:
(TTK.EPM3) Throttle ( RWS rotation )
TTK.SwA 上 :砲塔迴轉/(TTK.EPM2)
油門
TTK.SwA 下:
(TTK.EPM3)
油門 ( RWS rotation )
|
CH4
(Stick) |
|
SwA |
Gun
selection
UP:
Main gun
Down
: RWS
|
assign SwA to CH5 |
|
SwB: Up
SwC: Center -> Up
|
Natural Gear Shift In/Out
履帶馬達安全開關
|
assign SwB to CH7
assign SwC to CH8 |
|
SwB: UP
SwC: Center -> Down
|
Engine start/stop
引擎音效啟動 |
assign SwB to CH7
assign SwC to CH8 |
|
SwB: Center
SwC: Center -> Up
|
Left
Blinker
左方向燈
|
assign SwB to CH7
assign SwC to CH8 |
|
SwB: Center
SwC: Center -> Down |
Right Blinker
右方向燈 |
assign SwB to CH7
assign SwC to CH8 |
|
SwB: Down
SwC: Center -> UP
|
TCK.Hazard Light On/Off
警示燈.駐車燈開關(左右方向燈同時閃爍) |
assign SwB to CH7
assign SwC to CH8 |
|
SwB: Down
SwC: Center -> Down |
TTK39/50
TCK.Head
light On/Off
TCK上的獨立駕駛功能關閉:
頭燈開/關
TTK80/60
TCK.Head
light On ->
TTK.Rotating Light
On ->
TCK.Head
light Off-> TTK.Rotating
Light
Off ->TCK.Head
light On
TCK上的獨立駕駛功能關閉:
頭燈開 -> 迴轉燈開
->頭燈關 -> 迴轉燈關
|
assign SwB to CH7
assign SwC to CH8 |
|
SwD |
UP:
TTK.Aux Light 2 Off
DW:
TTK.Aux Light 2 On
撥桿向上:輔助燈2
關
撥桿向下:輔助燈2
開
|
assign SwD to CH6 |
|
VrA |
UP:
Gun Barrel
Stabilizer on/off ( GBS version )
UP and last more than 3 seconds: GBS
calibration
轉輪往上:
主砲穩定功能 開/關
轉輪往上超過3秒鐘:
執行GBS校正
DW:
轉輪往下: 第二路機槍射擊
|
assign VrA to CH9 |
|
VrA
SwB: Up |
UP:
Gun Barrel
Stabilizer on/off ( GBS version )
UP and last more than 3 seconds: on-the-fly GBS
calibration
轉輪往上:
主砲穩定功能 開/關
轉輪往上超過3秒鐘:
執行GBS校正
DW:
轉輪往下: 第二路機槍射擊
|
assign VrA to CH9
( 3 E variant ) |
|
VrA
SwB: Center |
UP:
Ext Sound Effect 1
MID:
DW:
Ext Sound Effect 2
|
assign VrA to CH9
( E variant ) |
|
VrA
SwB: Down |
UP:
Ext Sound Effect 3
MID:
DW:
Ext Sound Effect 4
|
assign VrA to CH9
( E variant ) |
|
VrB |
UP:
Booming Cannon
MID:
DW:
Fire
TTK.MG1(
Ex. Coaxial MG)
轉輪往上:
主砲射擊
轉輪往下: 機槍射擊
|
assign VrB to CH10 |
|
VrB
SwB: Up |
UP:
Booming Cannon
MID:
DW:
Fire
TTK.MG1(
Ex. Coaxial MG)
轉輪往上:
主砲射擊
轉輪往下: 機槍射擊 |
assign VrB to CH10
( V3 E variant ) |
|
VrB
SwB: Center |
UP:
Ext Sound Effect 5
MID:
DW:
Ext Sound Effect 6 |
assign VrB to CH10
( V3 E variant ) |
|
VrB
SwB: Down |
UP:
Ext Sound Effect 7
MID:
DW:
Ext Sound Effect 8 |
assign VrB to CH10
( V3 E variant ) |
Chassis Control Scheme,
Driver/Crew 2
For Driver Position,
Based on FS-i6S Radio, , Stick Mode is M1
TCK
V3.x Release, with MG-RSW switch
|
|
Tank move forward and backward
戰車前進後退 |
CH1 |
|
|
Tank Right
and Left turn
戰車左右轉向 |
CH2 |
|
|
SwD Up:
( TCK.EPM1) throttle(
forward and backward)
( TCK.EPM1) 油門
SwD
Down:
(TTK.EPM4) Throttle ( RWS elevation) |
CH3
(Stick) |
|
|
SwD Up:
( TCK.EPM2)
throttle(
forward and backward)
( TCK.EPM2)
油門
SwD
Down:
(TTK.EPM3) Throttle ( RWS rotation ) |
CH4
(Stick) |
|
SwA |
Driver State
UP: Driver on state, driver take control
DW:
Driver off state, driver give control to commander
撥桿向上:獨立駕駛功能啟動
撥桿向下:獨立駕駛功能關閉 |
assign SwA to CH5 |
|
SwB: Up
SwC: Center -> Up |
Natural
Gear Shift In/Out
履帶馬達安全開關 |
assign SwB to CH7
assign SwC to CH8 |
|
SwB: UP
SwC: Center -> Down
|
Engine start/stop
引擎音效啟動 |
assign SwB to CH7
assign SwC to CH8 |
|
SwB: Center
SwC: Center -> UP |
Hull Controlled SW On/Off
控制開關 開/關
|
Assign SwB to CH7
Assign SwC to CH8 |
|
SwB: Center
SwC: Center -> Down |
Aux Light L1 On ->
Aux Light L2 On -> Aux Light L3 On -> Aux Light L1,L2 & L3 Off
輔助燈L1開
->
輔助燈L2開
->
輔助燈L3開 ->
輔助燈L1開
L1,L2及L3關
*Not Available on TCK50
|
assign SwB to CH7
assign SwC to CH8 |
|
SwB: Down
SwC: Center -> Up |
Head
light On/Off
頭燈開關 |
Assign SwB to CH7
Assign SwC to CH8 |
|
SwB: Down
SwC: Center -> Down |
Hazard
flasher/Parking lamps On/Off
警示燈.駐車燈開關(左右方向燈同時閃爍) |
Assign SwB to CH7
Assign SwC to CH8 |
|
SwD |
MG-RSW
switch
Up: Select ESC3, ESC4, TCK.MG
Down: select TTK.RWS
撥桿向上:選擇ESC3,
ESC4, TCK.MG
撥桿向下:選擇TTK.RWS |
Assign SwD to CH6 |
|
VrA |
Up:
Right Blinker:
Down: Left Blinker:
轉輪往上:
右方向燈
轉輪往下:
左方向燈 |
assign VrA to CH9 |
|
VrB |
UP
轉輪往上:
機槍射擊
Down: Horn
轉輪往下:
喇叭 |
Assign VrB to CH10 |
ELECTRICAL
CHARACTERISTICS
|
Characteristics |
Typ.
|
Unit
|
|
Maximum current of track ESC ,TK50 series |
30 |
A |
|
Maximum Pulsed Drain Current current of track ESC |
200/30/10 |
A |
|
Maximum current of turret and
cannon elevation ESC |
30 |
A |
|
Maximum current of Smoker Driver |
7 |
A |
|
Maximum supply
voltage |
11.1/7.4/7.4 |
V |
|
Minimum supply
voltage |
7.2 |
V |
|
On-board audio amplifier |
7 |
W |
Pin Assignment Marking
The Pin 1 of each connector is
designated by square pad mark
TTK50SP/SPG Connector
and Pin Assignment
TTK50
EPM Setting and limitation
|
EPM No., Application |
ESC
mode
ESC/Ultrasonic ESC port |
PWM mode
PWM port |
|
EPM1
For Gun Elevation |
CN9.5
CN9.6 |
J4* |
|
EPM2
For Turret
rotation
|
CN7*
|
CH4
(Only available in
None GBS version )
|
|
EPM3,
For
RWS rotation |
CN6* |
N/A |
|
EPM4,
For
RWS elevation
|
CN9.7
CN9.8
|
J5*
|
*Default setting
TTK50
EPM Setting and limitation
|
EPM No., Application |
ESC
mode
ESC/Ultrasonic ESC port |
PWM mode
PWM port |
|
EPM1
For Gun Elevation |
CN9.5
CN9.6 |
J4* |
|
EPM2
For Turret
rotation
|
CN7*
|
CH4
(Only available in
None GBS version )
|
|
EPM3,
For
RWS rotation |
CN6* |
N/A |
|
EPM4,
For
RWS elevation
|
CN9.7
CN9.8
|
J5*
|
*Default setting
RWS (
TTK.EMP3,TTK. EPM4 and TTK.MG2 ) control ownership
|
|
TTK.SwA Up |
TTK.SwA Down
( Co. Override state) |
|
TCK.SwA Up
(Driver On state) |
TCK owns
TTK.EPM3
TTK.EPM4
TTK.MG2
|
TTK owns
-
TTK.EPM3,
-
TTK.EPM4
-
TTK.MG2
|
|
TCK.SwA Down
(Driver Off state) |
N/A |
TTK owns
-
TTK.EPM3,
-
TTK.EPM4
-
TTK.MG2
|
Aux Light 2
mode
|
Connector
|
Description |
Main Gun Function Mode
is configured to AirSoft or HL Recoil |
Main Gun Function Mode
is configured to TAMIYA Recoil |
|
SW |
Switch Cable
Port |
Connect to a switch cable
and keep it switched on.
|
|
CN1 |
Battery
Power |
1. Battery +
2.
Battery - |
|
CN2 |
Infrared Port |
1.
HBU/TBU +
2.
HBU/TBU SIG
3.
HBU/TBU -
4. TBU FLASH LED -
5. TBU FLASH LED + |
|
CN3 |
Gun Flash
Port |
1. Battery +
2.
Strobe Trigger
3.
Battery -
4. AirSoft/Recoil Switch
5. AirSoft/Recoil Switch
|
1. Battery +
2.
Strobe Trigger
3.
Battery -
4. TAMIYA Recoil Unit Switch
5. TAMIYA Recoil Unit Switch |
|
CN4 |
Sound Volume |
1.
Volume Signal
Output (
Wiper pin of VR
)
2. Battery -( 1 outside
pin of VR )
3.
Volume
Signal
Input (
1 outside pin of VR )
|
|
CN5 |
Speaker |
1.
Speaker -
2.
Speaker + |
|
CN6 |
EPM3. ESC |
1.
Motor +
2.
Motor -
*Please refer to TTK50 EPM
Setting Table |
|
CN7 |
EPM4.ESC
(Turret) |
1.
Motor +
2.
Motor -
*Please refer to TTK50 EPM
Setting Table |
|
CH1 |
S.BUS port |
1. Signal
2.
+5V
3. Battery - |
|
CH2
|
TK-LINK RX
|
1. Battery - (Black Wire),
connect to
Battery -
on TCK board
2.
N/C
3.
TK-LINK RX (White wire), connect
to the TK-LINK TX pin on TCK board |
|
CH3 |
TK-LINK TX |
1. Battery - (Black Wire),
connect to
Battery -
on TTK board
2.
N/C
3.
TK-LINK TX (White wire), connect
to the TK-LINK RX pin
on TTK board |
|
CH4 |
EPM2.PWM
/
Engine Deck Level Switch Port
|
TTK50SP:
EPM2.PWM
1. Battery -(Black Wire)
2.
+5V( Red Wire)
3. Signal( White Wire)
TTK50SPG:
Engine Deck Level Switch Port
1.
NO CONNECTION.
2.
SWITCH
3.
SWITCH
* To
close Pin1 and Pin2 when gun barrel travels above engine deck
*Only
|
|
CN9 |
Upper Hull Functions
( Turn, Lift, Shoot,
Light) |
1. MG LED-
2. MG2 LED-
3.
-
MG
LED+
-
MG2
LED+
-
AIRSOFT/RECOIL Motor+
4. AIRSOFT/RECOIL Motor-
5. Elevation Motor
6. Elevation Motor
7. (TTK.EPM2.ESC)
8. (TTK.EPM2.ESC)
*MG LED is also TK-Link RX Error indicator and turned on if not data
received.
*MG2 LED is also GBS calibration indicator and turned on during
calibration |
1.
MG LED-
2. MG2 LED-
3.
4. TAMIYA Recoil unit white Wire
5. Elevation Motor
6. Elevation Motor
7. (TTK.EPM2.ESC)
8. (TTK.EPM2.ESC)
*MG LED is also TK-Link RX Error indicator and turned on if not data
received.
*MG2 LED is also GBS calibration indicator and turned on during
calibration
|
|
CN10
(3/x) |
Aux Light 2 |
Pin 1 is
connected to Battery + when turned on
Pin 2 is
always Battery -
When connect to LED
1
--> 200 ohm resistor --> LED+
2. LED-
When connect to
Rotating Light Module
1.
-->
5V regulator -->
Rotating Light Module port +
2.
Rotating Light Module port -
When connect to
Cannon smoke heater
1.
Cannon
smoke heater pin 1
2.
Cannon
smoke heater pin 2
|
|
CN11 |
Aux Light 2
Switch |
1.
SWITCH
2.
SWITCH
switch on to enable
CN10 port, off to disable CN10
Equivalent circuit of CN10 and CN11
|
|
J1 |
IR Battle Emitter
Port |
To work with IR battle
emitter(IR010)
1. IR LED +
2. IR LED - |
|
J2
(5/5) |
RealRecoil Servo Port |
RealRecoil Servo Port is always
turned ON, no setting is needed to turn it on
1. Battery - (Black Wire)
2.
+5V ( Red Wire)
3. Signal( White Wire)
See RealRecoil section in
Assembly Guide |
|
J3 |
LED Main Gun Flasher Port |
1.
Main Gun
LED +
2.
Main Gun
LED - |
|
J4 |
EPM1.PWM
|
Gun Elevation Servo Port
1. Battery -, connect to servo black/brown Wire
2.
+5V,
connect to servo red wire
3.
Signal |
|
J5 |
EPM2.PWM |
1. Battery -,
connect to servo black/brown Wire
2.
+5V
3. Signal |
|
J6 |
Programming and GBS unit Port |
To connect TK Programmer or
GBS unit
|
TCK50SP Connector and Pin
Assignment
|
Connector
|
Description
|
Pin assignments |
|
SW |
Switch Cable Port |
HL tank already have power switch on battery cable path, so
additional switch is no longer required, just to short
pins in this port by jumper or connect to a switch cable and keep it switched
on.
|
|
CN1 |
Battery Power
|
1. Battery +
2.
Battery -
|
|
CN2 |
Infrared Port |
1.
N/C
2.
N/C
3.
N/C
4. N/C
5. N/C |
|
CN3
(1/x) |
NC |
1.
N/C
2.
N/C
3.
N/C
4. N/C
5. N/C |
|
CN4 |
Sound
Volume |
1.
Volume Signal
Output (
Wiper pin of VR
)
2. Battery -( 1 outside pin of
VR )
3.
Volume
Signal
Input (
1 outside pin of VR ) |
|
CN5 |
Speaker |
1.
Speaker -
2.
Speaker +
|
|
CN6
(x/1) |
Motor Left
|
|
|
CN7
(2/2) |
Motor
Right |
|
|
CH1 |
S.BUS Port |
1. Signal
2.
+5V
3. Battery - |
|
CH2
|
TK-LINK RX
|
1. Battery - (Black Wire),
connect to
Battery -
on TTK board
2.
N/C
3.
TK-LINK RX (White wire), connect
to the TK-LINK TX pin on TTK board |
|
CH3 |
TK-LINK TX
|
1. Battery - (Black Wire),
connect to
Battery -
on TTK board
2.
N/C
3.
TK-LINK RX (White wire), connect
to the TK-LINK RX pin on TTK board |
|
CH4 |
Hull mount MG |
Connect to a
LED:
1. N/C
2. LED +
3.
LED -
*Hull
mount MG
LED is also TK-Link RX Error indicator and turned on if not data received.
*
Hull mount MG
LED也是TK資料鍊接收錯誤指示燈,
當沒接收到信號或錯誤信號時會亮起
|
|
CN9 |
Upper
Hull Functions
(
Turn, Lift, Shoot, Light) |
1. Left Blinker
LED-
2. Right Blinker LED-
3.
-
Left Blinker
LED+
-
Right Blinker LED+
-
Smoke Heater +
4.
Smoke Heater
-
5. TCK.EPM1.ESC
6. TCK.EPM1.ESC
7. TCK.EPM2.ESC
8. TCK.EPM2.ESC
*Maximum Current on Hull
controlled Switch
port : 7A
*Need
200ohm in-serial resistor when connecting LED
*Hull
controlled Switch
port
can be used for Smoker Heater and turn it on when needed. |
|
CN10
(3/x) |
Smoke
Unit |
1.
Smoke Unit/ Smoke Fan
2.
Smoke Unit/ Smoke Fan |
|
CN11 |
Smoke
Unit Switch |
1.
Smoke Unit/ Smoke Fan Switch
2.
Smoke Unit/ Smoke Fan Switch |
|
J1 |
IR Battle Emitter
Port |
To work with IR battle
emitter(IR010)
1. IR LED +
2. IR LED - |
|
J2
(5/5) |
IR programming mode detection |
1. Battery - (Black Wire)
2.
+5V ( Red Wire)
3. Signal( White Wire) |
|
J3 |
Head Light/
Sound Pack Processing
Indicator |
Head Light/Flashing
when CPU processing sound pack
1. LED +
2. LED - |
|
J4
(1/4) |
TCK.EPM1.PWM
|
1. Battery - (Black Wire)
2.
+5V ( Red Wire)
3. Signal( White Wire) |
|
J5
(3/3) |
TCK.EPM2.PWM
|
1. Battery - (Black Wire)
2.
+5V ( Red Wire)
3. Signal( White Wire) |
|
J6 |
Sound Programming Port |
To connect TK Programmer
|
Tank Personalization
Settings
of TK series board can be changed by
Configuration IR REMOTE
as IR command transmitter, and TAMIYA battle unit(TBU),
Heng-Leog battle
unit(HBU), or our programming line as IR command receiver.
`
Steps
to change settings:
STEP 1:
Turn power off, Turn power off, Turn power off,
STEP 2: Plug programming line/TBU/HBU
through TBU/HBU base into
CN2 Infrared Port
,
STEP 2: Install a jumper to J2
as shown below, Turn power on,
STEP 4:Refer to function
table listed below, point
Configuration IR REMOTE
to TBU/HBU/Programming line receiver,
and press the
button
of
setting
that you want to change,
"*"
sign in
function table
means the default setting that is programmed in factory
STEP 5: Indicator on
TBU/HBU flashes according to new
setting value.
STEP 6:
turn power off, remove jumper on J2, then
turn power on and TK board runs with new settings.
Type of Tank
determines
Battle Date when doing IR battle( See
Variants section
)
|
Type of
Tank
|
Tank
Mobility,
Turret rotation and Gun barrel evaluation speed
vs.
Hit taken |
|
Damaged
State |
Badly Damaged
State |
Destroyed
State |
|
Heavy Tank* |
1~4
hits taken |
5~8
hits taken |
9
hits taken |
|
Medium
Tank |
1~3
hits taken |
4~5
hits taken |
6
hits taken |
|
Light Tank |
1
hit taken |
2
hits taken |
3
hits taken |
|
HL Tank |
1~2
hits taken
(Note) |
3~4
hits taken
(Note) |
5
hits taken |
Note:
HENG-LONG TANK doesn't have Damaged State and Badly Damaged State. speed
reduction can be turned off by
Speed reduction in damage state and Speed
reduction in badly damaged state
function.
|
Type of
Tank
|
Reload Time
|
Recovery Time
|
Invulnerability time |
|
Heavy Tank* |
9 sec. |
15
sec. |
10
sec. |
|
Medium
Tank |
5 sec. |
15
sec. |
12
sec. |
|
Light Tank |
3 sec. |
15
sec. |
15
sec. |
|
HL
Tank |
3 sec.(Note) |
15
sec. |
10
sec.(Note) |
Note:
Suggested Value, can be changed by Reload Time and
Invulnerability time setting function
Function tables:
Save
current setting to PRESET 1: Press number
key "1" on IR Configuration Remote to save,
|
Available Settings |
Indicator
flashes times |
Description |
|
Save to
PRESET 1 |
1 |
Indicator flashes when setting
is saved
|
Save
current setting to PRESET 2: Press number
key "2" on IR Configuration Remote to save,
|
Available Settings |
Indicator
flashes times |
Description |
|
Save to
PRESET
2 |
2 |
Indicator flashes when setting
is saved
|
*Once
you've adjusted everything, you can
push "1" or
"2" to save
current setting to PRESET 1
or 2. If you don't do this saving the board remembers
the last settings.
Use saved
settings:
Press "ENT" or "SOUND MODE" Key on IR Configuration Remote to
select.
|
Available Settings |
Indicator
flashes times |
Description |
|
Use
PRESET 1
setting |
1 |
|
|
Use
PRESET 2 setting |
2 |
|
|
Use Factory Default Setting
( Read-Only ) |
3 |
To
restore factory
default value in case of setting data is messed up. |
*To
switch between the presets you press either "sound
mode" or "enter" button, once the preset is selected,
switch tank off and remove setup jumper. Switch back on and away you go.
TCK Mixer Mode:
Press
(MUTE) key on IR Configuration Remote to select( S.BUS version ).
|
Available Settings |
Indicator flashes times |
Description |
|
Mixer Mode
1 |
1* |
Tank mode 1
CH1 controls
rudder, CH2
controls throttle.
Proportional steering,
sharp and pivot turn* are supported
|
Left Track |
Right Track |
|
Pivot
Turn |
Sharp
Turn |
Proportional
Steering |
Proportional
Steering |
Sharp
Turn |
Pivot
Turn |
|
|
Mixer Mode
2 |
2 |
OFF mode
CH1
controls left track, CH2 controls right track
When
using triple differential gear box,
CH1
controls steering motor(CN6),
CH2
controls propulsion motor(CN7) |
|
Mixer Mode
3 |
3 |
Triple
differential gear box simulation
mode
CH1 controls
rudder, CH2
controls throttle.
Left
track speed = Throttle - rudder
Right
track speed = Throttle + rudder
|
|
Mixer Mode
4 |
4 |
Tank mode 2
CH1 controls
rudder, CH2
controls throttle,
Proportional steering and
sharp turn are supported
|
Left Track |
Right Track |
|
0%
Turn |
Proportional
Steering |
Proportional
Steering |
0%
Turn |
|
|
Mixer Mode
5 |
5 |
Half-Track mode 1
CH1 controls
rudder, CH2
controls throttle,
|
Left Track |
Right Track |
|
50%
Turn |
Proportional
Steering |
Proportional
Steering |
50%
Turn |
|
|
Mixer Mode
6 |
6 |
Half-Track mode 2
CH1 controls
rudder, CH2
controls throttle,
|
Left Track |
Right Track |
|
75%
Turn |
Proportional
Steering |
Proportional
Steering |
75%
Turn |
|
|
Mixer Mode
7 |
7 |
NA,Do
not select this mode |
|
Mixer Mode
8 |
8 |
NA,Do
not select this mode |
Main Gun Function Mode:
Press
"POWER" key
on IR Configuration Remote to select
Note: Available
Setting is ALWAYS from
TAMIYA Recoil MODE when power is
applied, then go to HL Airsoft Mode( indicator flashes 2 times) when
POWER key is pressed first time, It does
not means that the selected setting before power off is not saved.
|
Available Settings |
Indicator
flashes times |
Description |
|
TAMIYA RECOIL MODE* |
1* |
To use TAMIYA recoil unit,
CN3,
Pin4:TAMIYA
Recoil Unit Switch
CN3,
Pin5:TAMIYA
Recoil Unit Switch
CN9, Pin3:TAMIYA
Recoil Unit green Wire
CN9, Pin4:TAMIYA
Recoil Unit white Wire
|
|
HL AirSoft MODE |
2 |
To use HL AirSoft,
CN3,Pin4:HL
AirSoft Unit Switch
CN3,Pin5:HL
AirSoft Unit Switch
CN9,Pin3:HL AIRSOFT Motor +
CN9,Pin4:HL
AIRSOFT Motor -
|
|
NA |
3 |
Do not select this mode
|
|
NA |
4 |
Do not select this mode |
*Use this mode on Hooben Tank.
Receive TAMIYA IR Code:
press
"TV/VIDEO" or "->[]" Key on IR
Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Enabled |
1* |
Tank react to
TAMIYA IR code |
|
Disabled |
2 |
|
Receive HL IR Code:
press
"VOL DOWN" Key on IR
Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Enabled |
1* |
Tank react to HL IR
code, |
|
Disabled |
2 |
|
IR
Battle Preset
Data: press "MTS"
or "A/B" Key on IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
TAMIYA Heavy tank |
1* |
Reload Time = 9 seconds,
Invulnerability time = 10 seconds,
Max. hit can
take = 9 hit. |
|
TAMIYA
Medium tank |
2 |
Reload Time = 5 seconds,
Invulnerability time = 12 seconds,
Max. hit can
take = 6 hits |
|
TAMIYA
Light tank |
3 |
Reload Time = 3 seconds,
Invulnerability time = 15 seconds,
Max. hit can
take = 3 hits. |
|
Heavy Armored Vehicle |
4 |
Invulnerability time = 10 seconds,
Max. cannon hit cam take = 1 hit
Max. machine gun hit can take = 24 hit. |
|
Medium
Armored Vehicle |
5 |
Invulnerability time = 10 seconds,
Max. cannon hit can take = 1 hit
Max. machine gun hit can take = 16 hit. |
|
Light
Armored Vehicle
|
6 |
Invulnerability time = 10 seconds,
Max. cannon hit can take = 1 hit
Max. machine gun hit can take = 8 hit. |
|
HL tank |
7 |
Reload Time = 3 seconds,
Invulnerability time = 10 seconds(Note1)
Max. hit can
take = 5 hits, |
|
Reserved |
8 |
|
Note1: Reference setting for HL
Tank
Momentum effect On/Off:
Press "SLEEP(0x36)"
or " " on IR Configuration Remote to
select
|
Available Settings |
Indicator
flashes times |
Description |
|
Off |
1* |
|
|
ON |
2 |
|
*This function is only available
on TK22
Reload Sound
On/Off:
Press "Timer Off(0x3C)"
or "
 "on IR
Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
On |
1* |
|
|
Off |
2 |
|
*This function
is only available on TTK
TCK Cannon Sound
On/Off:
Press "Timer Off(0x3C)"
or "
"on IR
Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
On |
1* |
TCK
generates cannon sound when firing cannon |
|
Off |
2 |
|
*This function
is only available on TCK
TCK Taking
a hit hull recoil On/Off:
Press "JUMP(0x3B)"
on IR Configuration Remote to
select
|
Available Settings |
Indicator
flashes times |
Description |
|
On |
1* |
|
|
Off |
2 |
|
*This function is only available
on TK22
Strength of
taking a hit hull
recoil:
Press "CH Up"
or "PROGR +" key
on IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
1 |
1 |
Small( 1 ) to Large( 16
)movement |
|
: |
: |
|
6 |
6* |
|
: |
: |
|
16 |
16 |
Firing
tank gun
hull
recoil On/Off:
Press "SURROUND(0x29)"
on IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
On |
1* |
|
|
Off |
2 |
|
*This function is only available
on TK22
Strength of firing tank gun
hull
recoil:
Press
"VOL UP" key on IR
Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
1 |
1 |
Small( 1 ) to Large( 16
)movement |
|
: |
: |
|
6 |
6* |
|
: |
: |
|
16 |
16 |
RealRecoil servo direction:
press "CH down"
or "PROGR -" key
on IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Normal |
1* |
|
|
Reversed |
2 |
|
Gun elevation servo direction:
press "
Teletext ON(0x3F)" or " "
key on IR Configuration
Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Normal |
1* |
|
|
Reversed |
2 |
|
*This function is only available
on TK22
Speed
reduction in damaged state:
press "3"
key on IR
Configuration Remote to select.
|
Available Settings |
Indicator
flashes times |
Description |
|
0% |
1 |
No mobility damage simulation, Speed is not
reduced when Tank is in damaged state. |
|
-12.5% |
2* |
|
|
-25% |
3 |
|
|
-37.5% |
4 |
|
|
-50% |
5 |
|
|
-62.5% |
6 |
|
|
-75% |
7 |
|
|
-87.5% |
8 |
|
Speed
reduction in
badly damaged
state:
press "DISPLAY"
or "DRC-MF" key
on IR Configuration Remote to select.
|
Available Settings |
Indicator
flashes times |
Description |
|
0% |
1 |
No mobility damage simulation, Speed is not
reduced when Tank is in badly damaged state. |
|
-12.5% |
2 |
|
|
-25% |
3* |
|
|
-37.5% |
4 |
|
|
-50% |
5 |
|
|
-62.5% |
6 |
|
|
-75% |
7 |
|
|
-87.5% |
8 |
|
Armor type:
press number
key "9" on IR Configuration
Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Heavy Armor |
1* |
Resistance to machine gun
|
|
Soft
skin, like Trucks |
2 |
No resistance to machine gun
|
Sending IR code when firing
machine gun:
press number
key "6" on IR Configuration
Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Not
to send
MG IR code
|
1* |
|
|
To send MG IR code |
2 |
|
Primary weapon reload time:
press number
key "4" on IR Configuration
Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
3 seconds |
3 |
|
|
4 seconds |
4 |
|
|
5 seconds |
5 |
|
|
6 seconds |
6 |
|
|
7 seconds |
7 |
|
|
8 seconds |
8 |
|
|
9 seconds |
9* |
|
|
10
seconds |
10 |
|
|
11 seconds
|
11 |
|
|
12
seconds |
12 |
|
|
13
seconds |
13 |
|
|
14
seconds |
14 |
|
|
15
seconds |
15 |
|
Rounds of Primary weapon:
press number
key "8" on IR Configuration
Remote to select,
|
Available Settings |
Indicator
flashes times |
Description |
|
Not
limited |
1* |
|
|
8 rounds |
2 |
|
|
16 rounds |
3 |
|
|
24 rounds |
4 |
|
|
32 rounds |
5 |
|
|
40 rounds |
6 |
|
|
48 rounds |
7 |
|
|
56 rounds |
8 |
|
|
64 rounds |
9 |
|
|
72 rounds |
10 |
|
|
80 rounds |
11 |
|
|
88 rounds |
12 |
|
|
96 rounds |
13 |
|
|
104 rounds |
14 |
|
|
112
rounds |
15 |
|
|
120
rounds |
16 |
|
Primary weapon IR code:
press number key "0" on IR
Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
TAMIYA cannon code |
1* |
For TAMIYA IR battle |
|
HL cannon code |
2 |
For HL IR battle |
|
Repair
code
|
3 |
For Bergepanzer
application,
damage count decreased by 1 when this IR
code is received, each repair needs 15s, no other vehicle
can damage vehicle that is
under this mode |
|
Machine Gun code |
4 |
Vehicle
with MG |
Invulnerability time:
Vehicle is Invulnerable during
this period,
press number
key "7" on IR Configuration
Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Vehicle can not be recovered from destroyed mode |
1 |
|
|
1 second |
2 |
|
|
2 seconds |
3 |
|
|
3 seconds |
4 |
|
|
4 seconds |
5 |
|
|
5 seconds |
6 |
|
|
6 seconds |
7 |
|
|
7 seconds |
8 |
|
|
8 seconds |
9 |
|
|
9 seconds |
10 |
|
|
10
seconds |
11* |
TAMIYA
Heavy tank |
|
11
seconds
|
12 |
|
|
12
seconds |
13 |
TAMIYA
Medium tank |
|
13
seconds |
14 |
|
|
14
seconds |
15 |
TAMIYA
Light tank |
|
15
seconds |
16 |
|
Max hit can take:
Press number key "5"
on IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
1 round |
1 |
|
|
2 rounds |
2 |
|
|
3 rounds |
3 |
TAMIYA
Light tank |
|
4 rounds |
4 |
|
|
5 rounds |
5 |
|
|
6 rounds |
6 |
TAMIYA
Medium tank |
|
7 rounds |
7 |
|
|
8 rounds |
8 |
|
|
9 rounds |
9* |
TAMIYA
Heavy tank |
|
10
rounds |
10 |
|
|
11
rounds |
11 |
|
|
12
rounds |
12 |
|
|
13
rounds |
13 |
|
|
14
rounds |
14 |
|
|
15
rounds |
15 |
|
Function Page Selection:
Press "-/--" Key on IR Configuration Remote to
select.
|
Available Settings |
Indicator
flashes times |
Description |
|
Select
settings on Page 1 |
1* |
TK board
goes back to this page after power on |
|
Select settings on Page 2
|
2 |
|
|
Select settings on Page 3
|
3 |
|
|
Select settings on Page 4 |
4 |
|
*Text in black means that
setting function is on page1.
Function Page 2
Gun elevation EPM (TTK.EPM1) Mode:
press "1"
key on IR configuration
remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
ESC Mode |
1* |
ESC1 enabled,
PWM1 disabled |
|
PWM Mode |
2 |
ESC1 disabled,
PWM1 enabled
*TK80X
default Setting |
*A Power on and off cycle( turn off power for
5 seconds then power on) is needed to active change after mode change.
Gun elevation servo(
TTK.EPM1. PWM) Direction:
press "2"
key on TV remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Normal |
1* |
|
|
Reversed |
2 |
*TK80X default Setting |
Turret
rotation/gun traverse EPM( TTK.EPM2 ) Mode:
press "3"
key on IR configuration to
select
|
Available Settings |
Indicator
flashes times |
Description |
|
ESC Mode |
1* |
ESC2 enabled,
PWM2 disabled |
|
PWM Mode |
2 |
ESC2 disabled,
PWM2 enabled
*TK80X
default Setting |
*A Power on and off cycle( turn off power for
5 seconds then power on) is needed to active change after mode change.
Turret rotation servo (TTK.EPM2.PWM)
Direction:
press "4"
key on IR configuration to
select
|
Available Settings |
Indicator
flashes times |
Description |
|
Normal |
1* |
|
|
Reversed |
2 |
|
TTK.EPM4 Mode:
press "5"
key on IR configuration
remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
ESC Mode |
1* |
ESC port
enable, PWM port disable
|
|
PWM Mode |
2 |
ESC port
disable, PWM port enable |
*Available in V2 and above
TTK.EPM4
PWM Direction:
press "7"
key on TV remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Normal |
1* |
|
|
Reversed |
2 |
|
TCK.EPM1 Mode:
press "
1" key
on IR configuration remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
ESC Mode |
1* |
ESC1 enabled, PWM1
disabled |
|
PWM Mode |
2 |
ESC1 disabled, PWM1
enabled |
*A Power on and off cycle( turn off power for
5 seconds then power on) is needed to active change after mode change.
TCK.EPM1.PWM Direction:
press "
2" key
on TV remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Normal |
1* |
|
|
Reversed |
2 |
|
TCK.EPM2.PWM Mode:
press "
3" key
on IR configuration to select
|
Available Settings |
Indicator
flashes times |
Description |
|
ESC Mode |
1* |
ESC2 enabled, PWM2
disabled |
|
PWM Mode |
2 |
ESC2 disabled, PWM2
enabled |
*A Power on and off cycle( turn off power for
5 seconds then power on) is needed to active change after mode change.
TCK.EPM2.PWM Direction:
press "
4" key
on IR configuration to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Normal |
1* |
|
|
Reversed |
2 |
|
Function Page 3
Ultrasonic ESC
start voltage increase:
Select page 3, press
"6" on IR Configuration Remote to increase level,
indicator flash once each time, indicator flash twice when reach maximum level
Ultrasonic ESC
start voltage decrease:
Select page 3 , press
"3" on IR Configuration Remote to decrease level,
indicator flash once each time, indicator flash twice when reach minimun level
Ultrasonic ESC start voltage reset to zero:
Select page 3, press
"DISPLAY" or "?" Key on IR
Configuration Remote to reset start voltage,
indicator flash once every time.
Vertical GBS
enable :
Select page 3, press
"Timer off " Key on IR Configuration
Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Disable |
1 |
No vertical GBS |
|
Enable |
2* |
|
* V3 SW release
Elevation
servo speed reduction :
Select page 3, press
"SLEEP" Key on IR Configuration
Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Enable |
1* |
reduce servo speed to simulate
the elevation speed of real tank |
|
Disable |
2 |
No limitation |
* V3 SW release
GBS LED enable:
press
"TV/VIDEO" or "->[]" Key on IR
Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Enabled |
1* |
|
|
Disabled |
2 |
|
Elevation Sound Mode:
press
"SOUND Mode" Key on IR
Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
ESC Mode |
1* |
Elevation Sound follows ESC, will
not stop until ESC is stopped |
|
Servo Mode |
2** |
Elevation Sound follows servo
movement, stops when reach both end.
Set to this mode when servo
elevation, auto load position and engine deck detection are turned on. |
*Default setting for TK60
**Default setting for TK60G2
Vertical
GBS slow response gain
increase:
Select page 3 , press number
key "1" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Vertical
GBS slow response gain
decrease:
Select page 3 , press number
key "4" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Vertical
GBS fast response gain
increase:
Select page 3 , press number
key "2" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Vertical
GBS fast response gain
decrease:
Select page 3 , press number
key "5" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Vertical
GBS servo angle gain
increase:
Select page 3 , press number
key "8" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Vertical
GBS servo angle gain
decrease:
Select page 3 , press number
key "0" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Engine deck level
increase:
Select page 3 , press
"VOL UP" on IR Configuration Remote to increase level
Engine deck level
decrease:
Select page 3 , press
"VOL Down" on IR Configuration Remote to decrease level
Engine deck level
Function Enable:
Select page 3, press
"MUTE" Key on IR Configuration
Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Disable |
1 |
|
|
Enable |
2* |
|
Engine deck level
detection switch polarity
:
Select page 3, press
"JUMP" Key on IR Configuration
Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Normal Open switch |
1* |
Switch come with TK60G2
|
|
Normal Close switch |
2 |
TAMIYA switch |
Auto Load Position UP:
Select page 3 , press
"CH UP" on IR Configuration Remote to increase level
Auto Load Position
Down:
Select page 3 , press
"CH Down" on IR Configuration Remote to decrease level
Auto Load
Position Function Enable:
Select page 3, press
"POWER" Key on IR Configuration
Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Disable |
1 |
|
|
Enable |
2* |
|
Auto Load Position delay
time:
Select page 3 , press number
key "7" on IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
1 |
1 |
1
second |
|
: |
: |
|
|
8 |
8 |
8
seconds |
V3 software release and
above
Auto Load Position duration:
Select page 3 , press number
key "9" on IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
1 |
1 |
1
second |
|
: |
: |
|
|
16 |
16 |
16
seconds |
V3 software release and
above
Function Page 4
Cannon
Bore evacuator effect Enable:
Select page 4, press
"POWER" Key on IR Configuration
Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
Disable |
1 |
|
|
Enable |
2* |
|
V3.1 software release and
above
Cannon smoke
duration:
Select page 4 , press number
key "7" on IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
1 |
1 |
1
second |
|
: |
: |
|
|
8 |
8 |
8
seconds |
V3.1 software release and
above
Bore evacuator effect duration:
Select page 4 , press number
key "9" on IR Configuration Remote to select
|
Available Settings |
Indicator
flashes times |
Description |
|
1 |
1 |
1
second |
|
: |
: |
|
|
8 |
8 |
8
seconds |
V3.1 software release and
above
Damage level
of Hit taken from back( TCK.CN2):
Select page 4, press "JUMP"
key on IR Configuration Remote to change.
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
No damage. |
|
: |
: |
|
|
4 |
4* |
1 hit taken
form back equal to 4 hit taken |
|
: |
: |
|
|
15 |
15 |
|
Horizontal GBS Enable:
Select page 4 , press " Timer
off
" key on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
Disable |
1 |
|
|
Enable |
2 |
|
Horizontal GBS motor P gain increase:
Select page 4 , press number
key "1" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Horizontal GBS motor P gain
decrease:
Select page 4 , press number
key "4" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Horizontal GBS motor I gain
increase:
Select page 4 , press number
key "2" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Horizontal GBS motor I gain
decrease:
Select page 4 , press number
key "5" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Horizontal GBS motor D gain increase:
Select page 4 , press number
key "3" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Horizontal GBS motor D gain
decrease:
Select page 4 , press number
key "6" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
16 |
17 |
|
Horizontal GBS
sensitive
increase:
Select page 4 , press number
key "8" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
8 |
9 |
|
Horizontal GBS
sensitive decrease:
Select page 4 , press number
key "0" on IR Configuration Remote to increase gain
|
Available Settings |
Indicator
flashes times |
Description |
|
0 |
1 |
|
|
: |
: |
|
|
16 |
17 |
|
|
Status read out and IR battle test via
Configuration IR
Remote |
Point
Configuration IR remote to TBU/HBU and press key listed below to show
vehicle status or test IR battle function.
No jumper should be installed on J1.
|
KEY on IR Configuration
Remote |
Description |
|
Number Key "1" |
To repair vehicle,
damage count decreased by 1 |
|
Number Key "2" |
Fire
cannon to vehicle |
|
Number Key "3" |
Fire machine gun to
vehicle |
|
Number Key "4" |
Number of flash indicate
remain hits
can take |
.
Use dry battery or power supply as
power source at testing to keep burn down anything if any error on modification.
then use chargeable battery when every function working normally.
Read
carefully and fully understand the instructions before commencing assembly.
Metal
part on FET can not be touched with any metal when TK board is operating.
MADE
IN TAIWAN
|
