TK40 Series Tank Gamming Controller

TK40 series RC tank Gamming Controller

World's First integrated RC tank controller with Ultrasonic ESC

THIS IS NOT 100% PLUG AND PLAY BOARD, SIMPLE CHANGE IS NEEDED FOR FULL OPTIONS

(specifications and design are subject to change without notice)

Overview

  • TK40 series controller is the successor of successful TK24 controller, uses 4-CH conventional PWM or 10-CH  S.BUS  RC system to control R/C tank's forward/backward movement, sharp turning, pivoting, turret rotation and gun barrel evaluation at variable speed

  • Ultrasonic ESC*3  for two track motor and turret rotation

  • Carefree reversing

  • Ultra Low turn-on resistance FET for track motor ESC

  • Support Gun Barrel Stabilizer ( G2 Variant )

  • 22KHz, 8-bit high quality sound with digital sound mixer

  • Maximum of 5 channel of sound track, main gun, machine gun, turret rotate, gun barrel elevation and engine sound can be generated at the same time

  • 3W sound output power, 8-Ohm Speaker is recommended

  • 0.8A BEC

  • EPM*2 for gun elevation(EPM1) and turret rotation/gun traverses(EPM2)

  • Wide operating voltage rage, from 7.2 to 12V, support  3S Li-Po battery

  • Support air-soft gun with sound synchronization

  • Support TAMIYA and HL IR battle unit and format

  • Support RealRecoil servo port

  • Support Recoil Solenoid for 2nd Machine Gun( MG2 )

  • G variant Support gun barrel stabilizer

  • Safety shutoff prevents unwanted movement while signal lost

  • Miniature design(60mm X 50mm X 20mm) for 1/25~1/16  R/C Tank

  • V2 Engine Sound Simulation

  • V2 Engine Smoke Simulation

  • Adjustable Low Battery threshold

Terminology

Ultrasonic ESC is the ESC block which switch FET at ultrasonic speed, make motor rotation extreme  smooth and quite. start voltage of ESC can also be adjusted for different type of motor.



Carefree reversing: Unlike some other control board, there is no need for TK series board to delay before being commanded to reverse, can go from full forward immediately to full reverse or vice versa


EPM ( ESC/PWM module) is peripheral which can be switched to ESC or PWM mode, allows the user to drive brushed motor or servo motor, in ESC mode, ESC port is enabled, can be used to drive brushed motor, In PWM mode, PWM port is enabled to driver servo motor, sound effect stopped when servo motor reach end point, TK40 has 2 EPMs for gun elevation(EPM1) and turret rotation/gun traverses(EPM2),



EPM No.

ESC/Ultrasonic ESC port

PWM port

EPM1 5th and 6th Pin of CN9 J4

EPM2

7th and 8th Pin of CN9

Note:ESC in EPM2 is

Ultrasonic ESC

J5



RealRecoil allows you to recreate real gun barrel recoil movement with single & cheap servo motor



Recoil Solenoid allows you to recreate MG/Auto cannon barrel recoil movement with Solenoid



V2 Smoker driver smoker fan/compressor speed is proportional to engine RPM and Load



V2  Mixer turning is achieved by reducing track speed and also increase opposite track speed to achieve smoother turning.



Adjustable Low Battery threshold cut off ESC output when battery voltage is lower than threshold, and threshold can be adjusted according to type and cells





Product Identification System



Device TK40 TK40 series Tank Controller

Variant Blank Standard
  S S.BUS interface
  P Sound Programmable
  A1 105A track current ESC (CN6, CN7)
  G2 Support Gun Barrel Stabilizer
  E Extend Sound effects

Sound Pack T1 Tiger I
  KT King Tiger
  CH2_V1 Challenger 2 ver. 1
  ..... Refer to TK Sound Pack webpage for more information



Variants

Device

TK40ESP

TK40S

TK40

Remote Control System

2.4G RC system with S.BUS

2.4G RC system with S.BUS

2.4G RC system with PWM

Control Scheme 10-CH  S.BUS with extend sound effect control mode: 10-CH  S.BUS PWM 4-CH

User Sound Programmability

YES YES, TK40SP YES, TK40P
Extend Sound Effect YES NO NO

TAMIYA IR battle

Compatible

YES

YES

YES

HL IR battle

Compatible

YES

YES

YES

VsTank IR

battle

Compatible

YES

YES

YES

TAMIYA 1/35 IR battle Compatible

YES

YES

YES

Damage Simulation

on track

YES

YES

YES

 Damage Simulation on turret rotation

YES

YES

YES

Long range IR battle

(>30M)

YES

YES

YES

Engine Start Sound Cold and warm Cold Cold

Engine Sound Simulation

 V2

Multi-Sample-Set,

Frequency Shift and Level,

+ Revving

 V2

Multi-Sample-Set,

Frequency Shift and Level,

+ Revving

 V2

Multi-Sample-Set,

Frequency Shift and Level,

+ Revving

Neutral Gear

YES

YES

YES

Sound set for

specific tank model

YES

YES

YES

Track driver Current

20/60/105A*

20/60/105A*

20/60/105A*

Track driver

Momentum Effect

(Soft start/stop effect)

with ON/Off Control

YES

YES

YES

Turret Rotation Speed Control

YES

YES

YES

Gun Elevation Speed Control

YES

YES

YES

Gun Elevation Servo Port

YES

YES

YES

2nd MG sound and Light effect

YES

YES

YES

*Upper Hull Functions (CN9) Mode is set to MG2 Mode

AirSoft with Sound Synchronization support

YES

YES

TK40P/TK40:YES

TK4PG2:NO

TAMIYA Recoil Unit Support

YES

YES

YES

RealRecoil

YES

YES

YES

Smoker driver

YES

YES

YES

Proportional Smoker driver

V2

proportional to engine

RPM and Load

V2

proportional to engine

RPM and Load

V2

proportional to engine

RPM and Load

Head Light on/off control

YES

YES

YES

Tank Personalization

YES

YES

YES

LED GUN FLASHER Port

YES

YES

YES

Chassis Recoil On/Off

Control

YES

YES

YES

Vertical Gun Barrel Stabilizer

NO

G2 Variant

NO

Turret

Heading-Hold

(Horizontal Gun

Barrel Stabilizer)

NO

G2 Variant

NO

Auto Load Position

NO

G2 Variant

NO

Engine Deck Level Detection

NO

G2 Variant

NO

Kit contained

TK40ESP board*1,

receiver cable*1

TK40SP board*1,

channel cable*4



G2 Variant also include:

GBS unit*1

Engine Deck Switch*1

1.27mm 2P cable *5



TK40 board*1,

channel cable*4

Price

(USD)

TK40ESP:150

TK40SP:150

TK40S:125

TK40SPG2:249

TK40P:150

TK40:125

Release Schedule

Released

Released

Released

* 20A if to connect motor from on-board connector, 60A if hardwire motor to PCB pads, 105A for A1 board



Hardware Variants

Variant Code

Description/Notice/Change/New Features

Release Schedule

-

Standard Specification, 20/60A track current. Class-A audio amplifier

Released

A1

105A track  current ESC (CN6, CN7) Per-Order










Software Revisions

Software

Package

Name

Description/Notice/Change/New Features

Release Schedule

V1

-10-CH S.BUS control scheme,

- UltrasonicHz ESC for track and turret rotation.

- Ver.2 Bootloader

- V2 Smoke driver,  is proportional to engine RPM and engine loading

- V2 mixer, turning is achieved by reducing track speed and also increase opposite track speed to achieve smoother turning.

Released

G2V1

-10-CH S.BUS control scheme,

- UltrasonicHz ESC for track and turret rotation.

- Ver.2 Bootloader

- V2 Smoke driver,  is proportional to engine RPM and engine loading

- V2 mixer, turning is achieved by reducing track speed and also increase opposite track speed to achieve smoother turning.

-Gun Barrel Stabilizer

Released

V2

- AUX1 and Aux 2 Light

- Life counter interface















Boot loader Revisions

Boot Loader is a application, executed in TK board, to handles software update, sound pack programming and setting data update

Version

Description/Notice/Change/New Features

Release Schedule

Ver.2

-Auto Sound pack change detection

-Auto Clean at software update

Released



Accessories

Part Number

Description

Configuration IR REMOTE

For Tank Personalization function

IR005

Std. IR battle emitter kit

IR010

High Power IR battle emitter kit

CAB001

1.25mm pitch cable connector for connecting IR LED or Gun Flash LED

HL Cable Set

Motor Cable *2

Battery Cable *1

Speaker Cable *1

Smoke Unit Cable *1,

Smoke Unit Switch Cable (no switch) *1

8P Inter-connection Cable *1

Volume Control Cable( no VR ) *1

HL Power Cable

One end to TK20, another end to battery, one switch in the middle

IR Programming Line

5P connector with IR receiver & Red LED indicator, and  a 2.54mm-pitch Jumper



TBU BASE

Base and cable to connect TK board to TAMIYA Battle Unit. a 2.54mm-pitch Jumper is included



GBS Unit

Gun Barrel Stabilizer unit



4-CH Conventional PWM mode control scheme

Fire MG:



Head light control on/off

Cannon elevation



Turret rotation



Neutral Gear Shift In/Out :

Track motor does not move when shift to natural gear



Engine sound on/off

Booming Cannon





TK40/TK40P : Fire MG2

TK40PG2: GBS on/off





Tank move forward and backward



Right and  Left turn





10-CH  S.BUS mode control scheme

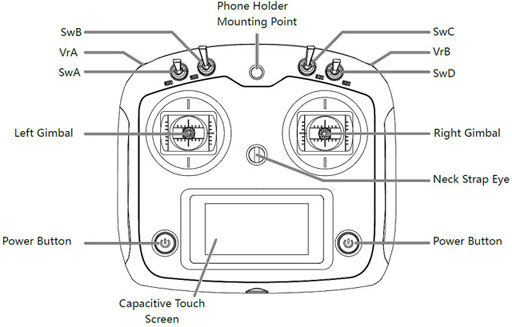

Transmitter: FS-i6S, self-centering VrA and VrB type Radio



RX:FS-iA10B

Receiver to TK40 board connection

Receiver

TK40SP
CH1 No connection
CH2 No connection
CH3 No connection
CH4 No connection
CH5 No connection
CH6 No connection
CH7 No connection
CH8 No connection
CH9 No connection
CH10 No connection
i.Bus SERVO CH1
i.Bus SENS No connection





Layout Command

S.BUS

Channel assignment

Tank Right and  Left turn

CH1 (Stick)

Tank move forward and backward

CH2 (Stick)

Cannon elevation

CH3 (Stick)

Turret rotation

CH4 (Stick)

SwB: Up

SwC: Center -> Up

Natural Gear Shift In/Out

Assign SwB to CH7

Assign SwC to CH8



SwB: UP

SwC: Center -> Down



Engine start/stop

Assign SwB to CH7

Assign SwC to CH8



SwB: Center

SwC: Center -> Up

Aux Light, ex. tail Light, convoy light

Assign SwB to CH7

Assign SwC to CH8



SwB: Center

SwC: Center -> Down

Aux Light 2, ex. Search light

Assign SwB to CH7

Assign SwC to CH8



SwB: Down

SwC: Center -> UP



UP: Smoke Unit  On

DW: Smoke Unit  Off



Assign SwB to CH7

Assign SwC to CH8

SwB: Down

SwC: Center -> Down



Head light On/Off



Assign SwB to CH7

Assign SwC to CH8

SwA

( current )

UP: Smoke Unit  On  also cannon smoke

DW: Smoke Unit  Off



Assign SwA to CH5

SwB

(New )

UP: Turret rotation

DW: Cupola rotation

Assign SwB to CH6

VrA



UP:  Fire Cannon

MID:

DW: Fire MG1



Assign VrA to CH9

VrB

UP:  GBS On/Off ( GBS Version )

MID:

DW: Fire MG2

Assign VrB to CH10





10-CH  S.BUS with extended sound effect mode control scheme

Layout Command

S.BUS

Channel assignment

Tank Right and  Left turn

CH1 (Stick)

Tank move forward and backward

CH2 (Stick)

Cannon elevation

CH3 (Stick)

Turret rotation

CH4 (Stick)

SwB: Up

SwC: Center -> Up

Natural Gear Shift In/Out

Assign SwB to CH7

Assign SwC to CH8



SwB: UP

SwC: Center -> Down



Engine start/stop

Assign SwB to CH7

Assign SwC to CH8



SwB: Center

SwC: Center -> Up

N/A

Assign SwB to CH7

Assign SwC to CH8



SwB: Center

SwC: Center -> Down

Aux Light 2, Ex. Search light

Assign SwB to CH7

Assign SwC to CH8



SwB: Down

SwC: Center -> UP

N/A

Aux Light, Ex. convoy light

Assign SwB to CH7

Assign SwC to CH8

SwB: Down

SwC: Center -> Down



Head light On/Off



Assign SwB to CH7

Assign SwC to CH8

SwA

UP: Smoke Unit  On

DW: Smoke Unit  Off

Assign SwA to CH5

SwB

N/A

Assign SwB to CH6

SwB: Up

VrA



UP:  GBS On/Off ( G2 variant )

MID:

DW: Fire Loader's MG



Assign VrA to CH9

SwB: Center

VrA



UP:  Ext Sound Effect 1

MID:

DW: Ext Sound Effect 2



Assign VrA to CH9

SwB: Down

VrA



UP:  Ext Sound Effect 3

MID:

DW: Ext Sound Effect 4



Assign VrA to CH9

SwB: Up

VrB

UP:  Fire Cannon

MID:

DW: Fire Coaxial MG

Assign VrB to CH10

SwB: Center

VrB

UP:  Ext Sound Effect 5

MID:

DW: Ext Sound Effect 6

Assign VrB to CH10

SwB: Down

VrB

UP:  Ext Sound Effect 7

MID:

DW: Ext Sound Effect 8

Assign VrB to CH10





 Specification

Parameter



Unit

Maximum current of track ESC, connect motor to on-board connector

20

A

Maximum current of track ESC, connect motor to pads on PCB

60

A

Maximum current of track ESC, A1 variant,  connect motor to pads on PCB

105

A

Maximum current of turret and cannon elevation ESC

6

A

Maximum current of Smoker Driver

6

A

Maximum supply voltage

11.4

V

Minimum supply voltage

7.2

V



Pin Assignment Marking

The Pin 1 of each connector is designated by square pad mark



Connector and pin assignments



TK40S/SP/SPG2/ESP S.BUS/S.BUS+GBS version

Connector

Description



Upper Hull Functions (CN9) Mode



Airsoft Tamiya Recoil MG2 Recoil Solenoid

SW

Switch Cable Port

HL tank already have power switch on battery cable path, so additional  switch is no longer required, just to short pins in this port by jumper or connect to a switch cable and keep it switched on.



CN1

Battery Power

1. Battery +

2. Battery -

CN2

Infrared Port

1. HBU/TBU +

2. HBU/TBU SIG

3. HBU/TBU -

4. TBU FLASH LED -

5. TBU FLASH LED +

CN3

Gun Flash Port

1. Battery +

2. Strobe Trigger

3. Battery -

4. AirSoft/Recoil Switch

5. AirSoft/Recoil Switch

1. Battery +

2. Strobe Trigger

3. Battery -

4. TAMIYA Recoil Unit Switch

5. TAMIYA Recoil Unit Switch

1. Battery +

2. Strobe Trigger

3. Battery -

4. Not connected

5. Not connected

CN4

Sound Volume

1. Volume Signal Output ( Wiper pin of VR )

2. Battery -( 1 outside pin of VR )

3. Volume Signal Input ( 1 outside pin of VR )



CN5

Speaker

1. Speaker -

2. Speaker +

CN6

(*x/1)

Ultrasonic ESC1

Connect to left track/steering motor

CN7

(*2/2)

Ultrasonic ESC2

Connect to right track/propulsion motor

CH1

S.BUS RX

1. Battery -

2. +5V

3. Signal

CH2

N/A

1. Not Connected

2. Not Connected

3. Not Connected

CH3

Engine Deck Level Switch Port

1. NO CONNECTION.

2. SWITCH

3. SWITCH

* To close Pin2 and Pin3 when gun barrel travels above engine deck

*Only available on G2 variant

CH4

MG2 LED

Connect to a MG2 LED:

1. N/C

2. LED +

3. LED -

CN9

Upper Hull Functions

( Turn, Lift, Shoot, Light)

1. MG1 LED-

2. Head Light LED-

3. MG1 LED+,

    Head Light LED+ &

    AIRSOFT Motor+

4. AIRSOFT Motor-

5. GUN ELEVATE MOTOR (*0/4)

6. GUN ELEVATE MOTOR*0/4)

7. TURRET MOTOR (*0/3)

8. TURRET MOTOR(*0/3)

1. MG1 LED-

2. Head Light LED-

3. MG1 LED+,

    Head Light LED+ &

   TAMIYA Recoil unit

   green Wire

4. TAMIYA Recoil unit white Wire

5. GUN ELEVATE MOTOR(*0/4)

6. GUN ELEVATE MOTOR(*0/4)

7. TURRET MOTOR(*0/3)

8. TURRET MOTOR(*0/3)

1. MG1 LED-

2. Head Light LED-

3. MG1 LED+,

    Head Light LED+ &

   MG2 Recoil Solenoid+

4. MG2 Recoil Solenoid-

5. GUN ELEVATE MOTOR(*0/4)

6. GUN ELEVATE MOTOR(*0/4)

7. TURRET MOTOR(*0/3)

8. TURRET MOTOR(*0/3)

CN10

(*3/0)

Smoke Unit

Connect to smoke unit

CN11

Smoke Unit Switch

1. SWITCH

2. SWITCH

switch on to enable CN10 port, off to disable CN10















Equivalent circuit of CN10 and CN11

J1

IR Battle Emitter Port

To work with IR battle emitter(IR010)

1. IR LED +

2. IR LED -

J2

(*5)

RealRecoil Servo  Port

RealRecoil Servo Port is always turned ON, no setting is needed to turn it on

1. Signal( White Wire)

2. +5V ( Red Wire)

3. Battery - (Black Wire)

See RealRecoil section in Assembly Guide

J3

Cannon Flash Port

1. Cannon Flash LED +

2. Cannon Flash LED -

J4

(*1/5)

Gun Elevation Servo Port

1. Battery -

2. +5V

3. Signal

J5

(*3/3)

Turret/Gun traverse Servo Port

1. Battery -

2. +5V

3. Signal

J6

Programming and GBS unit Port

To connect TK Programmer or GBS unit

*Head Light LED is also GBS LED during GBS Auto calibration



TK40/TK40P/TK40PG2

Connector

Description



Upper Hull Functions (CN9) Mode



Airsoft Tamiya Recoil MG2/GBS Mode

SW

Switch Cable Port

HL tank already have power switch on battery cable path, so additional  switch is no longer required, just to short pins in this port by jumper or connect to a switch cable and keep it switched on.



CN1

Battery Power

1. Battery +

2. Battery -

CN2

Infrared Port

1. HBU/TBU +

2. HBU/TBU SIG

3. HBU/TBU -

4. TBU FLASH LED -

5. TBU FLASH LED +

CN3

(TK40

TK40P)

Gun Flash Port

1. Battery +

2. Strobe Trigger

3. Battery -

4. AirSoft/Recoil Switch

5. AirSoft/Recoil Switch

1. Battery +

2. Strobe Trigger

3. Battery -

4. TAMIYA Recoil Unit Switch

5. TAMIYA Recoil Unit Switch

1. Battery +

2. Strobe Trigger

3. Battery -

4. MG2 LED+

5. MG2 LED+

CN3

(TK40PG2)

Gun Flash Port

1. Battery +

2. Strobe Trigger

3. Battery -

4. N.A.

5. N.A.

1. Battery +

2. Strobe Trigger

3. Battery -

4. N.A.

5. N.A.

1. Battery +

2. Strobe Trigger

3. Battery -

4. Engine Deck Switch

5. Engine Deck Switch

CN4

Sound Volume

1. Volume Signal Output ( Wiper pin of VR )

2. Battery -( 1 outside pin of VR )

3. Volume Signal Input ( 1 outside pin of VR )



CN5

Speaker

1. Speaker -

2. Speaker +

CN6

(*x/1)

Ultrasonic ESC1

Connect to left track/steering motor

CN7

(*2/2)

Ultrasonic ESC2

Connect to right track/propulsion motor

CH1

Steering control signal

1. Battery -

2. +5V

3. Signal

CH2

Throttle control signal

1. Battery -

2. +5V

3. Signal

CH3

(*2/0)

Multi function control signal 1

1. Battery -

2. +5V

3. Signal

CH4

Multi function control signal 2

1. Battery -

2. +5V

3. Signal

CN9

Upper Hull Functions

( Turn, Lift, Shoot, Light)

1. MG1 LED-

2. Head Light LED-

3. MG1 LED+,

    Head Light LED+ &

    AIRSOFT Motor+

4. AIRSOFT Motor-

5. GUN ELEVATE MOTOR (*0/3)

6. GUN ELEVATE MOTOR

7. TURRET MOTOR (*0/4)

8. TURRET MOTOR(*0/4)

1. MG1 LED-

2. Head Light LED-

3. MG1 LED+,

    Head Light LED+ &

   TAMIYA Recoil unit

   green Wire

4. TAMIYA Recoil unit white Wire

5. GUN ELEVATE MOTOR(*0/3)

6. GUN ELEVATE MOTOR(*0/3)

7. TURRET MOTOR(*0/4)

8. TURRET MOTOR(*0/4)

TK40/TK40P:

1. MG1 LED-

2. Head Light LED-

3. MG1 LED+,

    Head Light LED+ &

   MG2 LED+

4. -> 200ohm->MG2 LED-

5. GUN ELEVATE MOTOR(*0/3)

6. GUN ELEVATE MOTOR(*0/3)

7. TURRET MOTOR(*0/4)

8. TURRET MOTOR(*0/4)



TK40PG2:

1. MG1 LED-

2. Head Light LED-

3. MG1 LED+,

    Head Light LED+

4. Not Connected

5. GUN ELEVATE MOTOR(*0/3)

6. GUN ELEVATE MOTOR(*0/3)

7. TURRET MOTOR(*0/4)

8. TURRET MOTOR(*0/4)

CN10

(*3/0)

Smoke Unit

Connect to smoke unit

CN11

Smoke Unit Switch

Connect to smoke unit switch

Switch on (Short circuit): smoke unit is on

Switch off (Open circuit): smoke unit is off

J1

IR Battle Emitter Port

To work with IR battle emitter(IR010)

1. IR LED +

2. IR LED -

J2

(*5)

RealRecoil Servo  Port

RealRecoil Servo Port is always turned ON, no setting is needed to turn it on

1. Signal( White Wire)

2. +5V ( Red Wire)

3. Battery - (Black Wire)

See RealRecoil section in Assembly Guide

J3

Cannon Flash Port

1. Cannon Flash LED +

2. Cannon Flash LED -

J4

(*1/5)

Gun Elevation Servo Port

1. Battery -

2. +5V

3. Signal

J5

(*3/3)

Turret/Gun traverse Servo Port

1. Battery -

2. +5V

3. Signal

J6

Programming and GBS unit Port

To connect TK Programmer or GBS unit



Installation Guide

Set Upper Hull Functions (CN9) Mode to match your tank hardware configuration (HL AirSoft, TAMIYA Recoil or MG recoil),

Disconnect RX-18 and plug cables to the same connector on TK board,

Set Sound Volume to middle

Install a switch cable (for example, HL Smoke Unit Switch Cable) to SW connector( Switch Cable Port)  as power switch.



Because HL tank already have power switch on battery cable path, so additional switch is not required, just to use a jumper to short pins in SW Cable port or connect a switch cable and keep it switched on.



When high current track motors are used, such as 400/480 motor, power switch on battery cable path will not be able to handle, connect a switch cable (for example, HL Smoke Unit Switch Cable) to this port as power switch.

Connect a recoil servo to J2(Optional),

Rewire Air-soft unit if you want to elevate and depress gun directly, see "HL Gun Elevation and AirSoft Correction" section

(Optional). wire a 2.2 ohm 1/2W (color code: red read gold gold) in-serial resistor to turret rotate, elevation and airsoft motor to limit the current to protect FETs in case motor stall  occured.



Connect channel cables to receiver according to RC mode( See picture "TK series connector and pin assignments" ) . if you are not sure what mode you RC system is, just swap CH2 and CH3 and try again.



TK40 board has BEC( Battery eliminate circuit), can power receiver through channel cables, no additional battery is needed for receiver



Set CH1, 2 and 3 trimmer on transmitter to center position, Set CH4 trimmer on transmitter to most left or right  position,

Connect power adaptor( See FAQ )

Switch on TK board and transmitter, you should hear turret traverse sound. if not, please contact us.

gently move CH4(Multi function control signal 2) trimmer to center till turret traverse is gone.

gently move CH2(Throttle ) trimmer up and down if you hear motor hum sound.

Cannon firing sound should be generated and recoil servo should moves when move CH3 stick to most top position, if not, gently move CH3(Multi function control signal 2 ) trimmer up and down till it work correctly.

You are all set

Disconnect power adaptor and connect battery( make sure that battery is fully charged).





Installation Video Guide on Internet:

https://www.youtube.com/watch?v=_eIRTIMyl2g



S.BUS setup

Transmitter:

1.Turn on Transmitter i6s and enter setting function, go to system->output mode, than set Serial to S.BUS

2. Enter aux channel setup, set channel 5 to SwA, channel 6 to SwD, channel 7 to SwB, channel 8 to SwC, channel 9 to VrA and channel 10 to VrB

3. Go to system->stick mode, then set to M1 mode

4. Go to end points page, set end point to 100% for every channel.



Receiver and control board:

1. Plug connector with S.BUS label on it into S.BUS port on receiver.



 Recoil Unit Installation

TAMIYA recoil unit installation( set Upper Hull Functions (CN9) Mode: to TAMIYA RECOIL MODE )

STEP1. disconnect white and blue wire from recoil unit switch( see arrow in yellow), add cable connector to recoil switch( see arrow in red ), left green-white-blue cable not touched ( see arrow in green)

STEP2. green wire and white wire in green-white-blue cable goes to 3rd pin on CN9 and 4th pin on CN9(see arrow in green), black and red wire in red-black cable goes to 4th and 5th pin on CN3(see arrow in red).





HL recoil unit installation:

STEP1. Set Upper Hull Functions (CN9) Mode: to HL Recoil MODE,

STEP2. Connect detection SW( Pressed-to-Short type ) to 4th and 5th pin on CN3 or via the plug (Yellow and brown wire) from  HL HIGH-TENSION FLASHER. Latest released HL recoil unit already has detection switch on it.

STEP3. connect motor - to 4th pin on CN9.connect motor + to 3rd pin on CN9.

Asiatam recoil unit installation:

STEP1. Set Upper Hull Functions (CN9) Mode: to Asiatam Recoil Mode

STEP2. Connect  Recoil motor + to 3rd pin on CN9.connect motor - to 4th  pin on CN9.

STEP2. Connect detection SW to 4th and 5th pin on CN3 or via  the plug (Yellow and brown wire) from  HL HIGH-TENSION FLASHER







Gun Barrel Stabilizer(GBS) overview and installation

GBS is an optional module of TK60. When GBS is turned on, it detects the tank movement and compensate gun rotation and elevation to stabilize the gun automatically. When GBS is turned on, operator can still change gun elevation and direction under GBS compensation, GBS have the following features:



- 2-axis gun stabilization in turret rotation and gun elevation.

- Fully programmable gun elevation real angle calculator allows GBS to work with different elevation setup,

- Fully programmable turret motor controller allows GBS to work with different motor/gear box setup,

- Engine deck detection, gun raise automatically when gun travels above engine deck,

- Auto reload position, Gun barrel goes to to reload position after fire, and return to last position when reload when reload time expired,

- Adjustable Engine deck level,

- Adjustable auto reload position,

- Gun barrel momentum effect,

- GBS unit dimensions: 20 x 16 x 3mm.



Servo for GBS -

-Control System: +Pulse Width Control 1520usec Neutral
-Required Pulse: 3-5 Volt Peak to Peak Square Wave
-Operating Voltage: 4.8-6.0 Volts

-Operating Angle: 45 Deg. one side

Power on GBS calibration - When power on TK60G2, GBS starts a reset process and must be kept stationary.



Head Light LED is turned ON during GBS calibration and you must not to move the tank during calibration. The GBS are very sensitive and you should not touch or vibrate the GBS during power on reset. The process will take around 2 seconds. Head Light LED will be turned off when calibration completed.

An in-series 200-ohm resistor is needed for GBS LED



Mounting of GBS - The GBS unit must be mounted securely and horizontally on the turret, here is an example, first to use Tamiya 5mm square beam, cut into 5~6mm in length, make 1.6mm hole, then glue to turret floor by cement

Bolt GBS unit with the screws came with GBS unit, and plug connector to J6 port on TK60G2, Length of GBS cable can not exceed 80mm or TK60G2 may miss reading GBS.

For accurate motion detection, it must be kept within 5 degree with turret base plate. mounting directions is as shown in following picture. Servo for elevation is Futaba S3003 in this setup.

Recommended GBS mounting position for Leopard 2



Turning GBS on/off - GBS can be turned on/off by Gun Barrel Stabilizer on/off  commanded, you can also hear click sound when turn it on and off



Adjusting gun elevation angle - The gun elevation V gain setting is used to adjust the amount of gun elevation servo angle to meet different mechanical setup. adjusting procedures are



-First to put TK60G board in IR programming mode.

-Turn GBS on and moves the gun barrel to horizontal position.

-Tilt the tank for 15-20 degree.

-Use IR configure remote to adjust servo gain value until the gun is horizontal again.

-Power off TK60G board, remove jumper and turn power again to leave IR programming mode.



Adjusting gun elevation angle calculator gains - The angle calculator's fast gain and slow gain settings are used to adjust the angle calculation, adjusting procedures are



-First to put TK60G2 board in IR programming mode.

-Turn GBS  on and moves the gun barrel to horizontal position.

-Tilt the tank for 10-20 degree.

-Rotate turret in various speed ( from low to full speed), if elevation speed is too slow, increase slow gain a bit, otherwise, reduce slow gain,

-rotate turret to 12 o'clock position, tilt the tank hull about 15-20 degree in various speed, if elevation speed is too slow, can not keep up tank hull tilt speed, increase fast gain a bit, if elevation moves faster the hull tile speed and over the position it should be (overshoot), decrease fast gain a bit

-Power off TK60G2 board, remove jumper and turn power again to leave IR programming mode.



Adjusting turret rotation motor control gains -Turret rotation motor P , I  and D gain are used to meet the characteristic of turret rotate motor and design on your tank. adjusting procedures are as the following.



-First to put TK60G2 board in IR programming mode.

-Turn GSU on

-Rotate tank hull from stationary to low speed, if turret motor does not start as quick as tank hull rotation, increase I gain a bit, if turret motor runs too fast (overshoot) , decrease I gain a bit.

-Rotate tank hull in various speed( low, middle and full) , if turret rotation speed is too slow, can't keep up hull rotation, increase P gain, otherwise, reduce speed gain,

-Stop tank hull rotation from various speed, if turret stops too early, decrease D gain, if turret stops too late increase D gain.



 Tank Personalization( Patent Pending)

Settings of TK series board can be changed by a IR configuration remote as IR command transmitter, and TAMIYA battle unit(TBU),  Heng-Leog battle unit(HBU), or our IR configuration line as IR command receiver.



Steps to change settings:

STEP 1: Turn power off, Turn power off, Turn power off,

STEP 2: Plug programming line/TBU/HBU through TBU/HBU base into CN2 Infrared Port ,

STEP 2: Install a jumper to J2 as shown below, Turn power on,

STEP 4:Refer to function table listed below, point IR configuration remote to TBU/HBU/Programming line receiver, and press the button of setting that you want to change,  "*" sign in function table means the default setting that is programmed in factory

STEP 5: Indicator on TBU/HBU flashes according to new setting value.

STEP 6: turn power off, remove jumper on J2, then turn power on and TK board runs with new settings.



Type of Tank determines Battle Date when doing IR battle( See Variants section )

Type of Tank

Tank Mobility, Turret rotation and Gun barrel evaluation speed

 vs.

Hit taken

Damaged

State

Badly Damaged

State

Destroyed

State

Heavy Tank*

1~4 hits taken

5~8 hits taken

9 hits taken

Medium Tank

1~3 hits taken

4~5 hits taken

6 hits taken

 Light Tank

1 hit taken

2 hits taken

3 hits taken

HL Tank

1~2 hits taken

(Note)

3~4 hits taken

(Note)

5 hits taken

Note: HENG-LONG TANK doesn't have Damaged State and Badly Damaged State. speed reduction can be turned off by Speed reduction in damage state and Speed reduction in badly damaged state function.



Type of Tank

Reload Time

Recovery Time

Invulnerability time

Heavy Tank*

9 sec.

15 sec.

10 sec.

Medium Tank

5 sec.

15 sec.

12 sec.

 Light Tank

3 sec.

15 sec.

15 sec.

HL Tank

3 sec.(Note)

15 sec.

10 sec.(Note)

Note: Suggested Value, can be changed by Reload Time and Invulnerability time setting function



Function tables:

Save current setting to PRESET 1: Press number key "1" on IR Configuration Remote to save,

Available Settings

Indicator

flashes times

Description

Save to PRESET 1

1

Indicator flashes when setting is saved



Save current setting to PRESET 2: Press number key "2" on IR Configuration Remote to save,

Available Settings

Indicator

flashes times

Description

Save to PRESET 2

2

Indicator flashes when setting is saved

*Once you've adjusted everything, you can push "1" or "2" to save current setting to PRESET 1 or 2. If you don't do this saving the board remembers the last settings.



Use saved settings: Press "ENT" or "SOUND MODE" Key on IR Configuration Remote to select.

Available Settings

Indicator

flashes times

Description

Use PRESET 1 setting

1



Use PRESET 2 setting

2



Use Factory Default Setting

( Read-Only )

3

To restore factory default value in case of setting data is messed up.

*To switch between the presets you press either "sound mode" or "enter" button, once the preset is selected, switch tank off and remove setup jumper. Switch back on and away you go.



Mixer Mode: Press  (MUTE) key on IR Configuration Remote to select.

Available Settings

Indicator flashes times

Description

Mixer Mode 1

1*

Tank mode 1

CH1 controls rudder, CH2 controls throttle.

Proportional steering, sharp and pivot turn* are supported

Left Track

Right Track

Pivot

Turn

Sharp

Turn

Proportional

Steering

Proportional

Steering

Sharp

Turn

Pivot

Turn



Mixer Mode 2

2

OFF mode

CH1 controls left track, CH2 controls right track



When using triple differential gear box,

CH1 controls steering motor(CN6),

CH2 controls propulsion motor(CN7)

Mixer Mode 3

3

Tank mode 2

CH1 controls rudder, CH2 controls throttle,

Proportional steering and sharp turn are supported

Left Track

Right Track

Sharp

Turn

Proportional

Steering

Proportional

Steering

Sharp

Turn



Mixer Mode 4

4

Half-Track mode

CH1 controls rudder, CH2 controls throttle,

Support proportional steering only.

Max. turn ratio ( speed ratio of left and right track at hard left and right turn) can be configured form large (4) to small (8)

Left Track

Right Track

Proportional

Steering

Proportional

Steering



Mixer Mode 5

5

Mixer Mode 6

6

Mixer Mode 7

7

Mixer Mode 8

8

*pivot turn is also named as super spin.



Mixer Mode: Press  (MUTE) key on IR Configuration Remote to select( S.BUS version: TK40S, TK40SP )

Available Settings

Indicator flashes times

Description

Mixer Mode 1

1*

Tank mode 1

CH1 controls rudder, CH2 controls throttle.

Proportional steering, sharp and pivot turn* are supported

Left Track

Right Track

Pivot

Turn

Sharp

Turn

Proportional

Steering

Proportional

Steering

Sharp

Turn

Pivot

Turn



Mixer Mode 2

2

OFF mode

CH1 controls left track, CH2 controls right track



When using triple differential gear box,

CH1 controls steering motor(CN6),

CH2 controls propulsion motor(CN7)

Mixer Mode 3

3

 Triple differential gear box simulation mode

(World of Tank Mode )



CH1 controls rudder, CH2 controls throttle.

Left track speed = Throttle - rudder

Right track speed = Throttle + rudder

Mixer Mode 4

4

Tank mode 2

CH1 controls rudder, CH2 controls throttle,

Proportional steering and sharp turn are supported

Left Track

Right Track

0%

Turn

Proportional

Steering

Proportional

Steering

0%

Turn



Mixer Mode 5

5

Half-Track mode 1

CH1 controls rudder, CH2 controls throttle,

Left Track

Right Track

50%

Turn

Proportional

Steering

Proportional

Steering

50%

Turn



Mixer Mode 6

6

Half-Track mode 2

CH1 controls rudder, CH2 controls throttle,

Left Track

Right Track

75%

Turn

Proportional

Steering

Proportional

Steering

75%

Turn



Mixer Mode 7

7

NA,Do not select this mode

Mixer Mode 8

8

NA,Do not select this mode



Mixer Mode: Press  (MUTE) key on IR Configuration Remote to select( S.BUS GBS version: TK40SPG2 )

Available Settings

Indicator flashes times

Description

Mixer Mode 1

1*

Tank mode 1

CH1 controls rudder, CH2 controls throttle.

Proportional steering, sharp and pivot turn* are supported

Left Track

Right Track

Pivot

Turn

Sharp

Turn

Proportional

Steering

Proportional

Steering

Sharp

Turn

Pivot

Turn



Mixer Mode 2

2

OFF mode

CH1 controls left track, CH2 controls right track



When using triple differential gear box,

CH1 controls steering motor(CN6),

CH2 controls propulsion motor(CN7)

Mixer Mode 3

3

 Triple differential gear box simulation mode

(World of Tank Mode )



CH1 controls rudder, CH2 controls throttle.

Left track speed = Throttle - rudder

Right track speed = Throttle + rudder

Mixer Mode 4

4

NA,Do not select this mode

Mixer Mode 5

5

NA,Do not select this mode

Mixer Mode 6

6

NA,Do not select this mode

Mixer Mode 7

7

NA,Do not select this mode

Mixer Mode 8

8

NA,Do not select this mode



Upper Hull Functions (CN9) Mode: Press "POWER" key on IR Configuration Remote to select

Note: Available Setting is ALWAYS from TAMIYA Recoil MODE when power is applied, then go to HL Airsoft Mode( indicator flashes 2 times) when POWER key is pressed first time, It does not means that the selected setting before power off is not saved.

Available Settings

Indicator

flashes times

Description

TAMIYA Recoil MODE*

1*

To use TAMIYA recoil unit:

CN3, Pin4:TAMIYA Recoil Unit Switch

CN3, Pin5:TAMIYA Recoil Unit Switch

CN9, Pin3:TAMIYA Recoil Unit green Wire

CN9, Pin4:TAMIYA Recoil Unit white Wire

HL AirSoft MODE

2

To use HL AirSoft:

CN3,Pin4:HL AirSoft Unit Switch

CN3,Pin5:HL AirSoft Unit Switch

CN9,Pin3:HL AIRSOFT Motor +

CN9,Pin4:HL AIRSOFT Motor -

Asiatam Recoil Mode

3

CN3,Pin4:Asiatam Recoil Switch

CN3,Pin5:Asiatam Recoil Switch

CN9,Pin3: Asiatam Recoil Motor +

CN9,Pin4: Asiatam Recoil Motor -

MG2 LED/ Recoil Solenoid Mode

4

CN3,Pin4:NC

CN3,Pin5:NC

CN9,Pin3: LED +/Recoil Solenoid

CN9,Pin4: LED -/Recoil Solenoid

AUX POWER CONTROL MODE

5

CN3,Pin4:Not connected

CN3,Pin5:Not connected

CN9,Pin3: Device +

CN9,Pin4: Device -

*Voltage of CN9 Pin 3 is equal to battery voltage

Servo Recoil Only MODE

6

CN3, Pin4:No function

CN3, Pin5:No function

CN9, Pin3:No function

CN9, Pin4:No function

Reserved

6

Reserved

7

Reserved

8





Receive TAMIYA IR Code: press "TV/VIDEO" or "->[]" Key on IR Configuration Remote to select

Available Settings

Indicator

flashes times

Description

Enabled

1*

Tank react to TAMIYA IR code

Disabled

2





Receive HL IR Code: press "VOL DOWN"  Key on IR Configuration Remote to select

Available Settings

Indicator

flashes times

Description

Enabled

1*

Tank react to HL  IR code,

Disabled

2





IR Battle Preset Data: press  "MTS" or "A/B" Key on IR Configuration Remote to select

Available Settings

Indicator

flashes times

Description

TAMIYA Heavy tank

1*

Reload Time = 9 seconds,

Invulnerability time = 10 seconds,

Max. hit can take = 9 hit.

TAMIYA Medium tank

2

Reload Time = 5 seconds,

Invulnerability time = 12 seconds,

Max. hit can take = 6 hits

TAMIYA Light  tank

3

Reload Time = 3 seconds,

Invulnerability time = 15 seconds,

Max. hit can take = 3 hits.

Heavy Armored Vehicle

4

Invulnerability time = 10 seconds,

Max. cannon hit cam take = 1 hit

Max. machine gun hit can take = 24 hit.

Medium Armored Vehicle

5

Invulnerability time = 10 seconds,

Max. cannon hit can take = 1 hit

Max. machine gun hit can take = 16 hit.

Light Armored Vehicle

6

Invulnerability time = 10 seconds,

Max. cannon hit can take = 1 hit

Max. machine gun hit can take = 8 hit.

HL tank

7

Reload Time = 3 seconds,

Invulnerability time = 10 seconds(Note1)

Max. hit can take = 5 hits,

Reserved

8



Note1: Reference setting for HL Tank

Momentum effect On/Off: Press "SLEEP(0x36)" or "" on IR Configuration Remote to select

Available Settings

Indicator

flashes times

Description

Off

1*



ON

2



Reload Sound On/Off: Press "Timer Off(0x3C)" or " "on IR Configuration Remote to select

Available Settings

Indicator

flashes times

Description

On

1*



Off

2





Taking a hit hull recoil On/Off: Press "JUMP(0x3B)" on IR Configuration Remote to select

Available Settings

Indicator

flashes times

Description

On

1*



Off

2





Strength of taking a hit hull recoil: Press "CH Up" or "PROGR +" key on IR Configuration Remote to select

Available Settings

Indicator

flashes times

Description

1

1

Small( 1 ) to Large( 16 )movement

:

:

6

6*

:

:

16

16



Firing tank gun hull recoil On/Off: Press "SURROUND(0x29)" on IR Configuration Remote to select

Available Settings

Indicator

flashes times

Description

On

1*



Off

2





Strength of firing tank gun hull recoil: Press "VOL UP" key on IR Configuration Remote to select

Available Settings

Indicator

flashes times

Description

1

1

Small( 1 ) to Large( 16 )movement

:

:

6

6*

:

:

16

16



RealRecoil servo direction: press "CH down" or "PROGR -" key on IR Configuration Remote to select

Available Settings

Indicator

flashes times

Description

Normal

1*



Reversed

2





Speed reduction in damaged state: press "3" key on IR Configuration Remote to select.

Available Settings

Indicator

flashes times

Description

-6.25%

1



-12.5%

2*



-18.75%

3



-25%

4



-31.25%

5



-37.5%

6



-43.75%

7



-50%

8





Speed reduction in badly damaged state: press "(?)","DISPLAY" or "DRC-MF" key on IR Configuration Remote to select.

Available Settings

Indicator

flashes times

Description

-6.25%

1



-12.5%

2



-18.75%

3



-25%

4*



-31.25%

5



-37.5%

6



-43.75%

7



-50%

8





Armor type: press number key "9" on IR Configuration Remote to select

Available Settings

Indicator

flashes times

Description

Heavy Armor

1*

Resistance to machine gun

Soft skin, like Trucks

2

No resistance to machine gun



Sending IR code when firing  machine gun: press number key "6" on IR Configuration Remote to select

Available Settings

Indicator

flashes times

Description

Not to send MG IR code

1*



To send MG IR code

2





Primary weapon reload time: press number key "4" on IR Configuration Remote to select

Available Settings

Indicator

flashes times

Description

3 seconds

3



4 seconds

4



5 seconds

5



6 seconds

6



7 seconds

7



8 seconds

8



9 seconds

9*



10 seconds

10



11 seconds

11



12 seconds

12



13 seconds

13



14 seconds

14



15 seconds

15





Rounds of Primary weapon: press number key "8" on IR Configuration Remote to select,

Available Settings

Indicator

flashes times

Description

Not limited

1*



8 rounds

2



16 rounds

3



24 rounds

4



32 rounds

5



40 rounds

6



48 rounds

7



56 rounds

8



64 rounds

9



72 rounds

10



80 rounds

11



88 rounds

12



96 rounds

13



104 rounds

14



112 rounds

15



120 rounds

16





Primary weapon IR code: press number key "0" on IR Configuration Remote to select

Available Settings

Indicator

flashes times

Description

TAMIYA cannon code

1*

For TAMIYA IR battle

HL cannon code

2

For HL IR battle

Repair code

3

For Bergepanzer application,

damage count decreased by 1 when this IR code is received, each repair needs 15s, no other vehicle can damage vehicle that is under this mode

Machine Gun code

4

Vehicle with MG



Invulnerability time: Vehicle is Invulnerable during this period, press number key "7" on IR Configuration Remote to select

Available Settings

Indicator

flashes times

Description

Vehicle can not be recovered from destroyed mode

1



1 second

2



2 seconds

3



3 seconds

4



4 seconds

5



5 seconds

6



6 seconds

7



7 seconds

8



8 seconds

9



9 seconds

10



10 seconds

11*

TAMIYA Heavy tank

11 seconds

12



12 seconds

13

TAMIYA Medium tank

13 seconds

14



14 seconds

15

TAMIYA Light tank

15 seconds

16





Max hit can take: Press  number key "5" on IR Configuration Remote to select

Available Settings

Indicator

flashes times

Description

1 round

1



2 rounds

2



3 rounds

3

TAMIYA Light tank

4 rounds

4



5 rounds

5



6 rounds

6

TAMIYA Medium tank

7 rounds

7



8 rounds

8



9 rounds

9*

TAMIYA Heavy tank

10 rounds

10



11 rounds

11



12 rounds

12



13 rounds

13



14 rounds

14



15 rounds

15





Function Page Selection: Press "-/--" Key on IR Configuration Remote to select.

Available Settings

Indicator

flashes times

Description

Select settings on Page 1

1*

TK board goes back to this page after power on

Select settings on Page 2

2



Select settings on Page 3

3



Select settings on Page 4

4



*Text in black means that setting function is on page1.



Function Page 2

Gun elevation EPM (EPM1) Mode: press " 1" key on IR configuration remote to select

Available Settings

Indicator

flashes times

Description

ESC Mode

1*

ESC1 enabled, PWM1 disabled

PWM Mode

2

ESC1 disabled, PWM1 enabled

*A Power on and off cycle( turn off power for 5 seconds then power on)  is needed to active change after mode change.



Gun elevation servo( PWM1) Direction: press " 2" key on TV remote to select

Available Settings

Indicator

flashes times

Description

Normal

1*



Reversed

2





Turret rotation/gun traverse EPM(EPM2) Mode: press " 3" key on IR configuration to select

Available Settings

Indicator

flashes times

Description

ESC Mode

1*

ESC2 enabled, PWM2 disabled

PWM Mode

2

ESC2 disabled, PWM2 enabled

*A Power on and off cycle( turn off power for 5 seconds then power on)  is needed to active change after mode change.



Turret rotation servo (PWM2) Direction: press " 4" key on IR configuration to select

Available Settings

Indicator

flashes times

Description

Normal

1*



Reversed

2





Low Battery threshold : press " 0" key on IR configuration remote to select, when detected battery voltage lower than setting, ESC output will be reduced.

Available Settings

Indicator

flashes times

Description/Battery Type

Reserved

1



6V

2

Li-Ion 2S 7.4V

Li-Po 2S 7.4V

Li-Fe  2S 6.6V

Ni-Cd 6S 7.2V

Ni-Mh 6S 7.2V

6.4V 3

Li-Ion 2S 7.4V

Li-Po 2S 7.4V

Li-Fe  2S 6.6V

Ni-Cd 8S 8.4V

Ni-Mh 6S 7.2V

6.8V 4*

Li-Ion 2S 7.4V

Li-Po 2S 7.4V

7.5V 5

Li-Ion 3S 11.1V

8V 6

Ni-Mh 8S 8.4V

9V 7

Li-Po 3S 11.1V

Reserved

8





Engine Sound Throttle input select: press " SOUND MODE" key on IR configuration remote to select

Available Settings

Indicator

flashes times

Description

CH2

1*

Engine sound module only refer to CH2

CH1 and CH2

2

Engine sound module refer to CH1 and CH2



Ultrasonic ESC1 (CN6)  input select: press "CH UP" key on IR configuration remote to select

Available Settings

Indicator

flashes times

Description

CH1

1*

When mixer is set to OFF mode

CH1 controls steering motor(CN6)

CH2 controls propulsion motor(CN7)

CH2

2

When mixer is set to OFF mode

CH2 controls both steering motor(CN6)

propulsion motor(CN7)



Can be used in twin motor application, such as truck



Firing tank gun hull recoil On/Off: Press "POWER" on IR Configuration Remote to select

Available Settings

Indicator

flashes times

Description

On

1*



Off

2





Use saved settings: Press "MUTE Key on IR Configuration Remote to select.

Available Settings

Indicator

flashes times

Description

Use PRESET 1 setting

1



Use PRESET 2 setting

2



Use Factory Default Setting

( Read-Only )

3

To restore factory default value in case of setting data is messed up.

*To switch between the presets you press either "sound mode" or "enter" button, once the preset is selected, switch tank off and remove setup jumper. Switch back on and away you go.



Software Version: press "(?)","DISPLAY" or "DRC-MF" key on IR Configuration Remote to select.

Version number

Indicator

flashes times

Description

Version 1

1*



Version 2

2


: :





Function Page 3

Ultrasonic ESC start voltage increase: Select page 3, press  "3" on IR Configuration Remote to increase level, indicator flash once each time, indicator flash twice when reach maximum level



Ultrasonic ESC start voltage  decrease: Select page 3 , press  "6" on IR Configuration Remote to decrease level, indicator flash once each time, indicator flash twice when reach minimun level



Ultrasonic ESC start voltage reset to zero: Select page 3, press "DISPLAY" or "?" Key on IR Configuration Remote to reset start voltage, indicator flash once every time.



Status read out and IR battle test by IR configuration remote

Point Configuration IR remote to TBU/HBU and press key listed below to show vehicle status or test IR battle function. No jumper should be installed on J1.



KEY on SONY IR Configuration Remote

Description

Number Key "1"

To repair vehicle, damage count decreased by 1

Number Key "2"

Fire cannon to vehicle

Number Key "3"

Fire machine gun to vehicle

Number Key "4"

Number of flash indicate remain hits can take







FAQ



Q: My TK board can not  register a hit from Tamiya tank.

A: To check "Receive Tamiya IR code" setting. TK board  won't response Tamiay IR code when this setting is disabled.



Q: The airsoft motor does not run until after the gun fire sound has played and the reload sound has happened. I want the airsoft motor to run while the gun sound plays. I also planned to make recoil work with the airsoft…but when I fire the gun, the recoil servo operates in time to the sound…but has returned to the normal position when the airsoft motor operates.
A: Just need to set Main Gun Function Mode to AirSoft mode, then cannon sound, servo recoil and airsoft unit will be synchronized.



Q: I already set Main Gun Function Mode to HL AirSoft MODE, but AirSoft motor does not run when I give fire cannon command.

A:To correct airsoft unit wiring as HL Gun Elevation and AirSoft Correction section mentioned.



Q: Airsoft unit fires continuously and have no cannon sound.

A: When main Main Gun Function Mode is configured to AirSoft Mode, TK board start to drive AirSoft motor (thought CN9 3rd &4th pin) when fire cannon command is received. when Airsoft just fired, Airsoft switch is closed , TK board knows it thought  CN3  Pin4 & Pin5. and then stop to drive Airsoft Motor and start to generate cannon. So in order to make it works properly,  AirSoft motor need to be connected to CN9 pin3 and pin4. AirSoft switch connector to CN3  Pin4 & Pin5.

You can simply test it by a tweezers, to short and release it will stop AirSoft motor.



Q: How to avoid damage that caused by short circuit to the board?
A: Damage can be prevented by using a current limited power adaptor as power source, first to find a ~6V, 400mAh power adaptor, 1K 1/4W ohm resistor, LED and a motor cable(from HL cable Set)

then connect + wire(with white strip) from adaptor to red wire of HL cable, - wire to black wire of HL cable, adn wire resistor and LED as the following to act as indicator.

Each time, when you did some modification on circuit or after installation, use this as power source fist. plug connect each by each, and LED will be dimmed immediately if any shortage in circuitry and not thing on TK board will be damaged because power can only supply low & limited current.



The board might be act very strange when it's power by this, such as motor can not moves will, cannon fired unexpectedly when turret rotation sound comes up, these are quite normal because current is not enough.



Q: How to interface TK board to 6W external sound booster(amplifier)
A: This picture shows the pin assignment of external 6W amplifier, in this example, Battery + & Battery - are power input pin, SIN+ and - is for audio signal input,  SPK+ and - is speaker port

First to disconnect black wire from HL Volume control board and isolate it with tape, wire a 2-P, 2.54mm pitch connector wire to Volume control board as shown below

Then to power amplifier by battery

Finally, connect power form TK board to Battery+ & Battery - pin, connect 2-P, 2.54mm pitch connector wire SIG+ and SIG-,and then connect sparker to SPK+ and SPK- pin.



Here is pin assignment of another type 6W AMP, just refer to the above and wire pins with same pin assignment.



Generally, higher the input power, higher the sound output power on speaker, so we can also use a DC-to-DC voltage booster to convert battery voltage into higher voltage, then to drive external audio amplifier to have more solid and powerful sound,



Because output ripple is much lower after DC-to-DC conversion, so this can also reduce  motor "humm" sound during motor start up and at low speed. another benefit of this configuration is that you can use 8-ohm speaker but still have good loudness. In the example below, we use an adjustable DC-to-DC voltage booster to convert battery voltage into 12V.



Step 1: first to connect AMP to TK board and battery as describe previous and make sure it sounds correctly,

Step 2: connect DC-to-DC voltage booster to battery only, measure the output voltage, if voltage is higher or less than 12V, adjust VR on it till output voltage is around 12V,
Step 3: disconnect AMP from battery power then connect to the output of
DC-to-DC voltage booster.



HINT: use VR pointed by black arrow in this diagram to adjust voltage to 12V before powering amplifier

Wiring diagram for 15W amplifier: Use VR on DC/DC converter to set output voltage to 15V

Q: When I move left stick backward, only the right track goes backward the left track does not move, It is possible I crossed the +positive and --negative terminals when connecting the new motors?
A: Yes, when +positive and --negative terminals are crossed, one of terminal will burn out immediately, you can bend FETs a little bit to check these traces, one of them should be broken. you can reconnect it by soldering to fix the problem.

We recommend that to use power adapter(7.2V, 400mAh) as power source after rewiring. then switch to battery when everything are tested OK.



Q: Tank hull recoil movement direction is not correct, moves forward and then backward while firing main gun.
A: Just need to swap motor cables, CN6 to Motor Right, CN7 to Motor Left, and turn on servo reverser function on throttle channel from radio transmitter.



Q: All function runs but just no sound!!

A: This can be the common issue on HL Volume Control board, just to short outer pins of CN4 with tweezers to verify it. if  sound comes out when doing this, the HL volume control board is broken.

Q: Do I need noise filtering capacitor on motor

A: Yes, it's needed to prevent back EMF to interference TK20 board. All HL stock tank already have it on motors

This type of capacitor is not good, DO NOT USE!



Q: What's the IR battle range of TK20

A:

The table below shows the test result we've done here or from customer site,

IR Transmitter

IR Receiver

Board Version

Test result

 Test environment

HL Original IR LED

HL Battle Unit

TK20/22

13M

Outdoor

IR010

TAMIYA Battle Unit

TK20/22

>30M

Outdoor



Q:Tank moves backward faster than forwards and does not turn. It only turn if firstly turn steering stick and secondly throttle stick.

A: To turn off mixer on transmitter and test again.



Q: Can get motor sounds, cannon sounds, turret sounds, but no motion on either drive motors or turret rotation gearbox

A:  Check if battery voltage is too low, auto cutoff function cuts motor off when battery voltage is too low.



Q: What is Mixer

A: A piece of software that converts Rudder and Throttle control signal to Left and Right track speed signal. All TK board has mixer on it, mixer function on RC transmitter need to be turned off.



Q: What is Safety shutoff:

A: Controller cuts motor off and waits signal come back.



Q: What is Auto cutoff:

A: The motor cutoff will occurred when battery input drops below minimum supply voltage of controller.



Q: Which RC system can works with TK board:

A: Basically, TK can work with all kind of aftermarket RC system as long as it's PWM system, here is a table list most popular one.

Brand

Band

Model Number

Result

Futaba

72M

T4VF

OK

Futaba

27M AM

4WD

OK

Futaba

2.4G

T4YF-2.4G

OK

TURNIGY

2.4G

9X

OK

Spektrum

2.4G

OK

PLANET

2.4G

OK

FlySky

2.4G

FS-CT6B

OK

( Need to turn mixer function on transmitter off )

Hobby King

2.4G

HK T6A

OK

Perfex

2.4G

M24-H radio

OK

Tactic TTX

TTX series

OK

JR

27M

OK



Q: Audio Amp thermal protection:

A: that turns off device when junction temperature over 150 degree C to prevent damage



Q: Is it possible to make additional settings using existing IR signals for example to make HL IR signal and 9 hits can take, originally 5 hits?

A: yes,  IR code to receive, IR code to transmit, preset & battle data can be set independently.



Q: Is it possible to set setting with other device (not SONY IR code remote)?

A: Only Sony IR code remote can be used, you can also have universal remote and configure it to SONY mode.



Q: Any Other SONY remote, such as SONY Bravia unified IR Configuration Remote, can config TK20?
A: Can't sure, with more and more setting function are added, some code not common on every remote are used. so we suggest to use same remote as we use.



Q: What's BEC

A: BEC stands for battery elimination circuit. This circuit powers the receiver thought channel cable, no secondary battery source is required.



 Precaution

 Use dry battery or power supply as power source at testing to keep burn down anything if any error on modification. then use chargeable battery when every function working normally.

Read carefully and fully understand the instructions before commencing assembly.











MADE IN TAIWAN
