LNSII  Light and Sound Module II



Hop up options LNS series

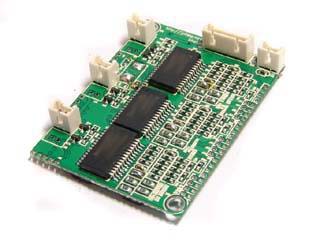

LIGHT & SOUND MODULE: add-on electronics to CSCII



Overview

 Light & sound module generates engine, cannon and machine gun firing sounds and light according to AFV Status High quality digital sound Miniature design( 3cm x 4cm) is suitable for 1/16, 1/25, 1/35 and 1/48 scale tank Easy to install Worked with Central and Speed Controller Rotating Light Control







Ordering Information:

Part Number

AFV Type

Main armament

Secondary armament

LNSII-TIGER-I Tiger I tank 88mm MG34

LNSII-JS-2

JS-2 tank

125 mm

PPSH

Kit contained LNS-135-XXX*1, Control Cable *1, Cannon LED cable *1, MG LED cable, ?0mm Speaker *2.



F/W Version

Version

Release date

Release Note/ Major improvement/status

MK1

Feb of 2012

1.Improved Engine Sound( on-board memory is increased)

2.Support gun elevation servo,

3.Support gun barrel left-right movement servo( Ex. JSU-152),

4.Support RealRecoil,

5.Support Heng Long high-voltage strobe unit.



Accessories Information

Part Number

Description



Control cable

To connect Light and sound module to Central and Speed controller



Cannon LED cable

Cannon LED with preassembled cable( Yellow-White cable )



MG LED cable

Machine gun LED with preassembled cable( Green-White cable )



30mm Speaker

Hi-Fi Speaker with cable( Red-White cable )





Assembly Guide

Wire LNS to CSC by control cable,

Connect Speaker to "SKP" connector,

Connect Cannon LED Cable to "CAN" connector,

Connect MG LED Cable to "MG" connector.

Connect LED Cable to L1, L2, L3 and L4 connector.

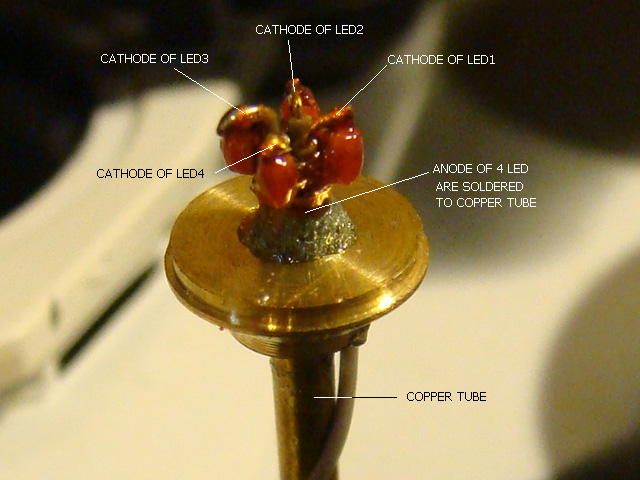

Connect 4 LED Cable to RL1,RL2,RL3 and RL4 connector to make a rotating light. ANODE of RL1~4 is wired already, only one line is required for 4 LED.

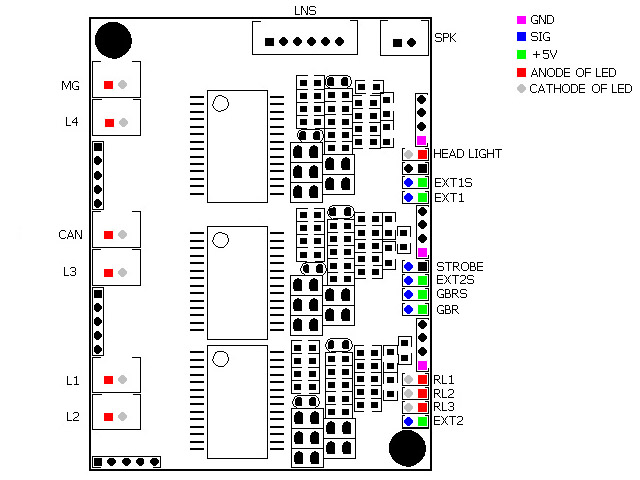

Connector

Pin definition

Work with CSCII-4CH-X

Work with  CSCII-7CH-X

LNS



To connect to Central and Speed controller

To connect to Central and Speed controller

CAN

To connect to main cannon LED

To connect to main cannon LED

MG

To connect to machine gun LED

To connect to machine gun LED

SKP



To connect to speaker

To connect to speaker

L1



To connect to HEAD LIGHT

To connect to HEAD LIGHT

L2



To connect to TAIL LIGHT

To connect to TAIL LIGHT

L3



To connect to LASER LIGHT

To connect to LASER LIGHT

L4



Not Support

To connect to SIDE MARKER light

RL1



Not Support

Rotating Light LED1

RL2



Not Support

Rotating Light LED2

RL3



Not Support

Rotating Light LED3

EXT1



Throttle signal for External twin-motor ESC when EXT1S is connected to GND on LNS

Throttle signal for External twin-motor ESC when EXT1S is connected to GND on LNS

Signal for Gun Elevation servo when EXT1S is connected to +5V Signal for Gun Elevation servo when EXT1S is connected to +5V

EXT2

Rudder signal for External twin-motor ESC when EXT2S is connected to GND on LNS

Rudder signal for External twin-motor ESC when EXT2S is connected to GND

Signal for Gun barrel Left-Right movement  servo when EXT2S is  connected to +5V Signal for Gun barrel Left-Right movement  servo when EXT2S is connected to +5V
STROBE

Trigger of HL high-voltage strobe unit

RED: Battery +

BLACK: STROBE from LNSII

BLUE : Battery -

Yellow :NC

Brown :N.C.

Trigger of HL high-voltage strobe unit



RED: Battery +

BLACK: STROBE from LNSII

BLUE : Battery -

Yellow :NC

Brown :N.C.

GBR

GUN BARREL RECOIL connector, connect to standard servo:

servo white wire  = SIG

servo Red wire    = +5V

servo black wire  = GND on LNS

GUN BARREL RECOIL connector, connect to standard servo

SERVO SIN PIN  = SIG

SERVO + PIN     = +

SERVO GND PIN = GND

GBRS

GUN BARREL RECOIL SERVO DIRECTION SELECT

NORMAL: SHORT SIG TO +

REVERSE: SHOT SIG TO GND

*SIG can not be floating

GUN BARREL RECOIL SERVO DIRECTION SELECT

NORMAL: SHORT SIG TO +

REVERSE: SHOT SIG TO GND

*SIG can not be floating



Example of Rotating Light: Please refer to \PROJECT\LEOPARD 2A6\ for detail





GUN BARREL RECOIL design Example: please refer to \PROJECT\Panther Ausf. A\ for detail





Specification

Part Number

Parameter



Unit

LNS-XX







Current of Main cannon light driver

0.1

A

Current of Machine gun light driver

0.1

A

Max. output power of speaker AMP

0.7

W

Speaker impendence

4 ~ 8

Ohm



FAQ

A 8-Ohm speaker can be replaced with 2 4-Ohm speakers in series.
