Item No: MT-3835A-CASE
Copyright © 2017 CLARK MODEL. All rights reserved
|
Item No: MT-3835A-CASE
Copyright © 2017 CLARK MODEL. All rights reserved
|
|
Part Number |
Part Name |
Qty |
Remark |
|

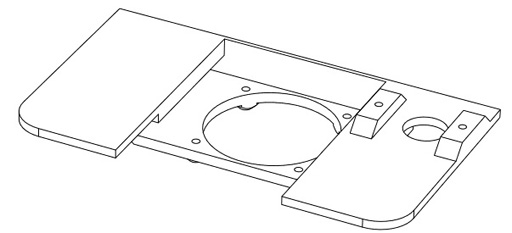

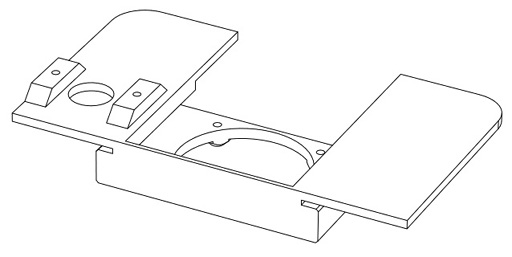

A1 |
Housing |
1 |
|
| V1 | Vol. Control Board | 1 | |
|
S1 |
3W Speaker unit |
1 |
|
| C1 | 1.27mm 2P cable | 1 | |
| C2 | 1.27mm 3P cable | 1 | |
|
MA1 |
2mm *6 PB Tapping screw
|
4 |
|
|
MA6 |
3mm *8 PB Tapping screw
|
3 |
|
|
FAQs Q: A:
|
|

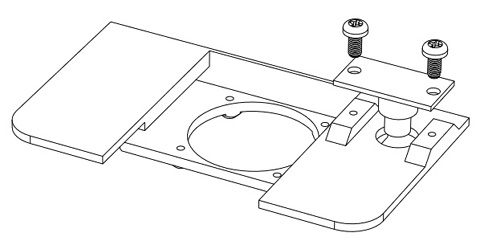

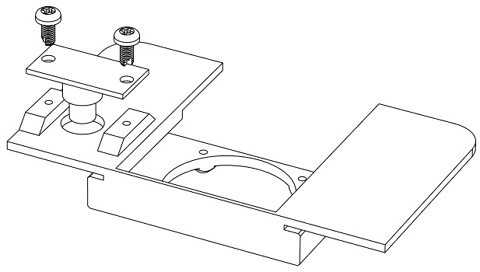

Assembly Guide Bolt volume control board to housing with MA6 screw , speaker by MA1. Wire 2p and 3p cable to speaker and Vol. control board.
|
