Item No: MT-3835A-CASE
Copyright © 2017 CLARK MODEL. All rights reserved
|
Item No: MT-3835A-CASE
Copyright © 2017 CLARK MODEL. All rights reserved
|
|
Part Number |
Part Name |
Qty |
Remark |
|

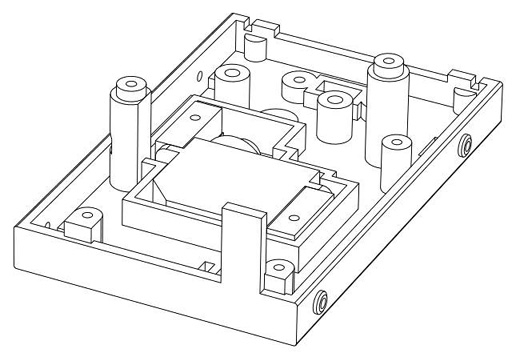

A1 |
Housing |
1 |
|
|
A2 |
Servo attach |
2 |
|
| A3 |
Servo ball joint |
2 | |
|
S1 |
Full metal gear servo
|
1 |
|
|
MA1 |
2mm *6 PB Tapping screw
|
3 |
|
FAQs Q: A:
|
|

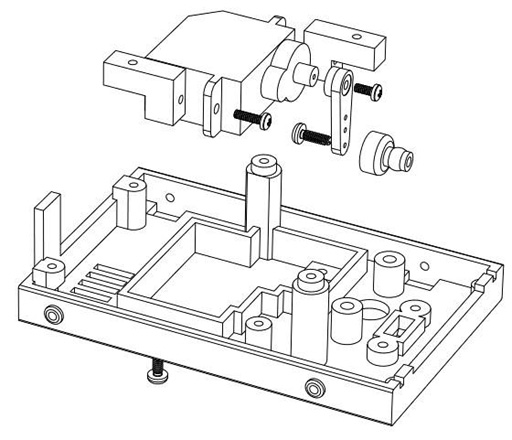

Assembly Guide Bolt A2 to servo by MA1, A3 to servo arm by MA1, servo arm to servo by black screw in servo package.

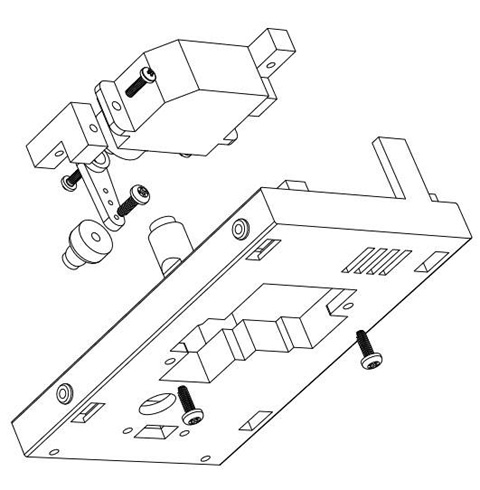

Bolt servo assembly to A1 by MA1, fix steering linkage to ball joint with original screw
|
