Elevation Set for HL M1(16015A)

 Part No. 16015A

*Servo( Futaba S3003) is not included

@

@

Copyright © 2016 CLARK MODEL. All rights reserved

@

@

 Part Number

 Part Name

Qty

Remark

G1

Gear Rock

1

@

G5

Servo Gear

1

@

A1 Servo standoff 2 @
A2 Servo stand panel 1 @

MA3

 2*6mm KB Tapping screw

3

MA6

3mm *8 PB Tapping screw

@

4

@

MA10

3mm *10 PB Tapping screw

@

4

@

MA11

3.5*8*1mm Washer

@

2

@

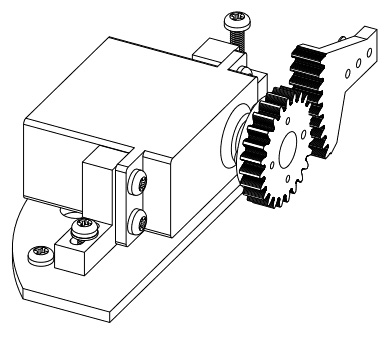

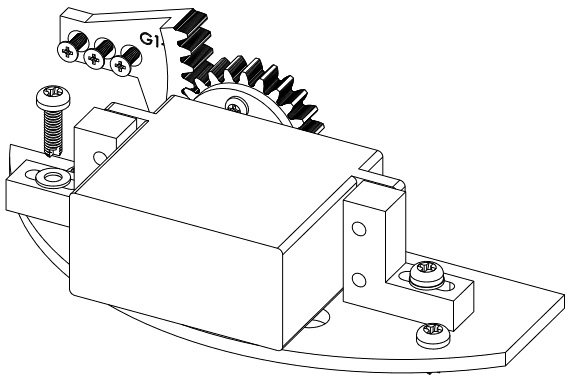

 Assembly Guide



@

@

@
