Elevation Set for HL M1(16015)

 Part No. 16015

@

@

Copyright © 2016 CLARK MODEL. All rights reserved

@

@

 Part Number

 Part Name

Qty

Remark

G1

Gear Rock

1

@

G5

 24T Servo Gear

1

@

A1 Servo standoff 2 @
A2 Servo stand panel 1 @

S1

Metal gear servo bag with screws for

gun recoil

1

@

MA3

 2*6mm KB Tapping screw

3

MA4

2*8*5mm PWB Tapping screw

2

@

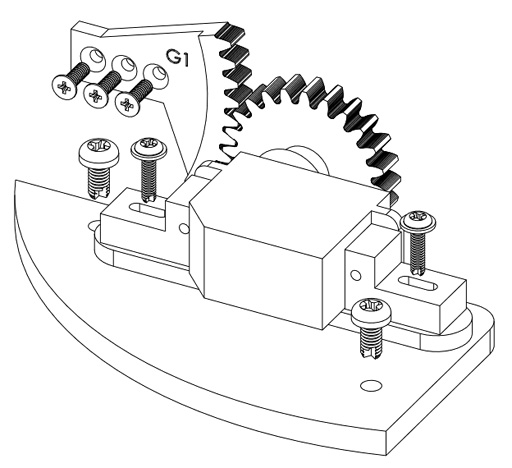

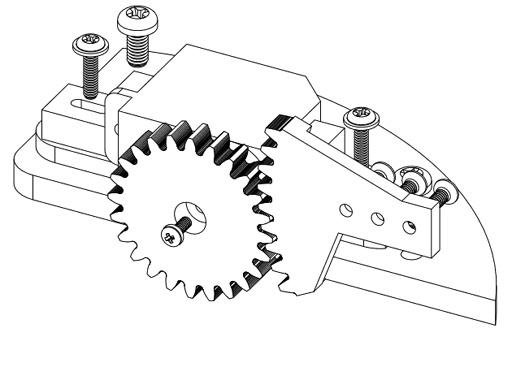

 Assembly Guide

@

@
