Part Number |
Part Name |
Qty |
Remark |
|
A1 |
Engine Deck Level Switch Trigger |
1 |
¡@ |
|
A2 |
Engine Deck Level Switch Holder |
1 |
¡@ |
| S1 |
Engine Deck Level Switch |
1 | ¡@ |
| CAB001 |
Engine Deck Level Switch Cable |
1 | ¡@ |
|
A3 |
Servo Slider |
2 |
¡@ |
|
A4 |
Housing |
1 |
¡@ |
| G1 | 24T Servo Gear | 1 | ¡@ |
|
S1 |
Metal gear servo bag with screws for gun recoil
|
1 |
¡@ |
|
MA1 |
2mm *6 PB Tapping screw ¡@
¡@ |
1 |
|
|
MA4 |
2*8*5mm PWB Tapping screw
|
4 |
¡@ |
|
MA5 |
2mm *4 PB Tapping screw
¡@ |
4 |
|
FAQs Q: Shell I connect servo to J5 cannon rotation servo port or plug to original turret ESC pin I use the GBS? A: Remove servo back cover, disconnect motor( yellow arrow mark ) from servo control board and connect motor to TK board, 7 and 8th pin of CN9 connector via a small PCB in HL tank upper chassis. ¡@ Q: Servo include is 360 full turn? I tried manually turning with servo head and there is no end stop A: It's not 360 full turn servo, no mechanical end stop is its original design. ¡@ Q: What Engine Deck Level Switch is for? A: Engine deck level Switch is closed when gun travels above engine deck to tell GBS unit to elevate gun to avoid collusion. ¡@ ¡@ |
|

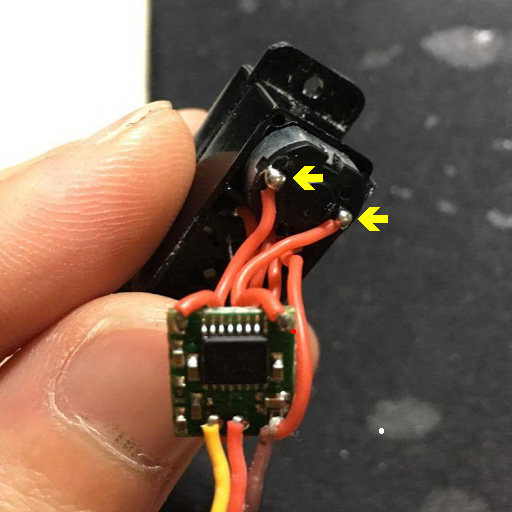

Assembly Guide Remove servo back cover, disconnect motor( yellow arrow mark ) from servo control board and connect motor to Tk board, 7 and 8th pin of CN9 connector via a small PCB in HL tank upper chassis.

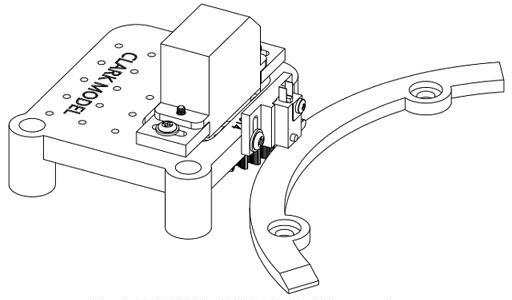

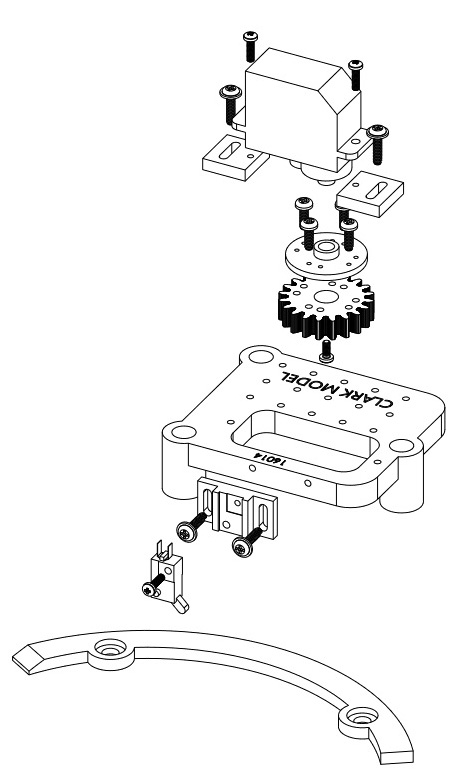

Follow explosion drawing to assembly

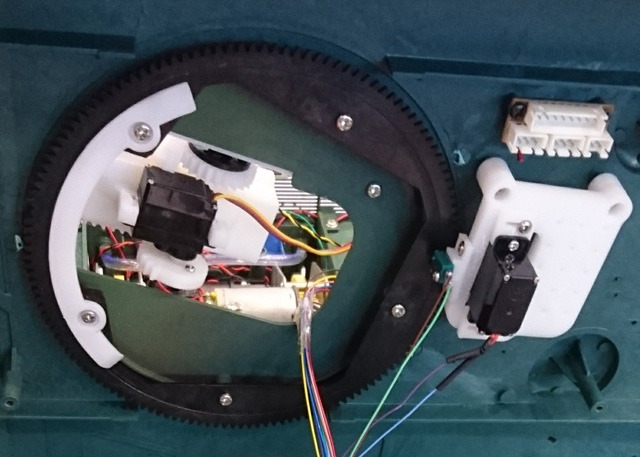

Fit turret rotation unit to HL tank upper chassis as picture below, add few spacer if Deck level switch can not be triggered by Deck Level Switch Trigger, connect Deck Level Switch to Engine Deck Level Switch Port ( TK22G2/Tk24G2/TK60G2 )
¡@
¡@ |
