Elevation Gear Set for Universal Servo Recoil

 Part No. 16012

@

@

@

 Part Number

 Part Name

Qty

Unit Price

G1

Gear Rock

1

@

G2

 16T Servo Gear

1

@

G3

 20T Servo Gear

1

@

G4

 24T Servo Gear

1

@

G5

 28T Servo Gear

1

@

S1

Metal gear servo bag with screws for

gun recoil

1

@

MA3

 2*6mm KB Tapping screw

3



Assembly Guide

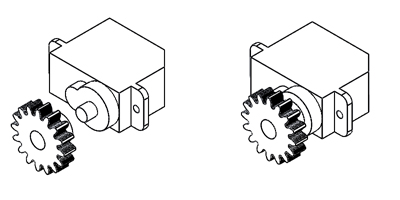

Select servo gear(16T~28T) base on your application, larger gear produce larger elevation range. Push servo gear into servo shaft with force, then bolt it with the black screw in servo package.

 Bolt G1 part to universal recoil with 3X MA1 screws

@

Fix elevation servo as shown to elevate recoil unit.

@

@

@
