Part No. 16009
*Futaba S3003 servo is not included ¡@ |
Part No. 16009
*Futaba S3003 servo is not included ¡@ |
¡@
|

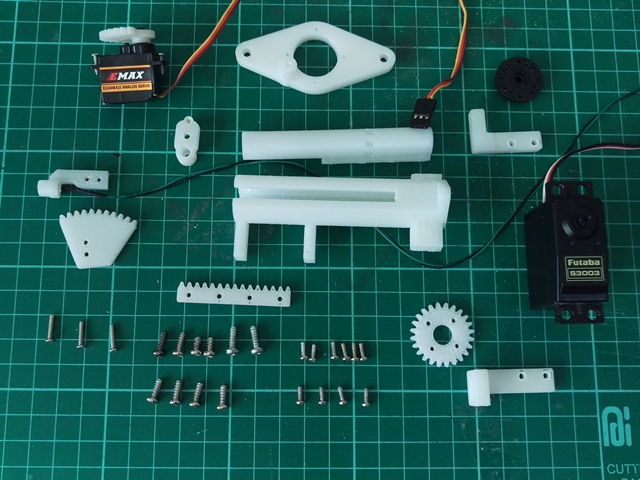

Part Number |
Part Name |
Qty |
Remark |
|
A1 |
Gun barrel extension |
1 |
¡@ |
|
A2 |
Recoil Gear Rock |
1 |
¡@ |
|
A3 |
Recoil Servo Gear |
1 |
¡@ |
|
A4 |
Cradle |
1 |
¡@ |
|
A5 |
Cradle Elevation Gear |
1 |
¡@ |
|
A6 |
Servo Elevation Gear |
1 |
¡@ |
|
A7 |
Elevation servo stand |
1 |
¡@ |
|
A8 |
Elevation servo fixture |
2 |
|
| A9 | Coaxial MG LED holder | 1 | |
|
S1 |
Metal gear servo bag with screws for gun recoil
|
1 |
¡@ |
|
MA1 |
2mm *6 PB Tapping screw
¡@ |
5 |
|
|
MA2 |
2mm *10 PB Tapping screw
|
3 |
|
|
MA3 |
2*6mm KB Tapping screw
|
3 |
|
|
MA5 |
2mm *4 PB Tapping screw
¡@ |
8 |
|
|
MA6 |
3mm *8 PB Tapping screw
¡@ |
11 |
¡@ ¡@ ¡@ ¡@ |
|
Before Assembly
Please to read "How
to work with 3D printed parts" and to clean and trim parts.
¡@ |
|

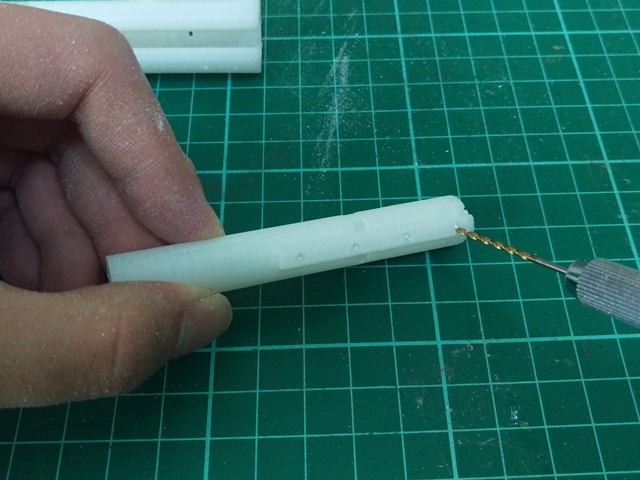

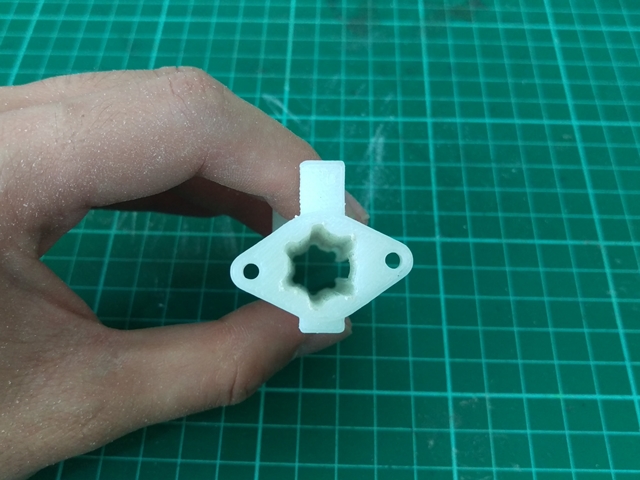

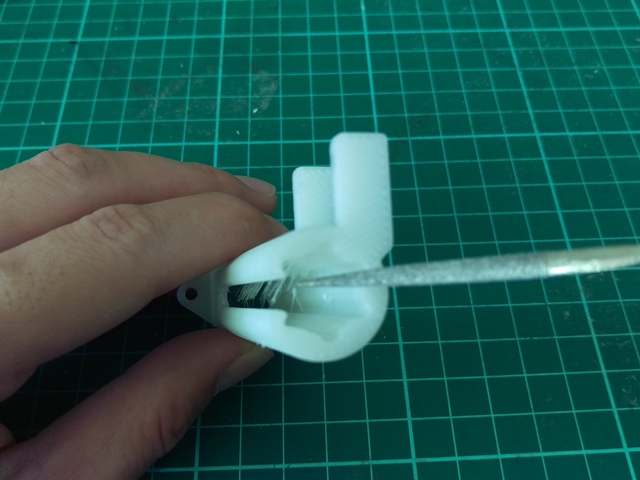

Gun Recoil Smooth inner surface of A7 for barrel movement.

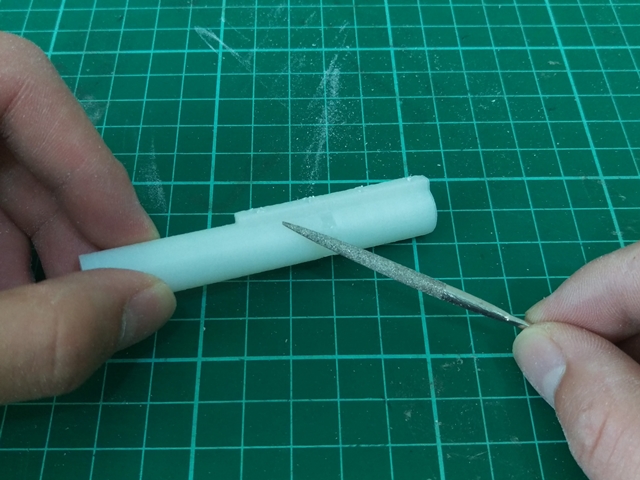

Smooth surface of gun barrel extension too

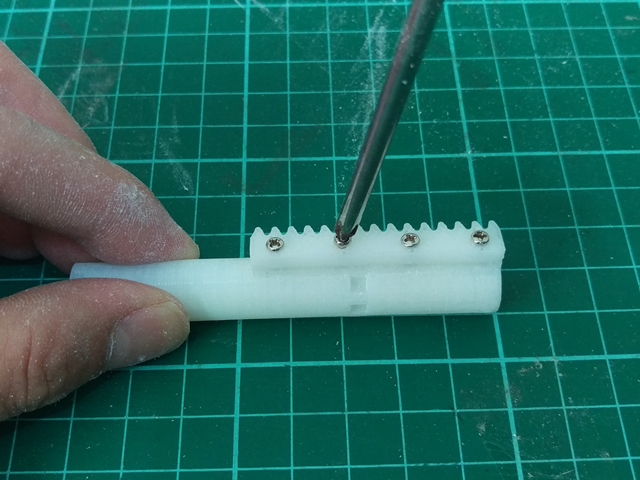

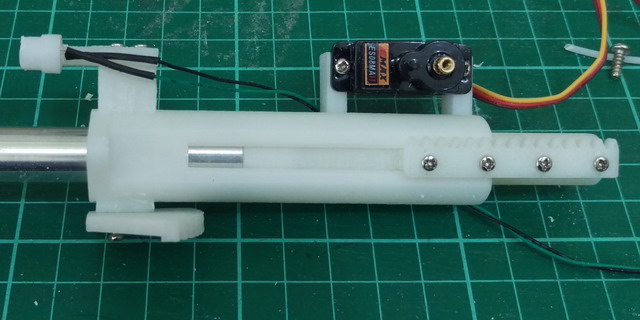

Bolt gear rock to barrel extension with MA1

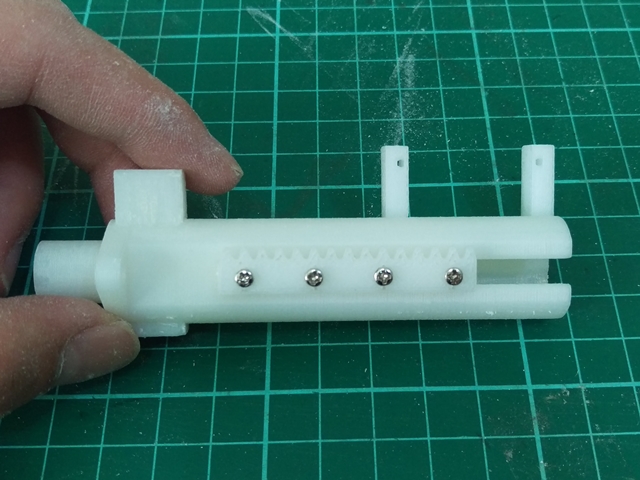

Insert barrel assemble to cradle
Make sure barrel can moves smoothly

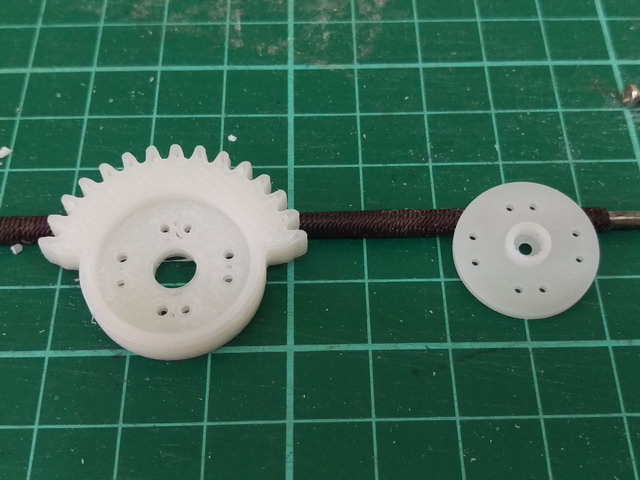

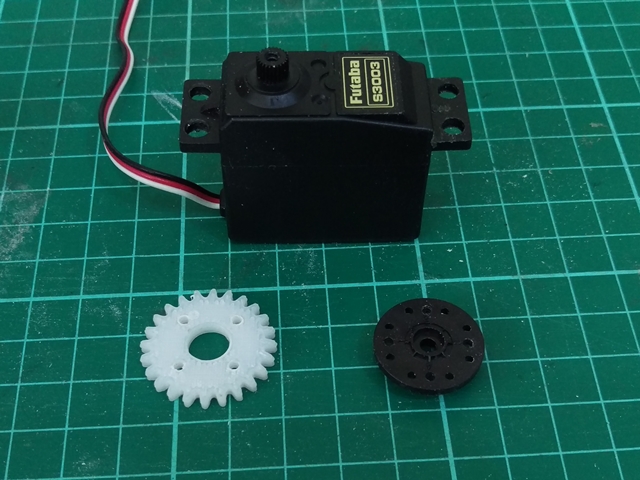

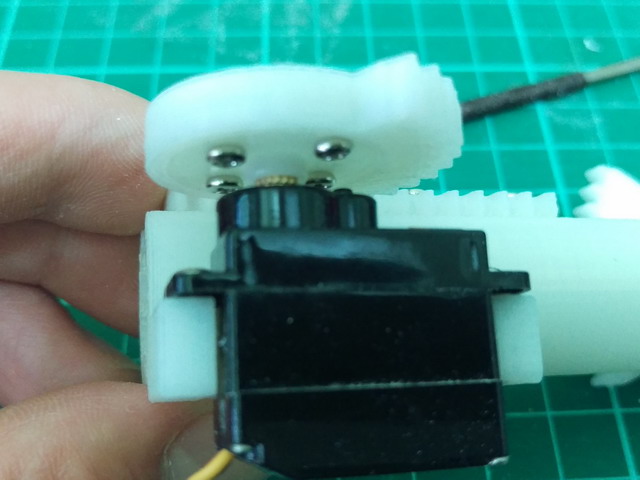

Assemble recoil gear and servo horn

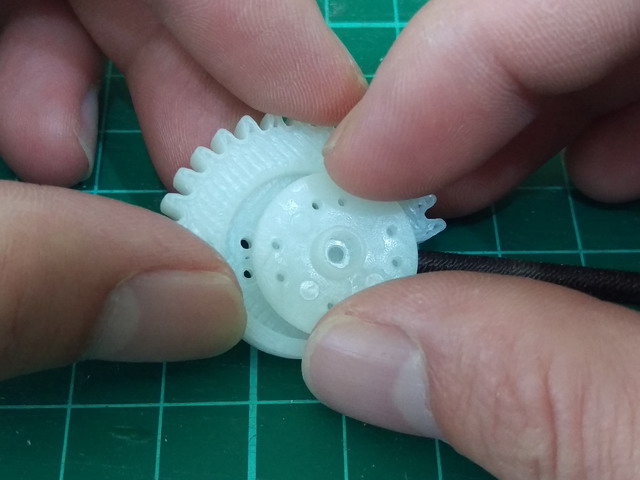

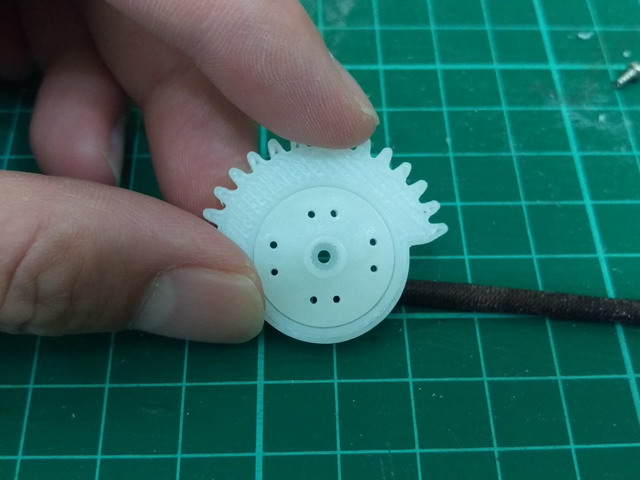

Insert servo horn into recoil gear
Align screw hole on recoil gear and servo horn

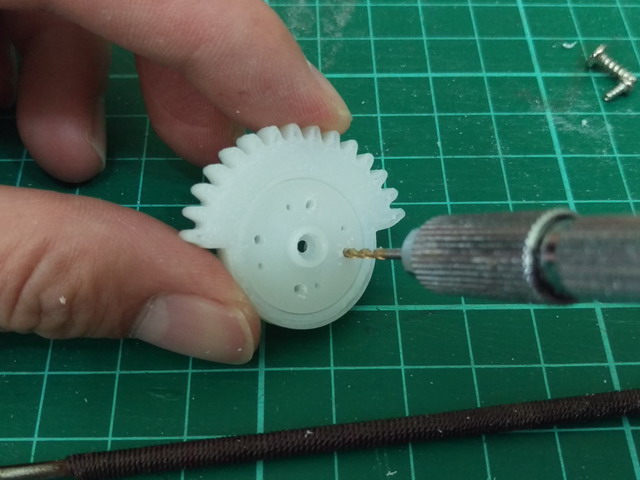

Make hole on servo horn larger by 1.6mm drill

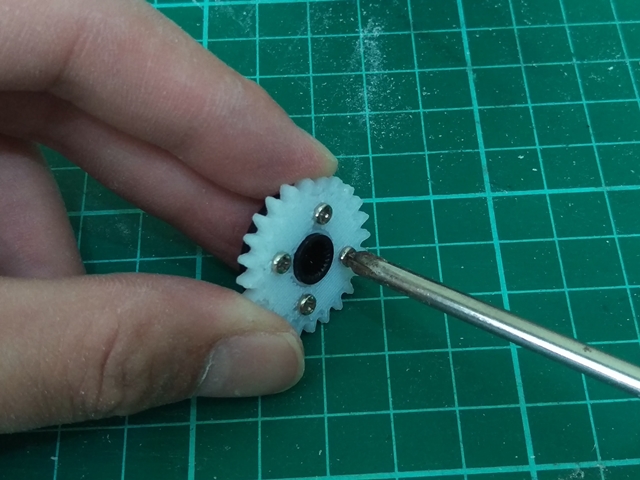

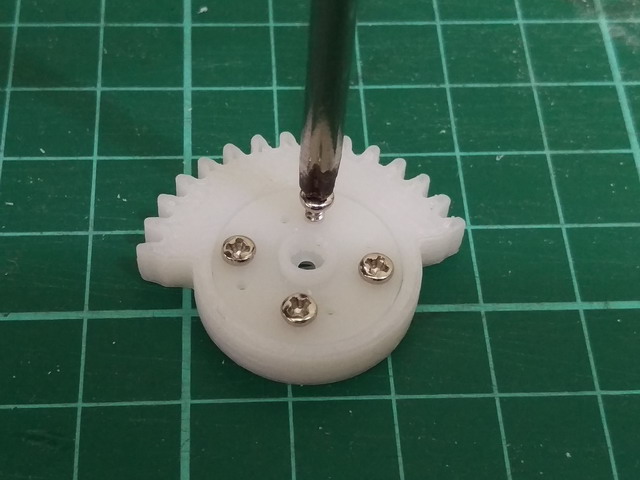

Bolt with M5 screw *4

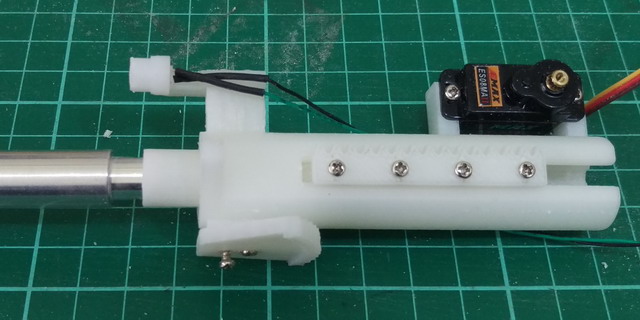

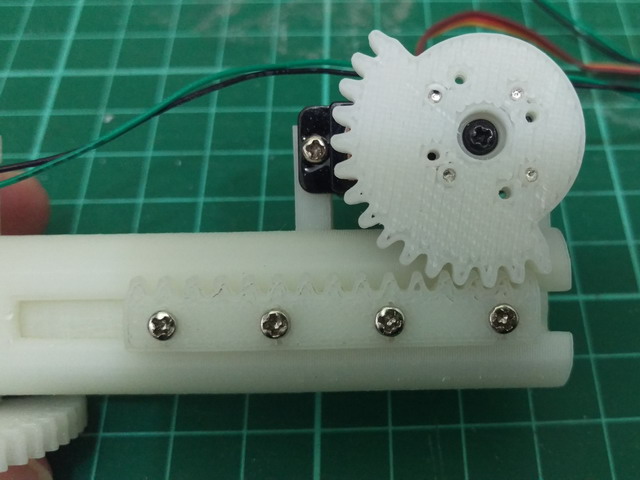

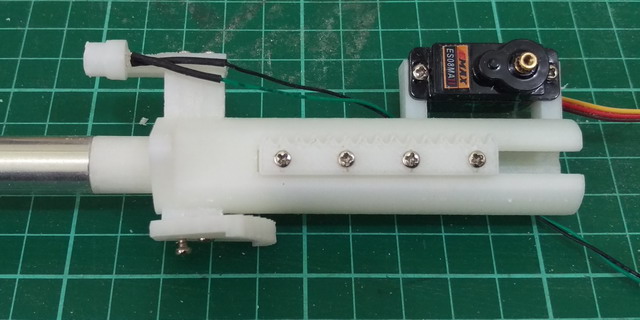

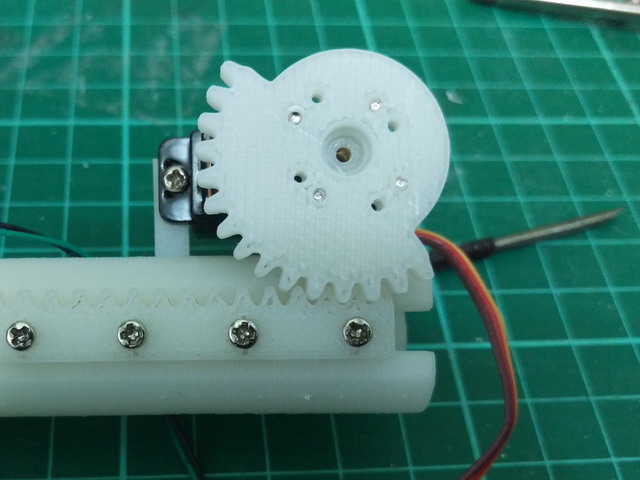

Align barrel extension and cradle
Connect servo to TK22 to set servo to normal position then bolt servo gear with the black screw in servo accessory bag
¡@

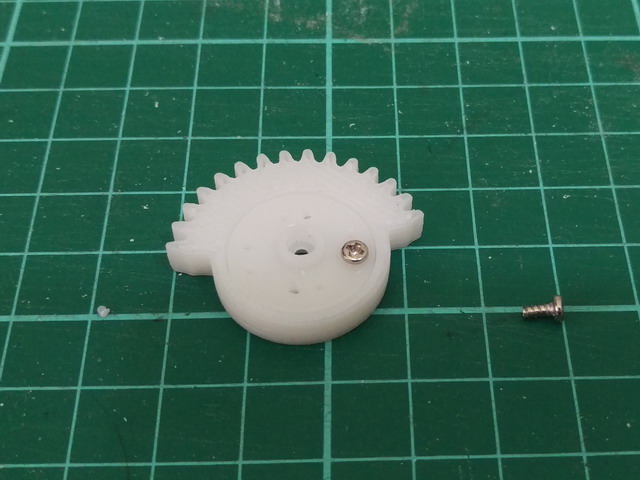

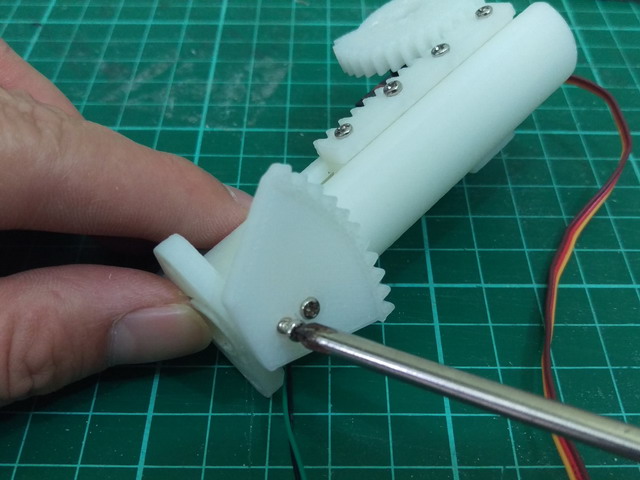

Bolt elevation gear with MA3 screw *2

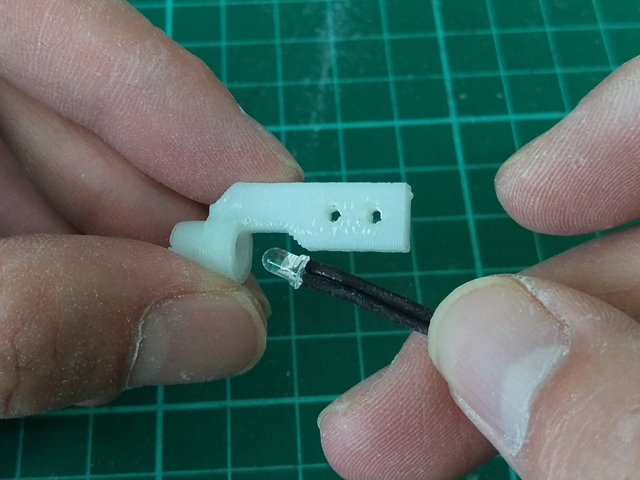

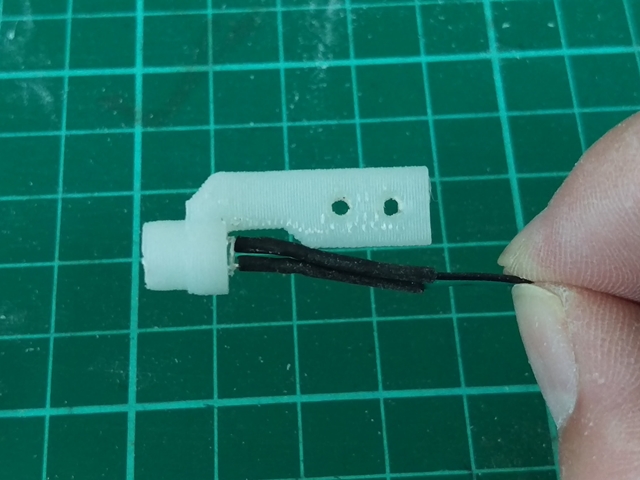

Insert MG LED

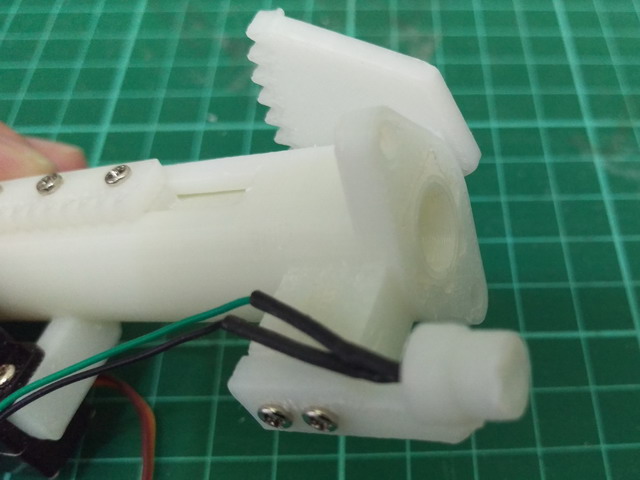

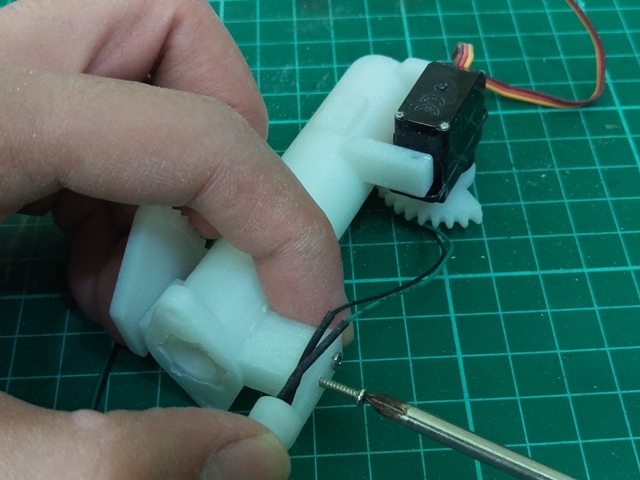

Bolt it to cradle

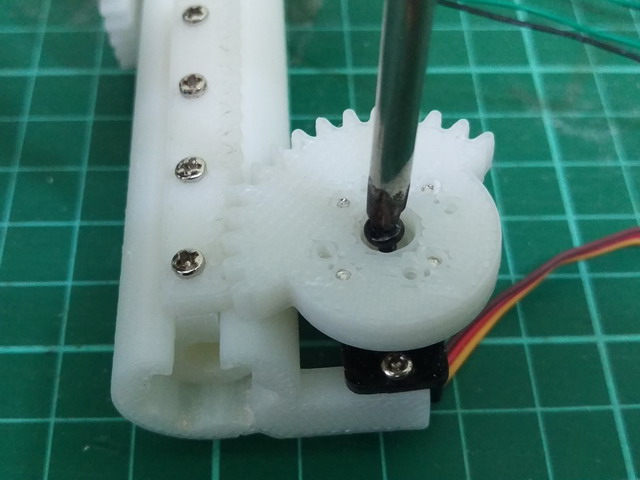

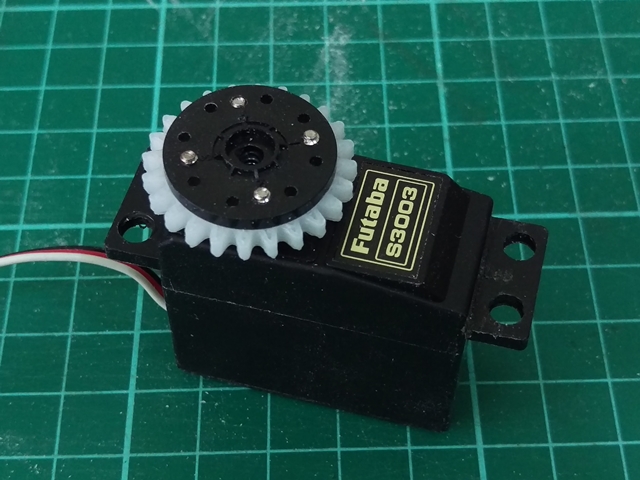

Bolt servo gear with the black screw in servo accessory bag

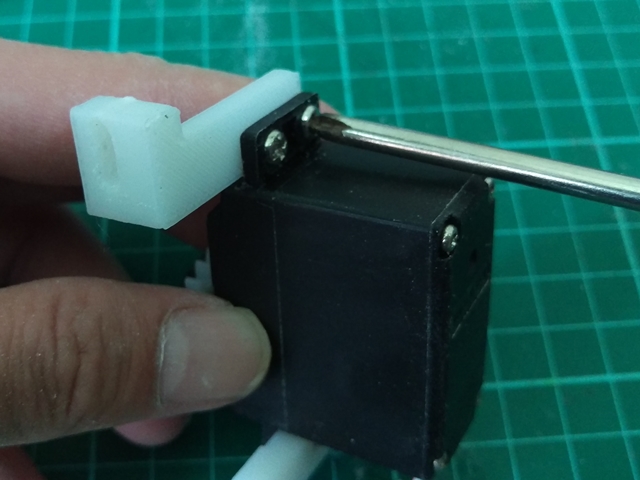

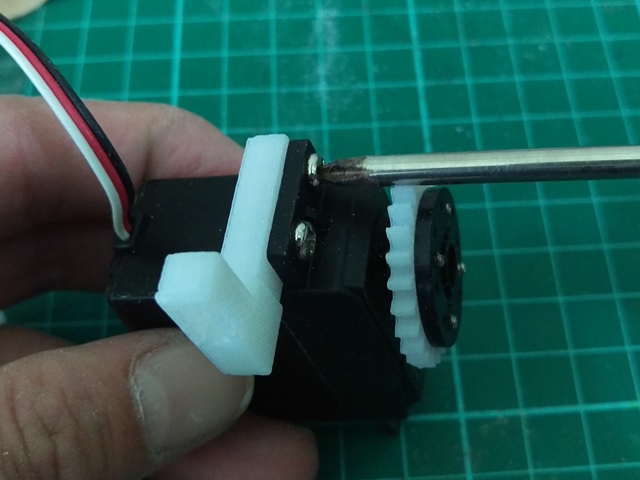

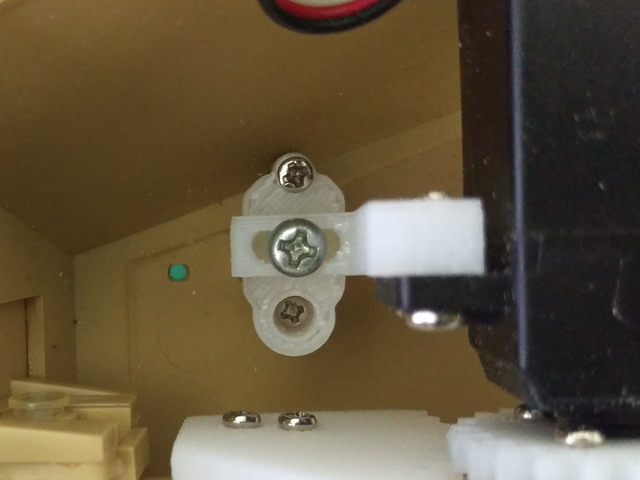

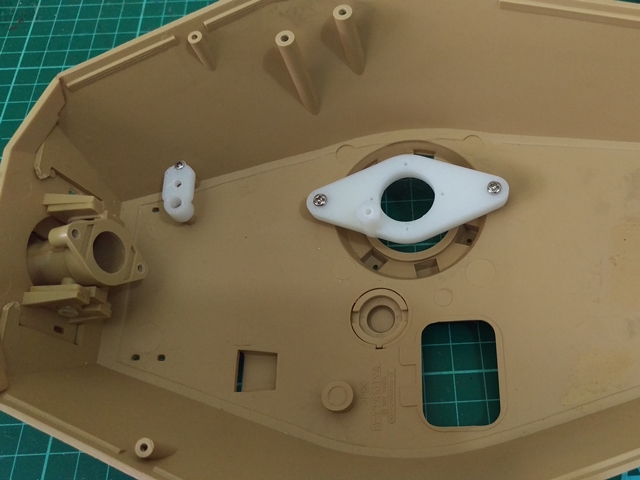

Insert screw to the slot on servo fixture

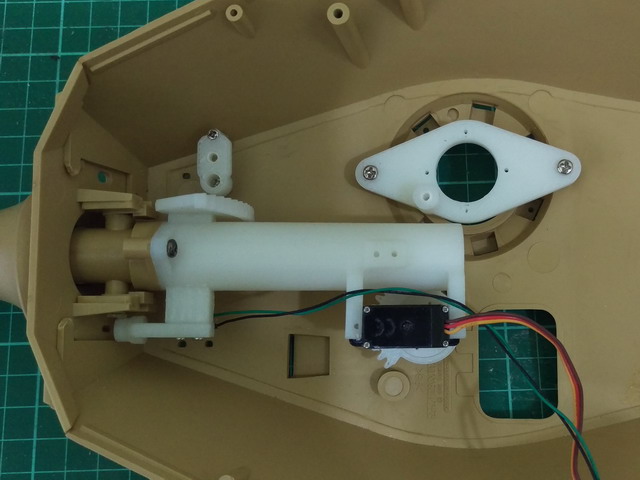

Fit elevation gear assembly to the stand

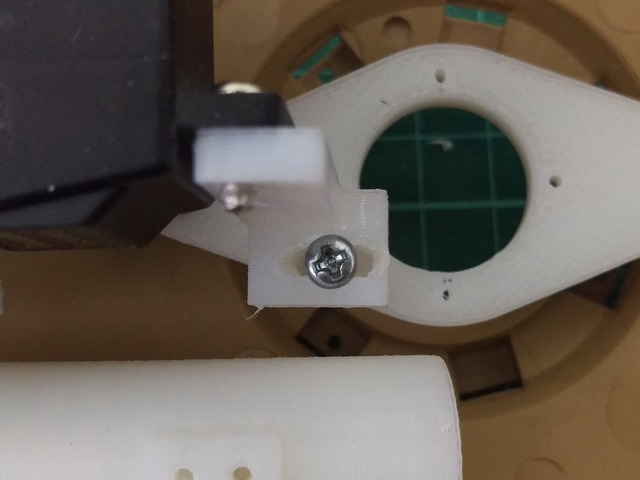

Connect servo to TK22 to set servo to normal position then tight the screw to fix it

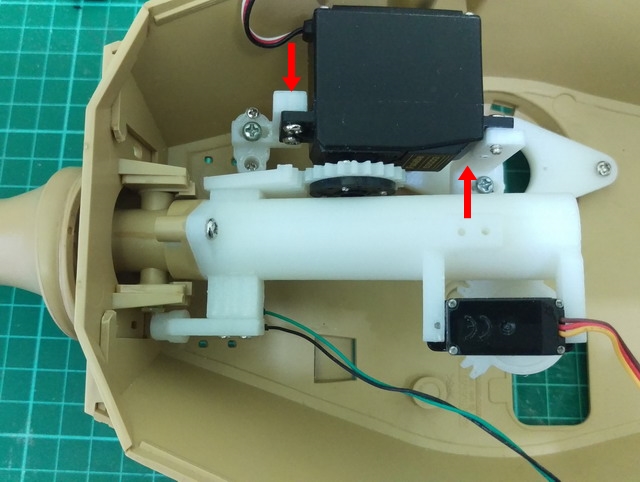

Beware the direction of servo fixture

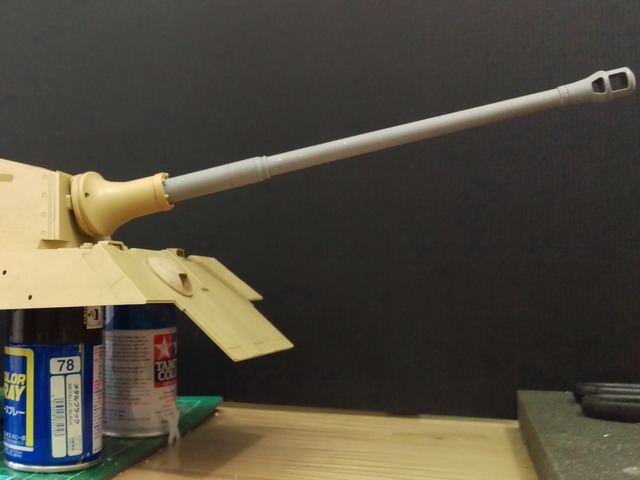

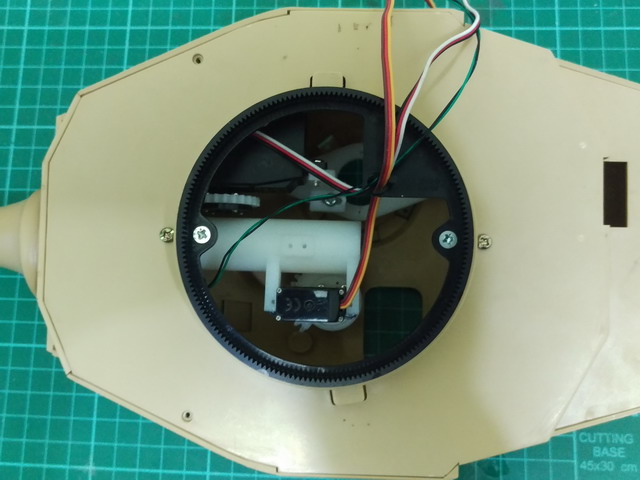

Put lower turret hull back
Done
¡@ |
