¡@ Part No. 16003A ¡@
¡@
¡@ |
¡@ Part No. 16003A ¡@
¡@
¡@ |
¡@
|

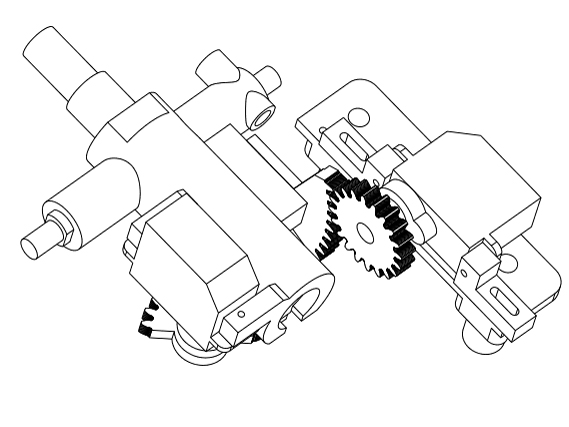

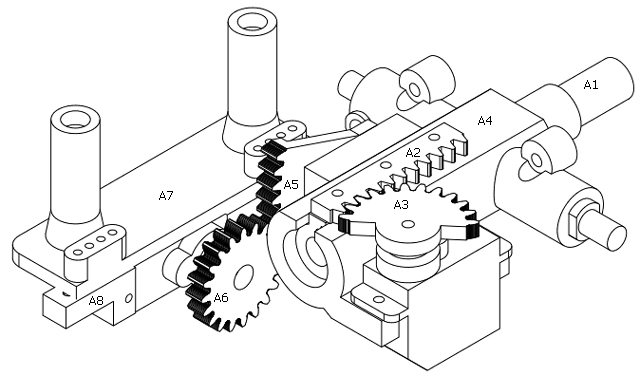

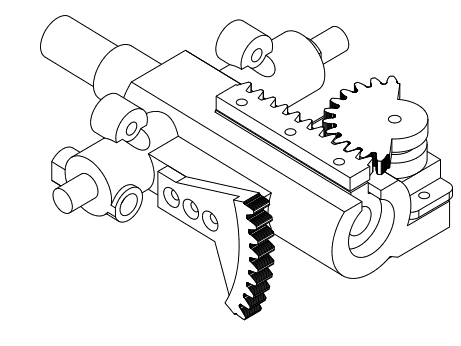

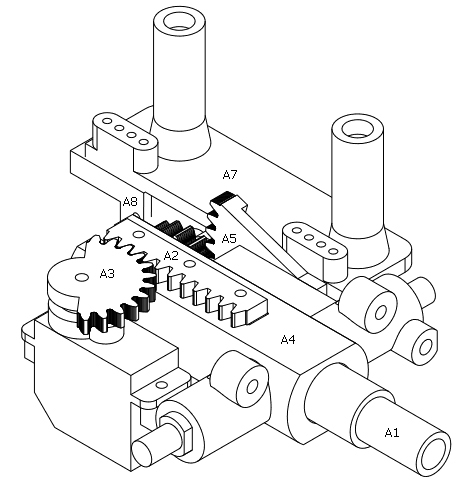

Part Number |
Part Name |
Qty |
Remark |
|
A1 |
Gun barrel extension |
1 |
¡@ |
|
A2 |
Recoil Gear Rock |
1 |
¡@ |
|
A3 |
Recoil Servo Gear |
1 |
¡@ |
|
A4 |
Cradle |
1 |
¡@ |
|
A5 |
Cradle Elevation Gear |
1 |
¡@ |
|
A6 |
Servo Elevation Gear |
1 |
¡@ |
|
A7 |
Elevation servo stand |
1 |
¡@ |
|
A8 |
Elevation servo L fixture |
2 |
|
|
S1 |
Recoil servo bag with screws ¡@
¡@ |
1 |
Optional, servo in the tank can be used with this kit |
|
S2 |
Elevation servo with screws ¡@
¡@ |
1 |
Optional, servo in the tank can be used with this kit |
|
MA1 |
2mm *6 PB Tapping screw ¡@
¡@ |
3 |
|
|
MA3 |
2*6mm KB Tapping screw ¡@
¡@ |
3 |
|
|
MA4 |
2*8*5mm PWB Tapping screw
¡@ |
2 |
¡@ |
|
Before Assembly Please to read "How to work with 3D printed parts" and to clean and trim parts. ¡@ |
|

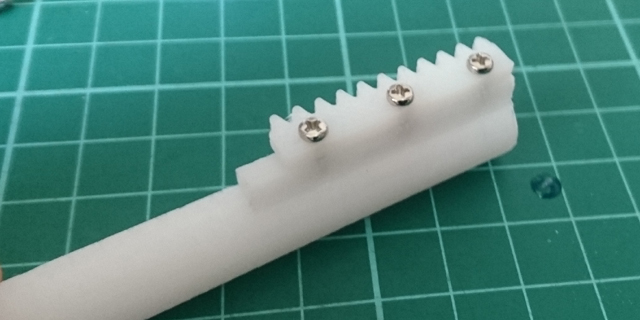

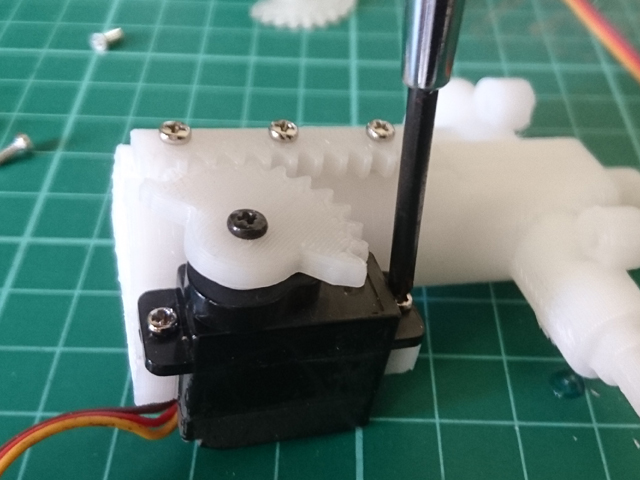

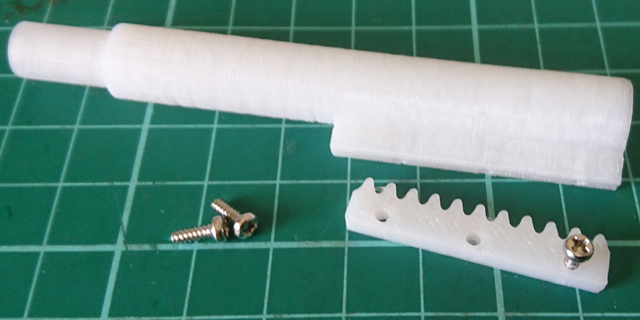

Bolt gear rock to to barrel with MA1
Total of 3 screws

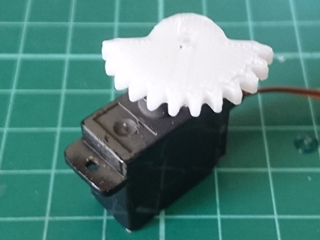

Fit recoil servo gear with screw in S1 bag
¡@

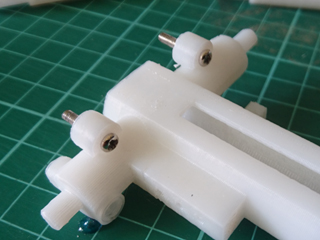

Insert screw on original candle to new candle

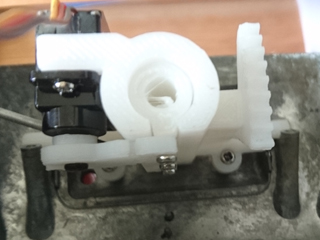

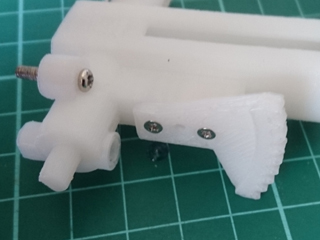

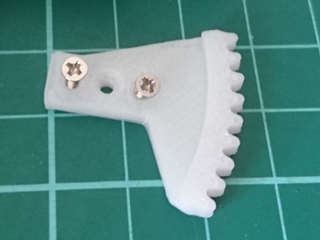

Fit elevation gear(A5) with MA3 screw

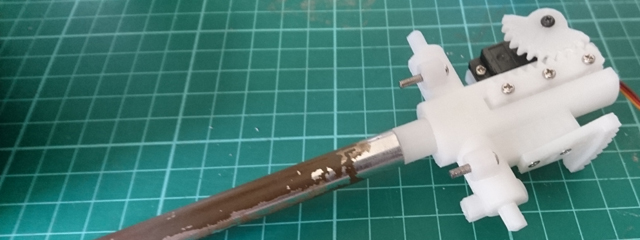

Insert gun barrel to A1, A1 and gun barrel
are designed to fit tightly, if too tight, trim the surface of A1

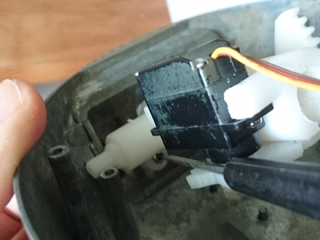

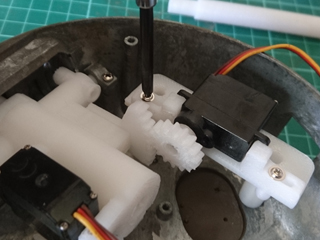

Insert candle to turret, bolt candle to mantlet

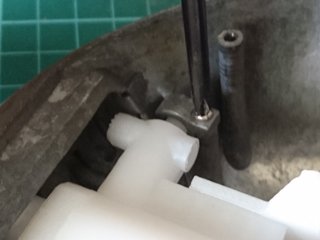

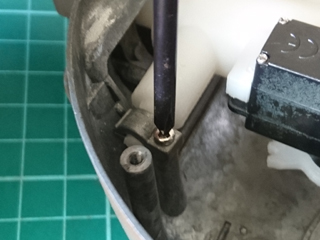

Bolt candle to turret

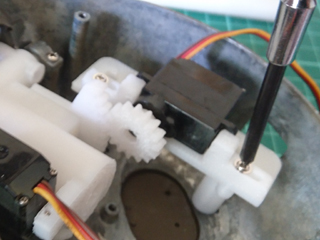

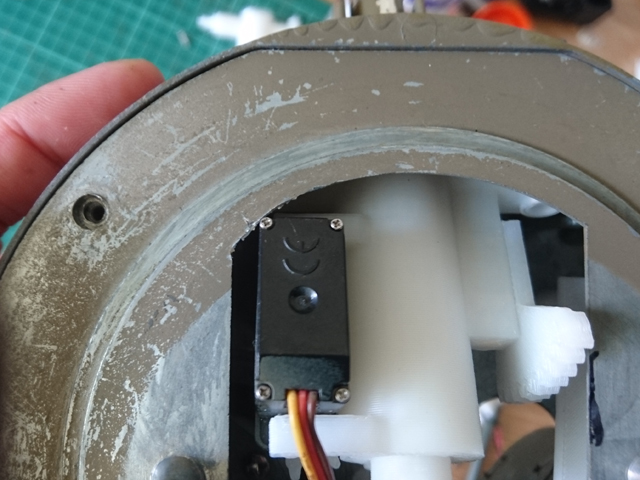

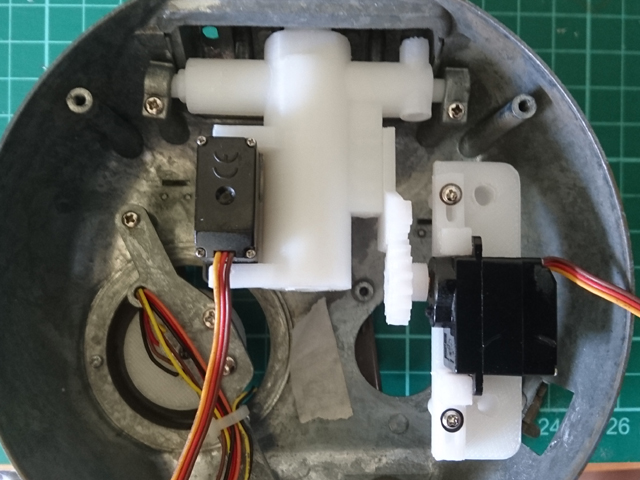

refer to elevation Servo assembly guide in
16003 to install elevation servo and elevation
Finished!
Trim turret lower hull to avoid interference.
¡@ |
