¡@ Part No. 16003 Not include Servo Part No.16003-1 Include Servo ¡@
¡@ |
¡@ Part No. 16003 Not include Servo Part No.16003-1 Include Servo ¡@
¡@ |
¡@
|
Part Number |
Part Name |
Qty |
Remark |
|
A1 |
Gun barrel
¡@ |
1 |
¡@ |
|
A2 |
Breech
¡@ |
1 |
¡@ |
|
A3 |
Recoil Gear Rock
¡@ |
1 |
¡@ |
|
A4 |
Recoil Servo Gear
¡@ |
1 |
¡@ |
|
A6 |
Recoil Servo Fixture
¡@ |
1 |
¡@ |
|
A7 |
Cradle Front
¡@ |
1 |
¡@ |
|
A8 |
Cradle Back
¡@ |
1 |
¡@ |
|
A9 |
Cradle Elevation Gear
¡@ |
1 |
¡@ |
|
A10 |
Servo Elevation Gear
¡@ |
1 |
¡@ |
|
A11 |
Elevation servo stand
¡@ |
1 |
¡@ |
|
A12 |
Elevation servo L fixture
¡@ |
2 |
|
|
S1 |
Recoil servo bag with screws ¡@
¡@ |
1 |
Optional, servo in the tank can be used with this kit |
|
S2 |
Elevation servo with screws ¡@
¡@ |
1 |
Optional, servo in the tank can be used with this kit |
|
MA1 |
2mm *6 PB Tapping screw ¡@
¡@ |
10 |
|
|
MA2 |
2mm *10 PB Tapping screw ¡@
¡@ |
2 |
|
|
MA3 |
2*6mm KB Tapping screw ¡@
¡@ |
4 |
|
|
MA4 |

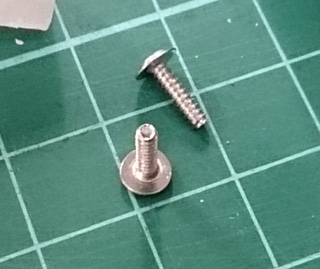

2*8*5mm PWB Tapping screw
¡@ |
2 |
¡@ |
|
Before Assembly Please to read "How to work with 3D printed parts" and to clean and trim parts. ¡@ |
|

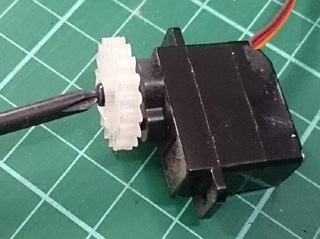

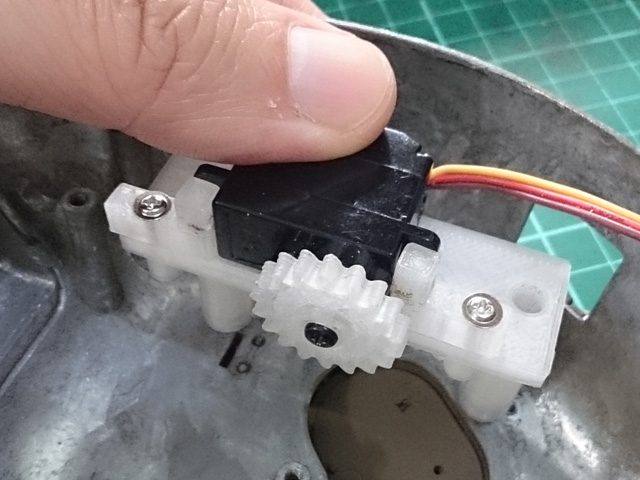

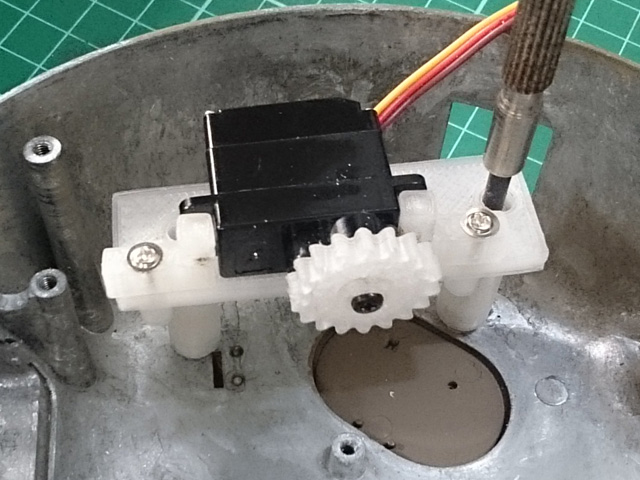

Elevation Servo Fit A10 to Servo with the screw in S2 bag

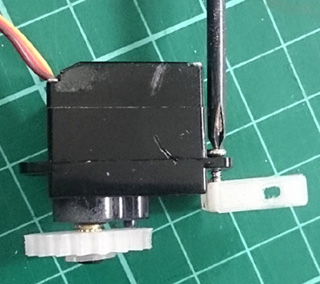

Fit A12 to servo with MA1 screw
¡@

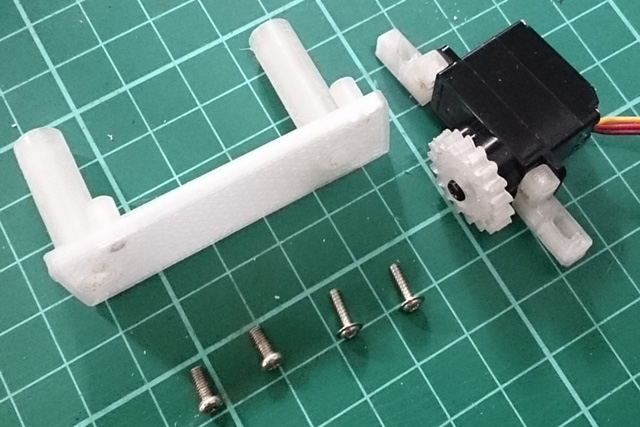

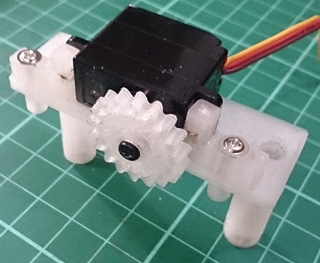

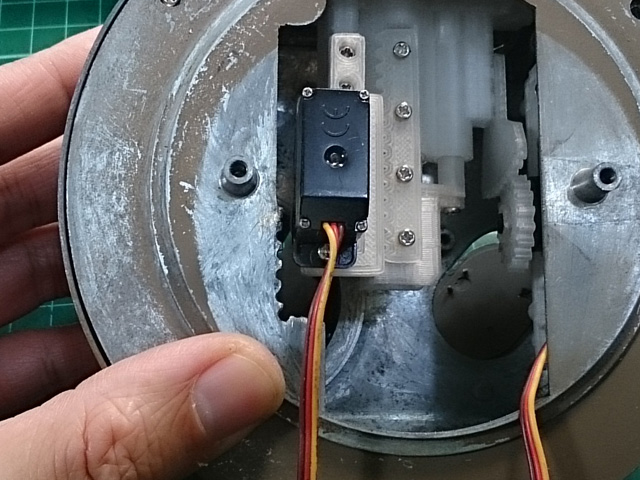

Install servo to servo stand with MA4 screw
Bolt servo stand to upper turret
Servo can still move forward and backward for now
¡@ |
¡@
|

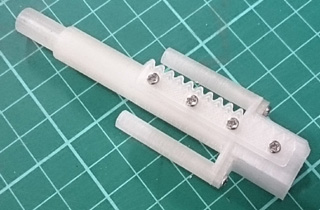

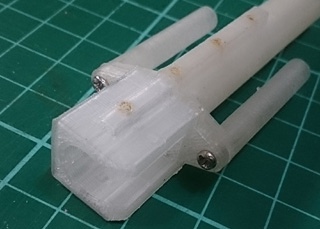

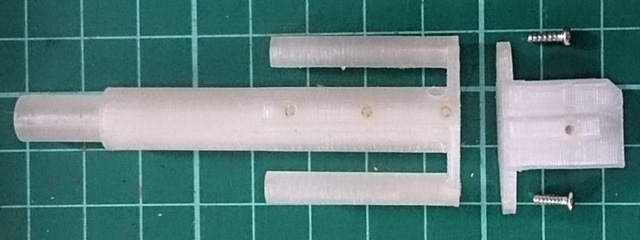

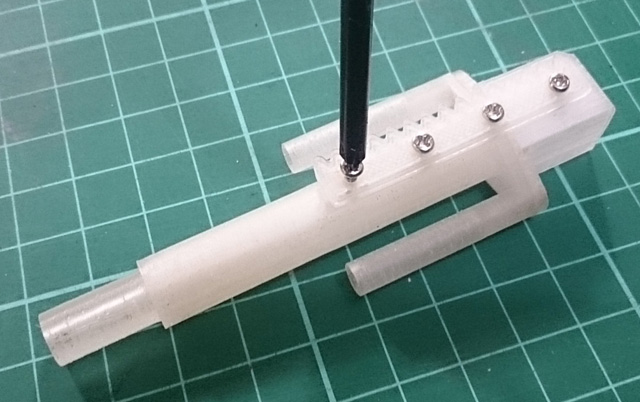

Gun barrel Bolt breech to barrel with MA1
¡@
Bolt gear rock to to barrel with MA1

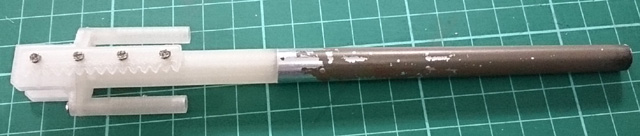

Total of 4 screws to bolt
Insert meta and glue it
¡@ |
¡@
|

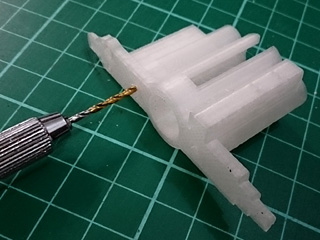

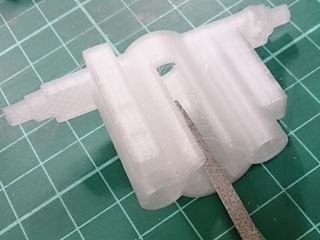

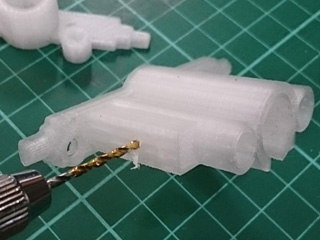

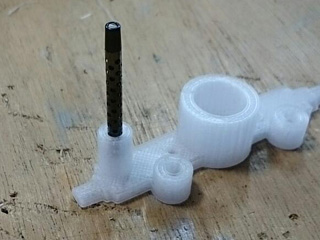

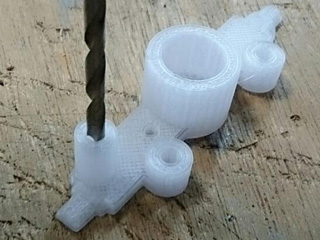

Cradle Trim screw hole on part with 1.6mm drill
Smooth the surface that contact gun barrel

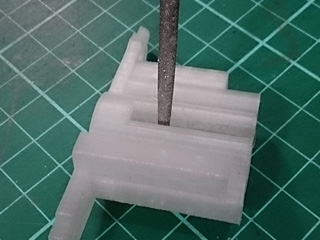

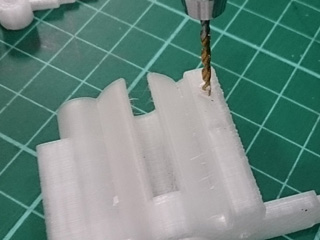

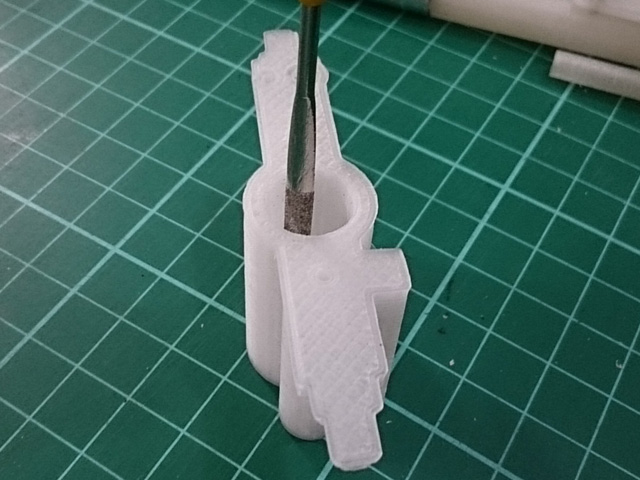

Slowly trim A7 with 3mm dill bit

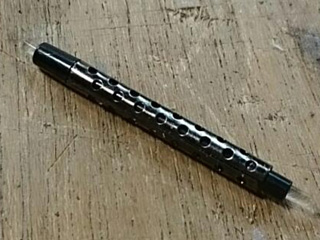

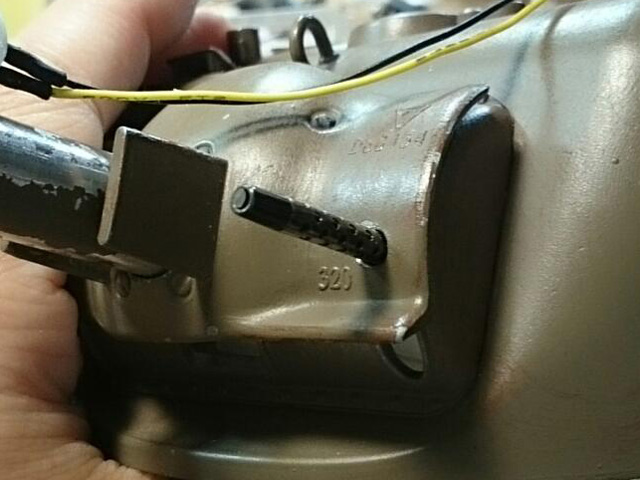

Use M2 gun barrel in (Tamiya Machine Gun Bag: 56014)
Insert M2 gun barrel into Part A7 to test fitness, they should fit closely. Unplug M2 gun barrel after testing.

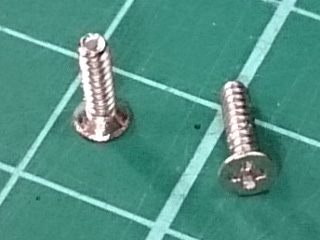

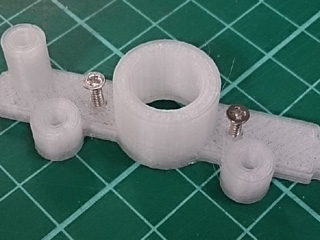

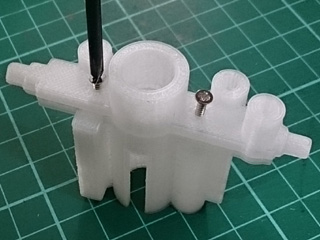

Insert MA3

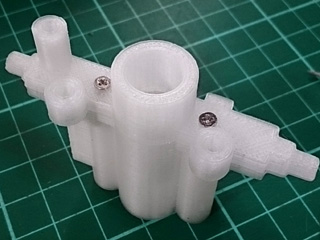

Bolt candle A7 and A8 part together

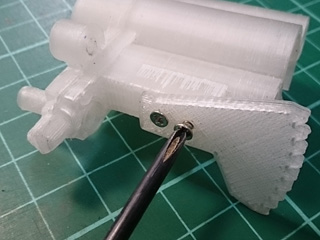

Fit elevation gear(A9) with MA3 screw
¡@ |
¡@
|

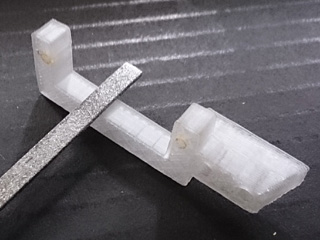

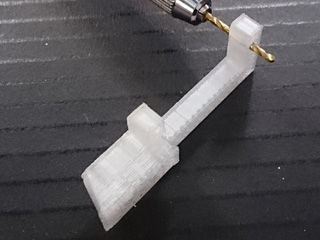

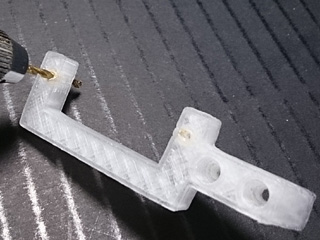

Barrel Recoil Trim A6 part a bit

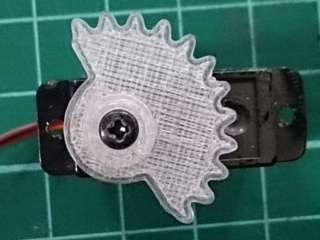

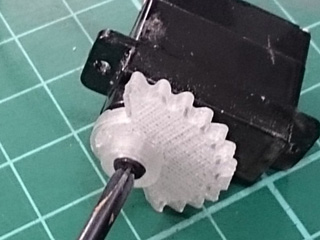

Fit recoil servo gear with screw in S1 bag

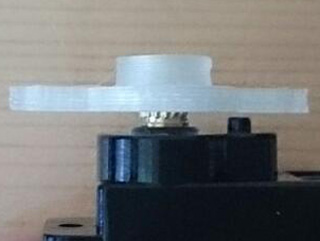

Side view

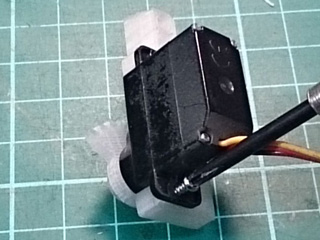

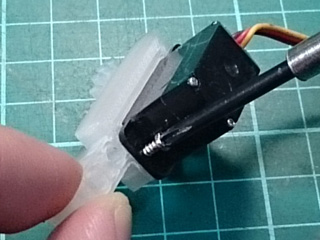

Fit Servo to A6 with two MA1 screw

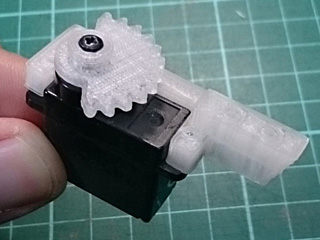

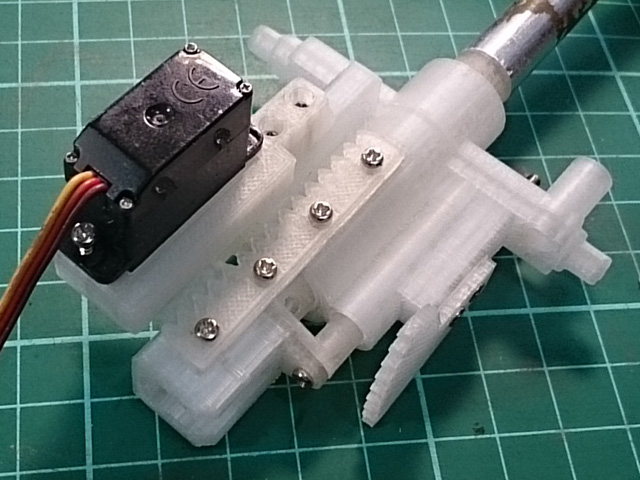

Recoil servo assembly

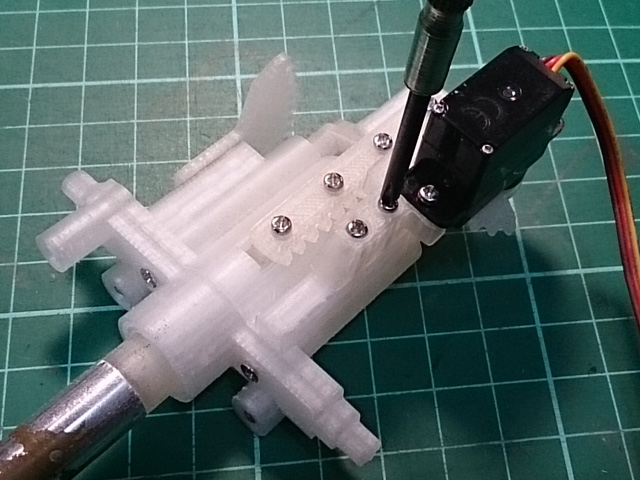

Bolt Recoil servo assembly to candle with two MA2 screw
¡@
¡@ |
|
TBU_001 base (Optional)
Insert 5P connector, apply ABS glue and glue two parts together
Clip it until ABS glue is cured.
¡@
Solder 5P cable
Fit to metal frame with MA5 screw
Fit to upper turret with original screws
¡@ |
|

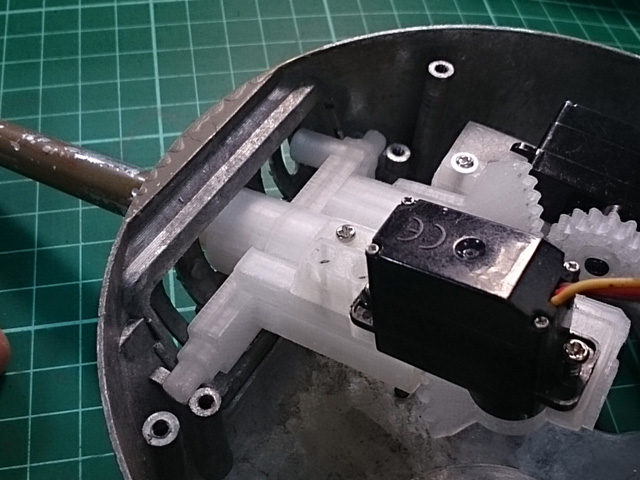

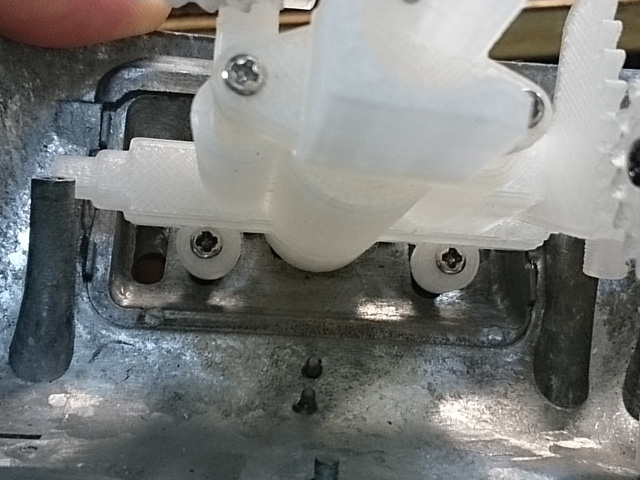

Final assembly Trim gun shield as real one

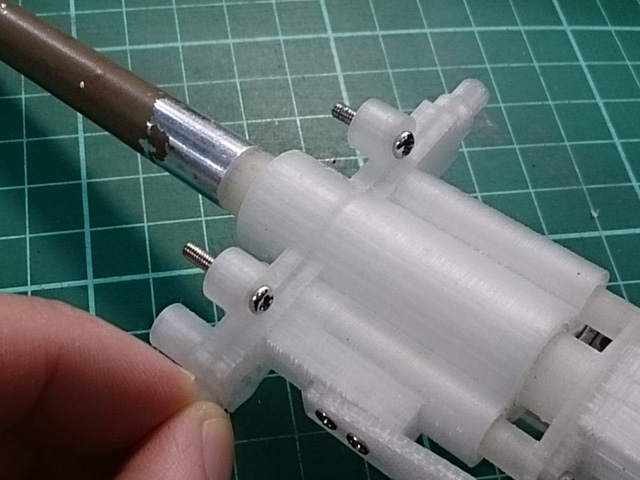

Insert screw on original candle to new candle
Insert candle to turret

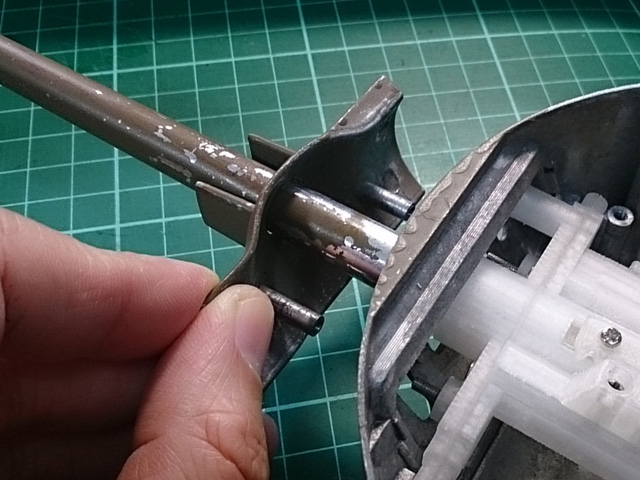

Insert mantlet

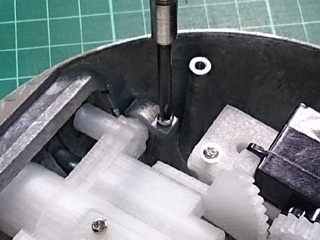

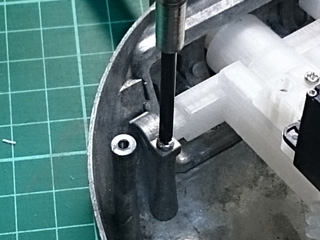

Fasten screw
¡@

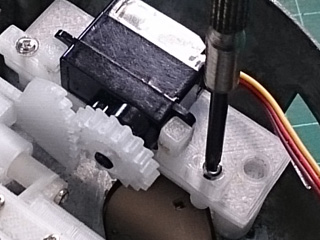

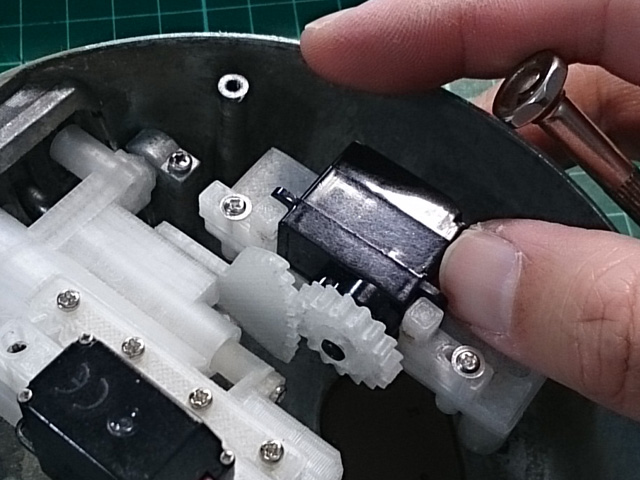

Adjust the gap between gears

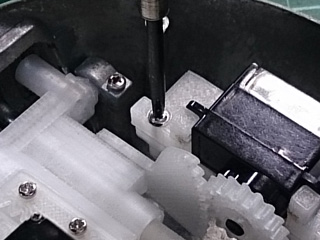

then bolt servo to stand

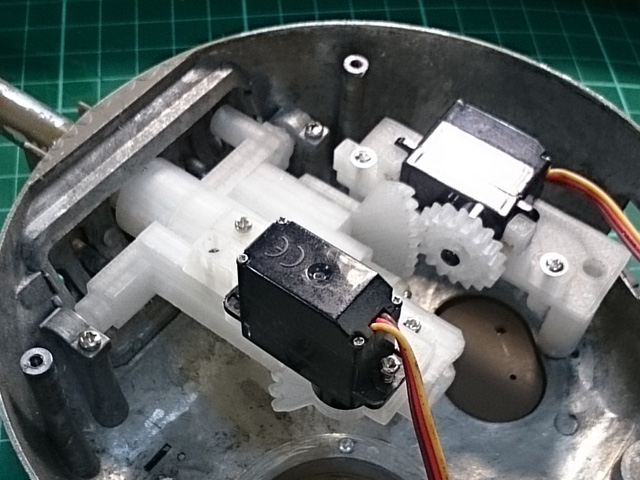

Done!

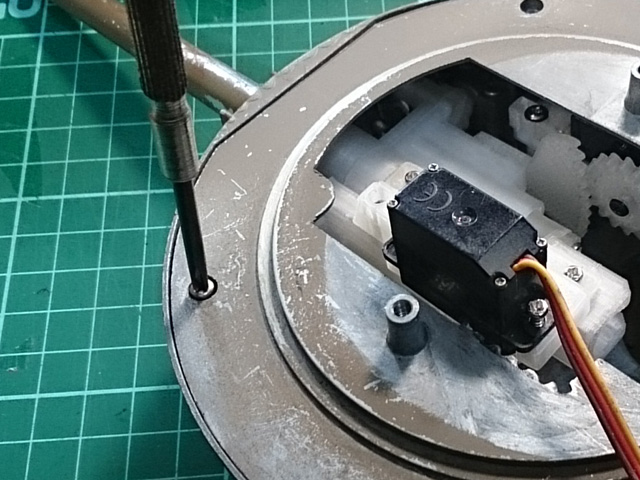

Fit turret lower hull

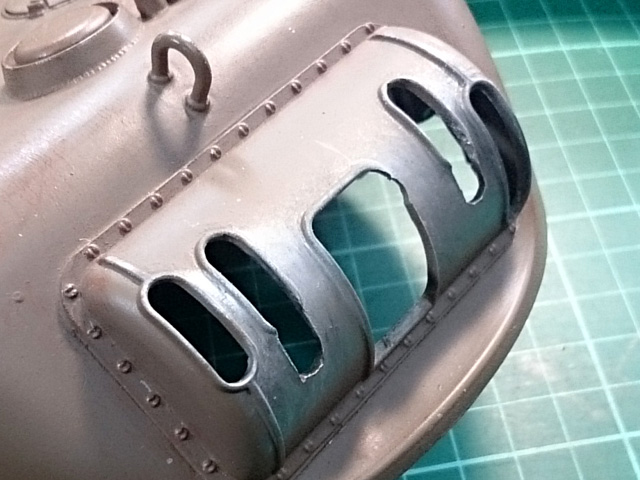

Turret lower hull must be trimmed a bit for recoil servo
Insert M2 gun barrel back.
¡@ |
