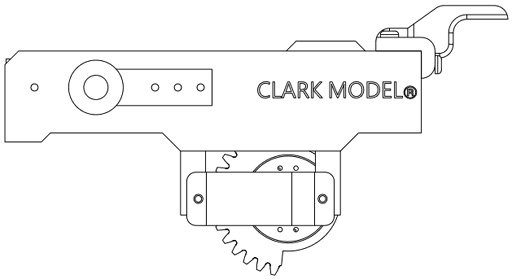

Universal Servo Recoil L : Long Travels Type Universal Servo Recoil

 Part No. 16011L

¡@

¡@

Copyright © 2016 CLARK MODEL. All rights reserved

¡@

 Part Number

 Part Name

Qty

Remark

A1

Cradle

1

¡@

A2

Recoil Gear Rock

1

¡@

A3

Recoil Servo Gear

1

¡@

A4

Gun barrel slider

1

¡@

A5

Gun barrel elevation horn

1

¡@

S1

Metal gear servo bag with screws for

gun recoil

1

¡@

MA1

2mm *6 PB Tapping screw

¡@

¡@

7

MA5

2mm *4 PB Tapping screw

¡@

4



Before Assembly

This Kit include 5 major parts

¡@

Tools needed for assembly

¡@

To remove/peel support material by hand

¡@

¡@

¡@

Sometimes, with the tool

¡@

Smooth inner surface for barrel movement.

¡@

¡@

¡@

Cut support material

Smooth outer surface for barrel movement.

¡@

Use 2.0mm drill to trim screw hole

remove support material for servo recoil gear

All parts are all clean up

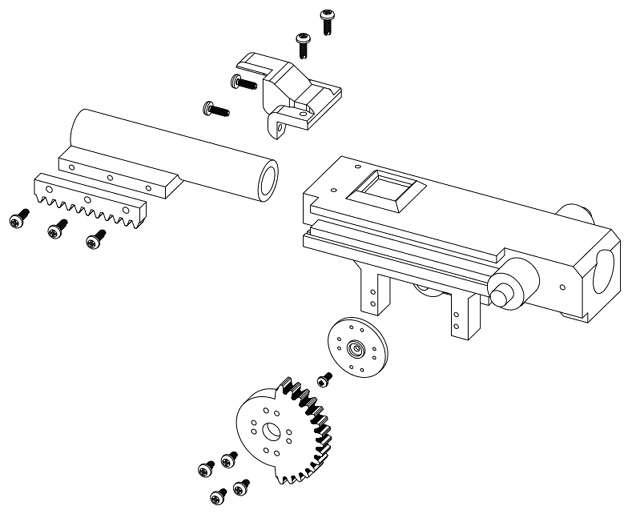

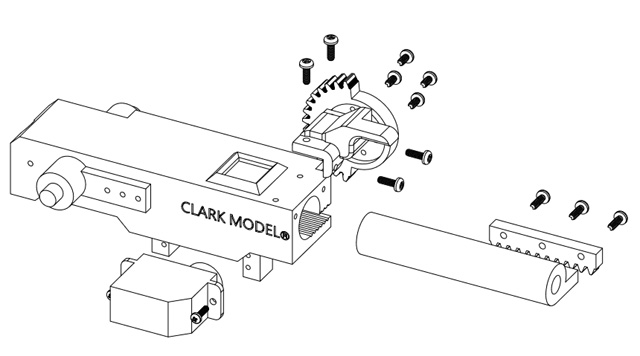

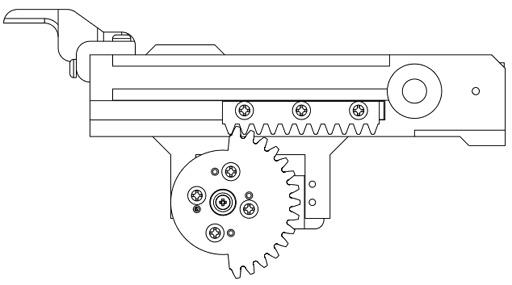

Insert A4 into A1

Bolt gear rock by MA1 screw

Bolt  A5 with MA1

¡@

¡@

Bolt servo by screw come with servo

¡@

Set servo to returned position before fitting gear

1. Plug servo to TK22,

2. Turn on TK22, servo goes to returned position,

3. Plug servo from TK22, servo keep in returned position

¡@

Push gear into servo shaft with force, then bolt it with the black screw in servo package.

¡@

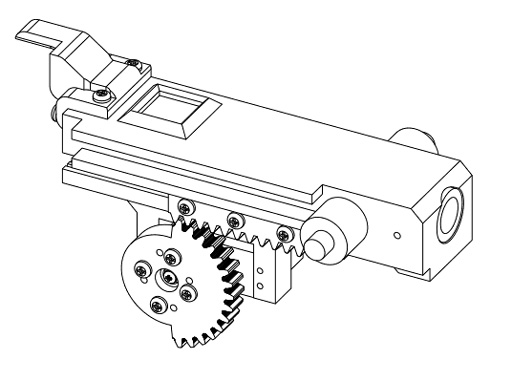

Done!

¡@

¡@

¡@

¡@

¡@
