Part No.16004A( Include Metal Gear Servo *2 )
¡@ The following is 16004A( PETG Version )
¡@ ¡@
¡@ |
Part No.16004A( Include Metal Gear Servo *2 )
¡@ The following is 16004A( PETG Version )
¡@ ¡@
¡@ |
¡@
|
Part Number |
Part Name |
Qty |
Remark |
|

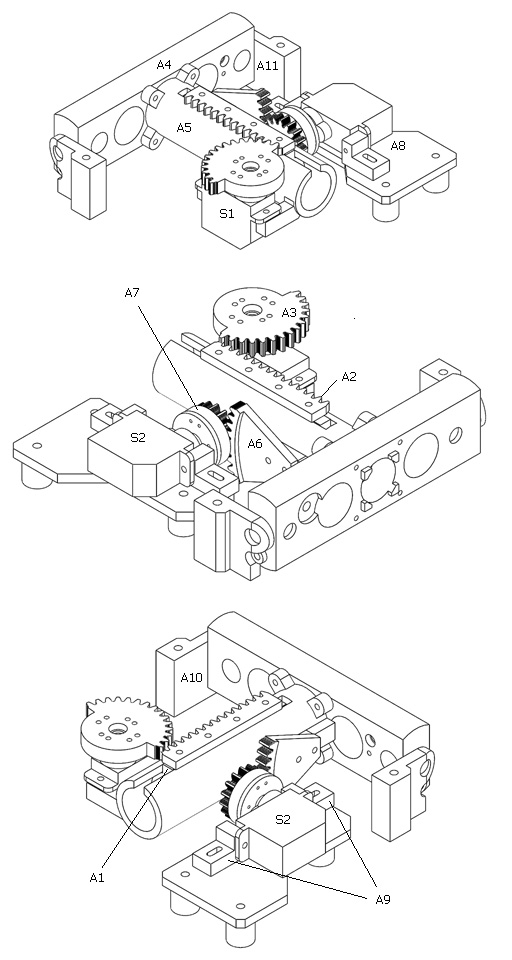

A1 |
Gun barrel extension |
1 |
¡@ |
|
A2 |

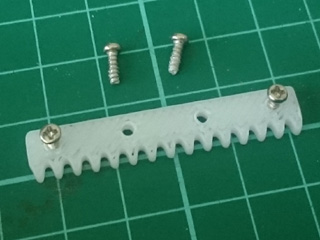

Recoil Gear Rock |
1 |
¡@ |
|
A3 |
Recoil Servo Gear |
1 |
¡@ |
|
A4 |
Cradle Front |
1 |
¡@ |
|
A5 |
Cradle Back |
1 |
¡@ |
|
A6 |
Cradle Elevation Gear |
1 |
¡@ |
|
A7 |
Servo Elevation Gear |
1 |
¡@ |
|
A8 |
Elevation servo stand |
1 |
¡@ |
|
A9 |

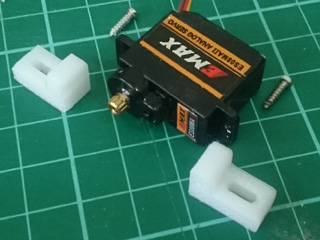

Elevation servo fixture |
2 |
|
|
A10 |
Tunnion L |
1 |
¡@ |
|
A11 |
Tunnion R |
1 |
¡@ |
|
S1 |
Metal gear servo bag with screws for gun recoil
|
1 |
Optional |
|
S2 |
Metal gear servo bag with screws for gun elevation
|
1 |
Optional |
|
MA1 |

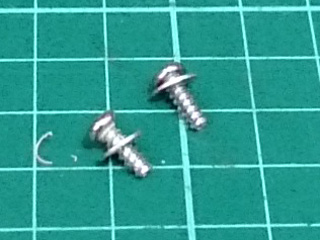

2mm *6mm PB Tapping screw ¡@
¡@ |
8 / 26(PETG version) ¡@ |
|
|
MA2 |
2mm *10 PB Tapping screw
|
4 |
|
|
MA3 |
2*6mm KB Tapping screw
|
7 / 9(PETG version) |
|
|
MA4 |
2*8*5mm PWB Tapping screw
|
2 |
¡@ |
|
MA5 |

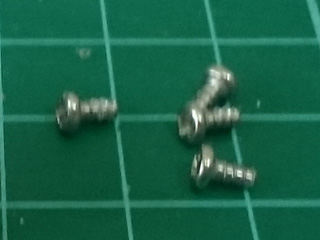

2mm *4 PB Tapping screw
|
8 |
|
|
MA6 |
3mm *8 PB Tapping screw
¡@ |
2 |
¡@ |
|
Before Assembly - Please to read "How to work with 3D printed parts" and to clean and trim parts.
- Few procedures are the same to 16004,
so picture for 16004 may used )
¡@ |
|

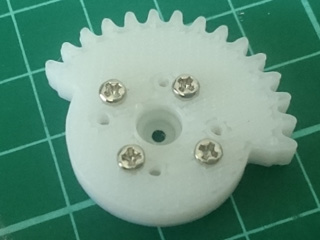

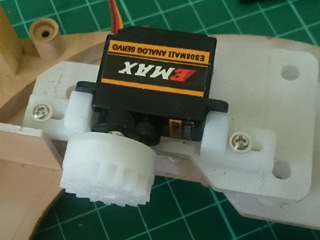

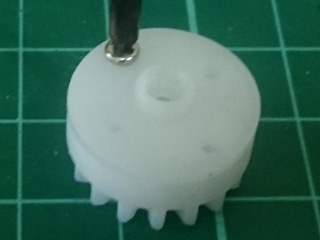

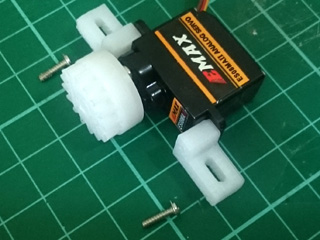

Gun Recoil Bolt A3 and disk shape servo horn with 4*MA5 screws

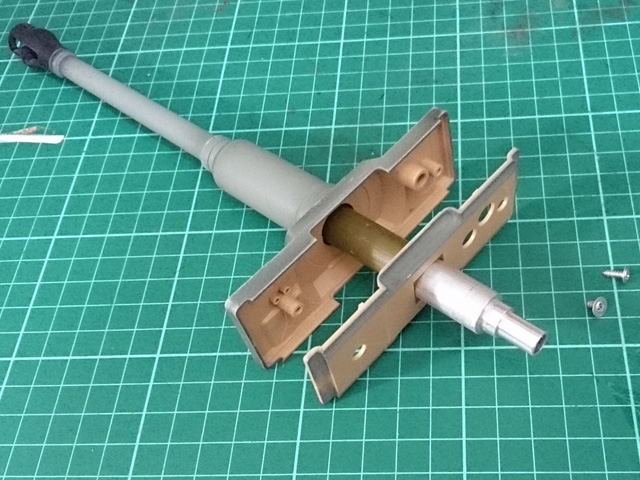

Remove gun and mantlet from Tank

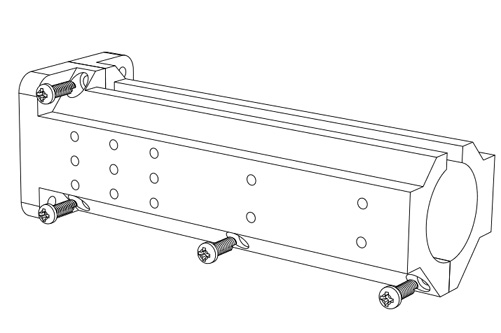

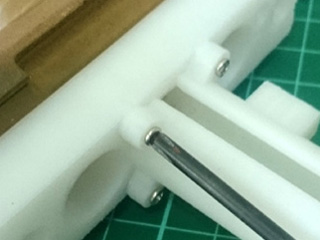

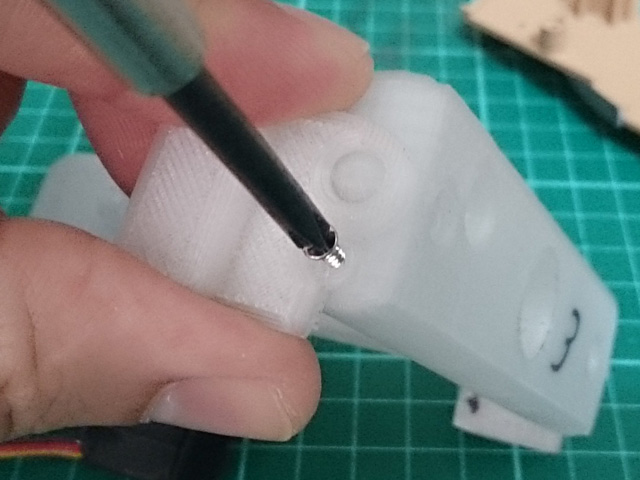

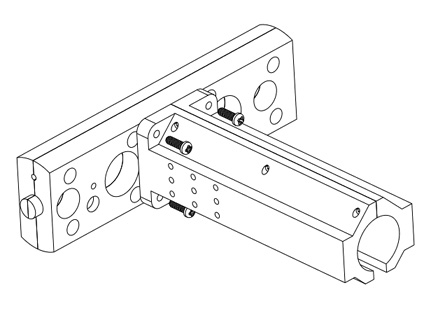

Bolt A4 and A5 with MA2 screw, don't bolt them too tight, will need to tune later

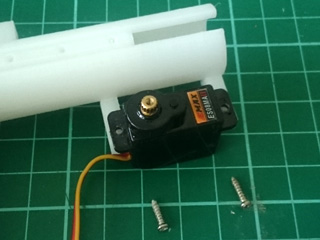

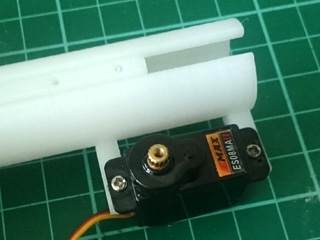

Fit servo to A5, use Tapping screw in servo bag

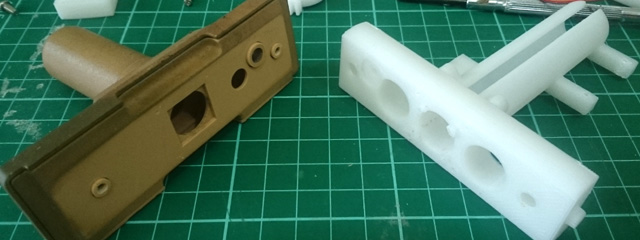

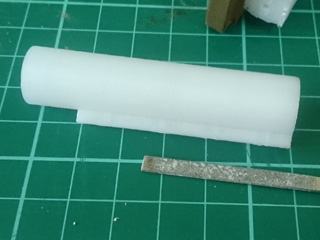

Smooth surface of gun barrel extension A1 till it can move smoothly in A5

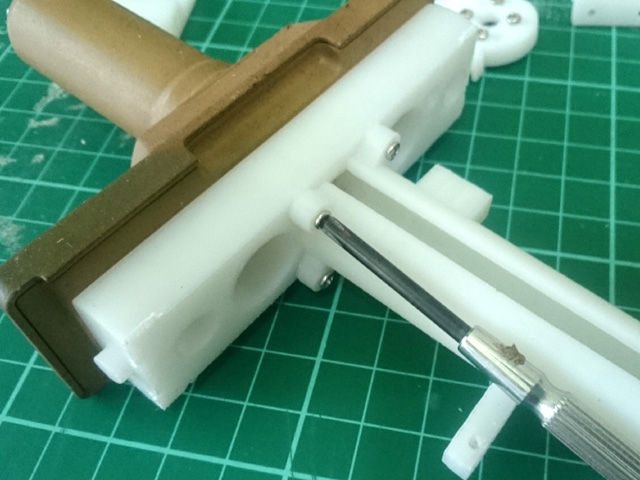

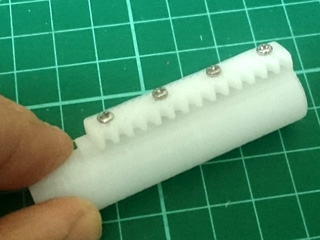

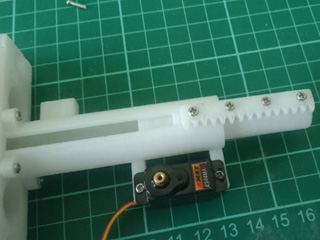

Blot gear rock A2 to A1 with 4*MA1 screw

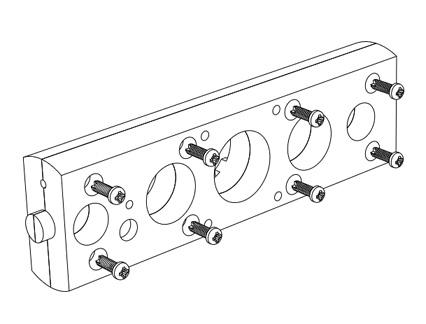

bolt mantlet with original screw

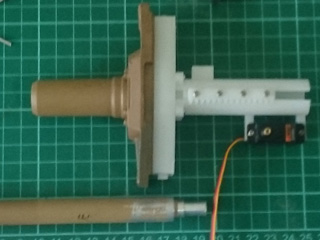

Insert A1 into A5,
Insert gun barrel to the tip of A1, A1 is designed to fit gun barrel closely, no glue is needed. Adjust MA2 screws till gun barrel can move smoothly

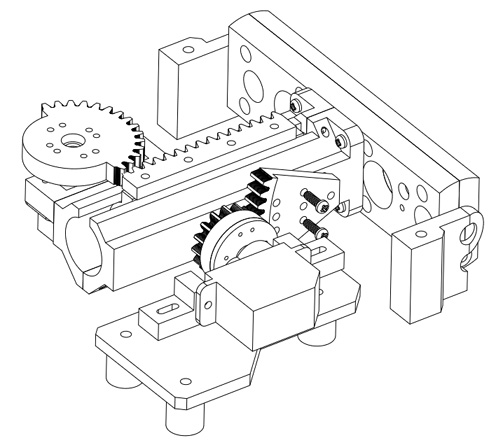

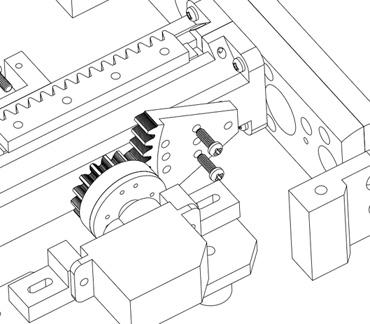

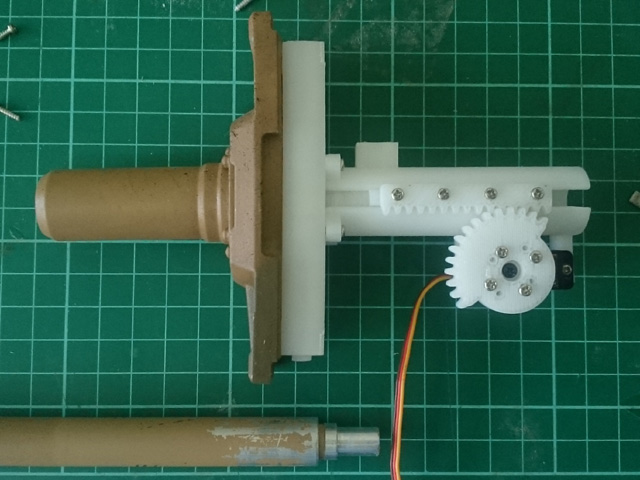

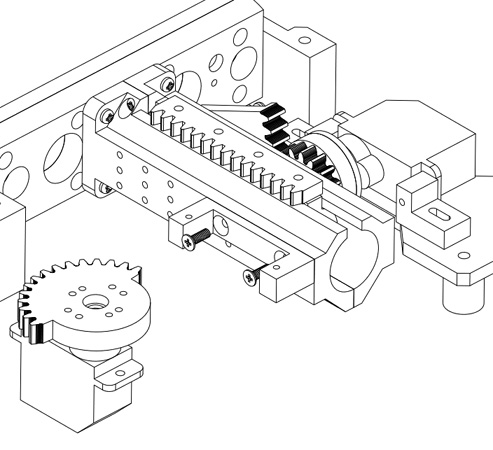

Fit A3 recoil gear assembly to servo, note the angle of recoil gear, then bolt it with black screw in servo accessory bag.
¡@ |
|

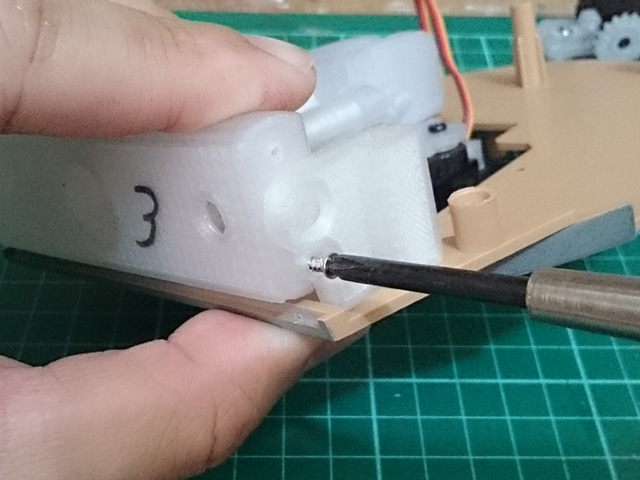

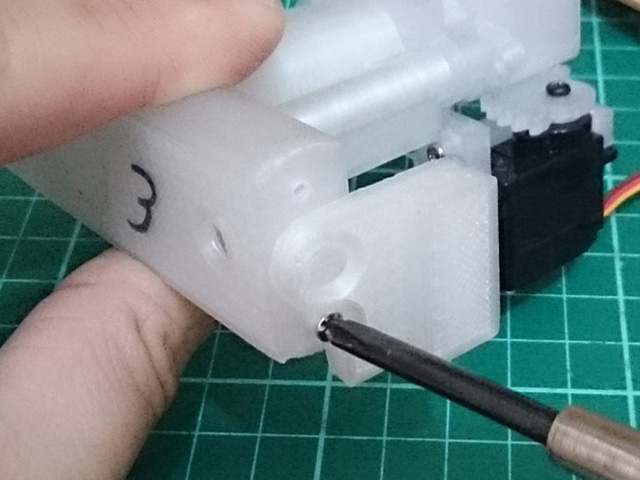

Tunnion Bolt A10 and A11 to A5 with MA3
¡@

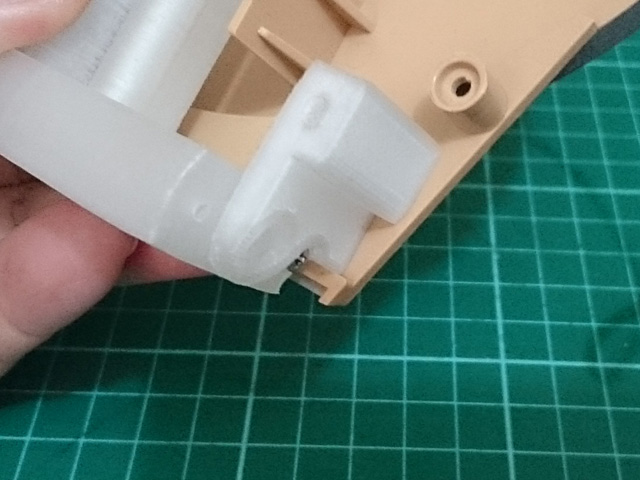

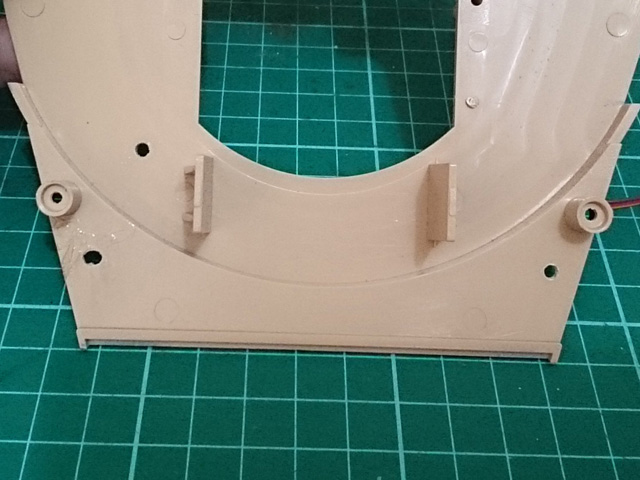

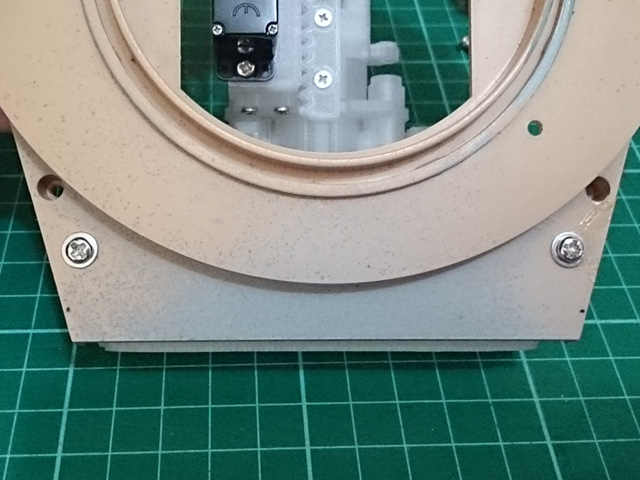

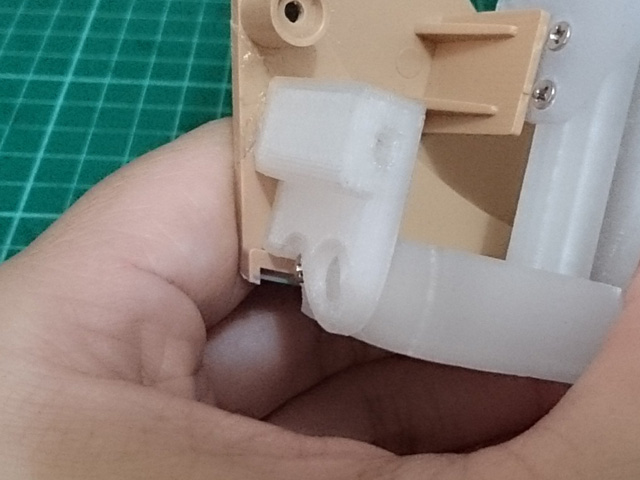

Put tunnion to turret lower hull, align it as picture
¡@

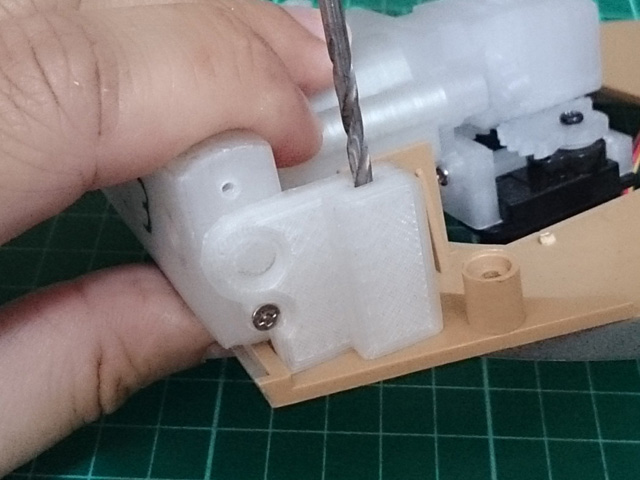

Use 2.6mm drill to make hole
On both side.

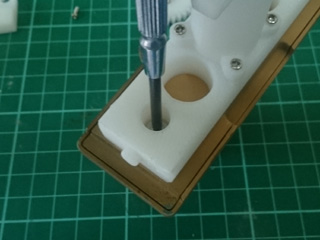

Then use 3mm drill to expand hold to 3mm
Insert MA6 to MA7
Bolt A13 and A14
Remove screw.
¡@ |
¡@
|

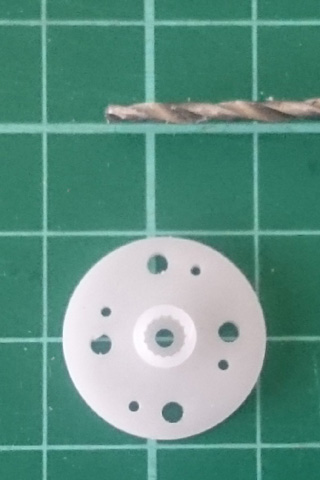

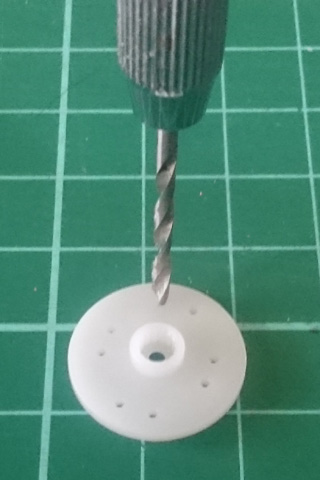

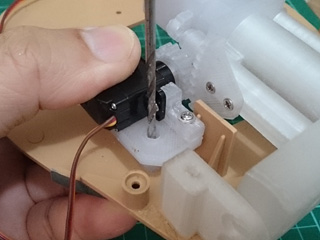

Elevation Use 2mm drill to enlarge screw hole on servo disk to 2mm

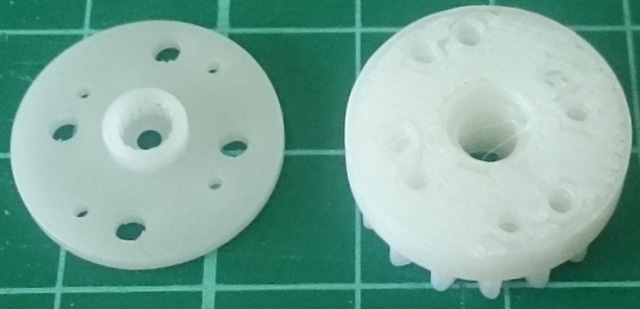

Align screw hole and stack servo disk and A7

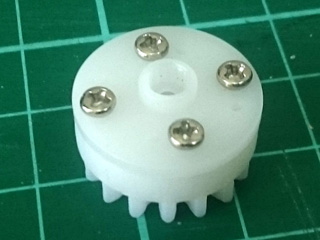

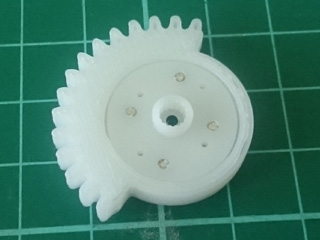

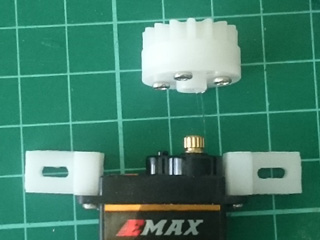

Bolt together with 4*MA5 screws
Use Tapping screw in servo bag to bolt A9*2

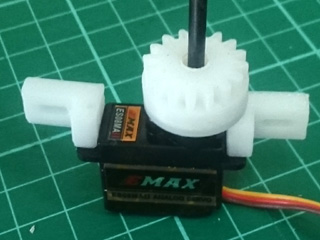

Insert servo gear assembly to servo shaft and bolt it with the black screw in servo bag

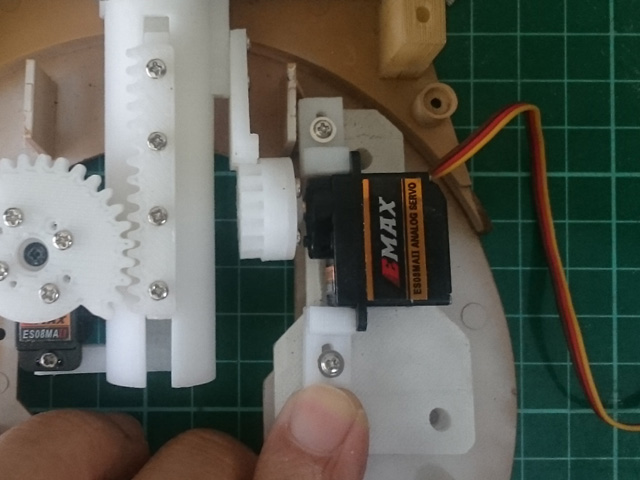

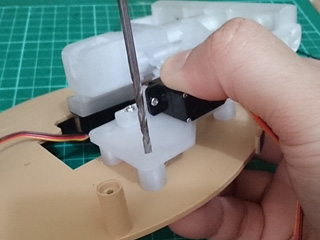

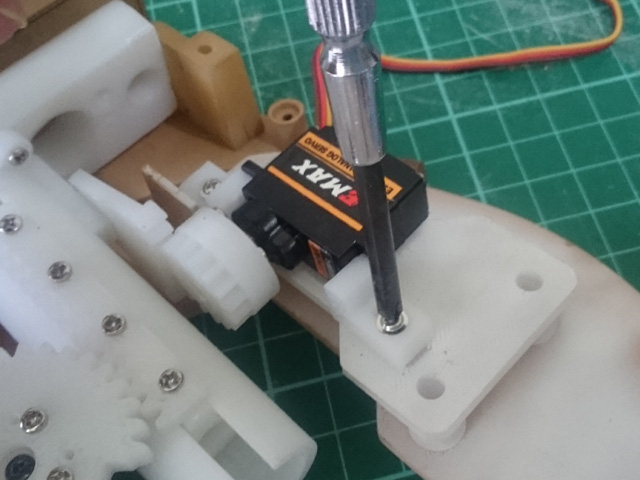

Install servo to servo stand with MA4 screw, the slot on A12 allows servo to moves for gear gap adjustment. set servo to the middle for now

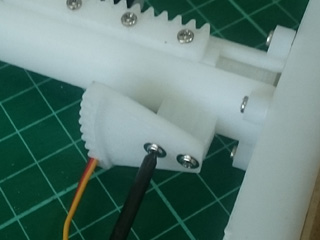

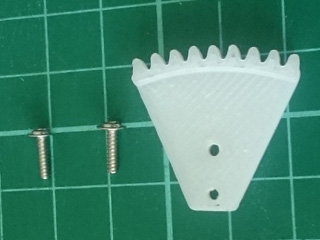

Bolt elevation gear to A5 with MA4 screw

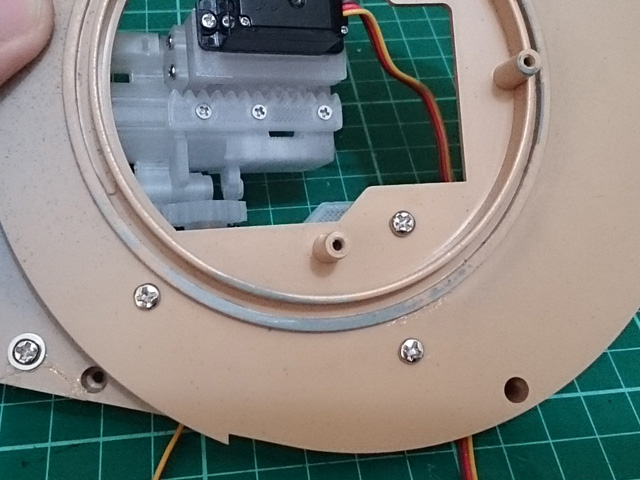

put elevation servo assembly to turret floor

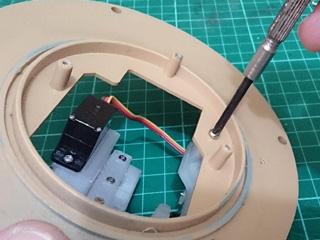

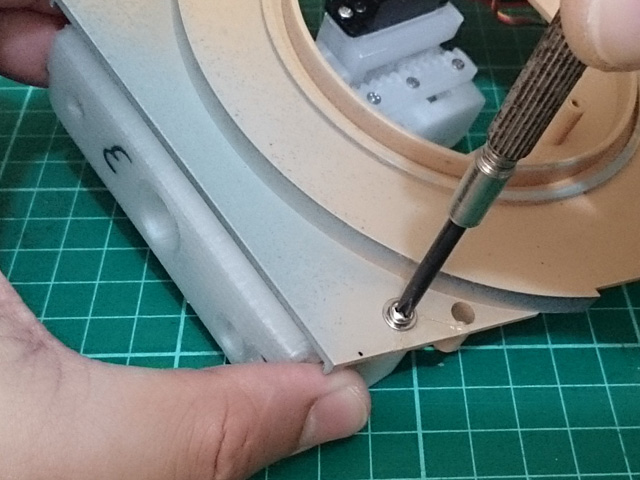

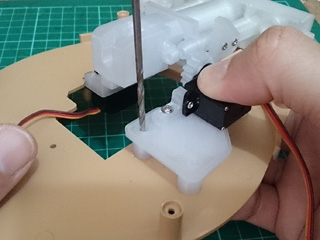

Use 2.6mm drill to make hole for MA6
Use 3mm to expand hole to 3mm, the bolt servo assembly ti turret lower floor.

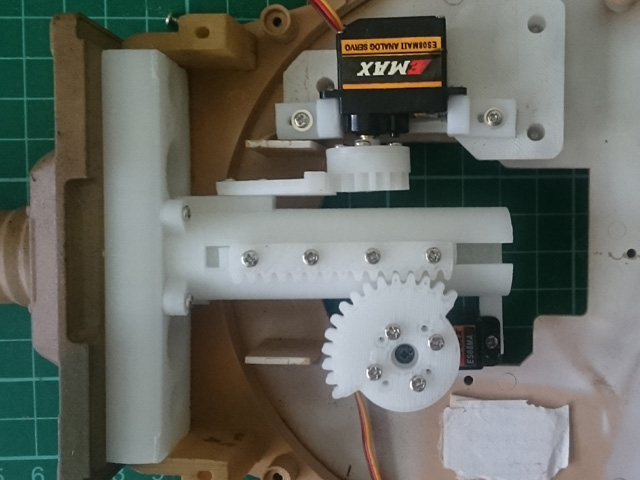

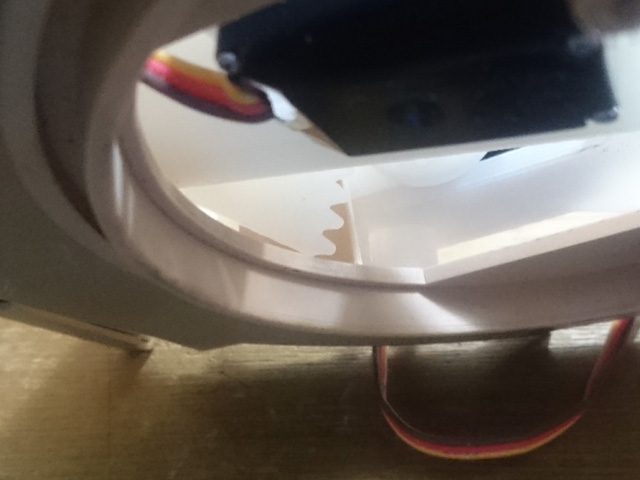

Connect servo to TK board, set servo to top position, move gun barrel to adjust elevation gear position, elevation gear almost touch turret floor when elevation gun to most top position.
Push servo to minimize gap, then to fasten servo.
¡@ |
|

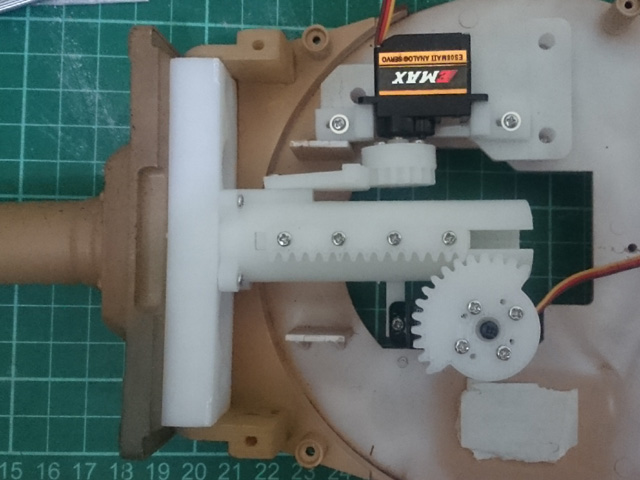

Final Assembly

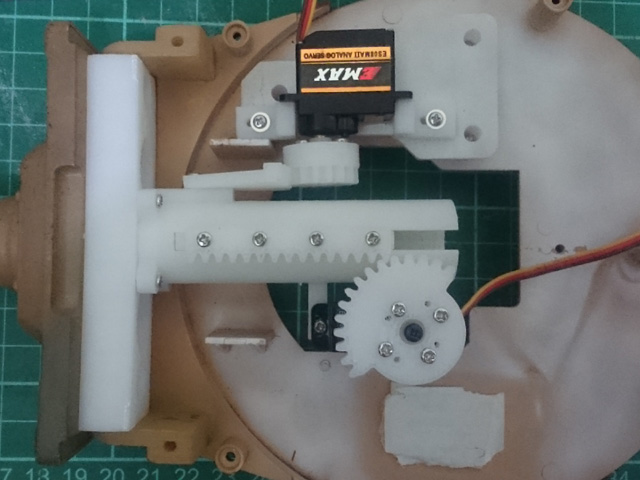

This picture shows recoil lenght
¡@ |
