Part No. 16017 ¡@
¡@ |
Part No. 16017 ¡@
¡@ |
¡@
|
Part Number |
Part Name |
Qty |
Remark |
|
A1 |
Slider |
1 |
¡@ |
|
A2 |
Recoil Gear Rock |
1 |
¡@ |
|
A3 |
Recoil Servo Gear |
1 |
¡@ |
|
A4 |
Cradle |
1 |
¡@ |
| A5 |
Cradle Front |
1 | ¡@ |
|
A6 |
Cradle Elevation Gear |
1 |
¡@ |
|
A7 |
Servo Elevation Gear |
1 |
¡@ |
|
A8 |
Elevation servo stand |
1 |
¡@ |
|
A9 |
Elevation servo fixture |
2 |
|
|
A10 |
Tunnion L and R |
2 |
¡@ |
|
S1 |
2Kg, Metal gear servo bag with screws for gun recoil |
1 |
¡@ |
|
S2 |
13Kg, Metal gear servo bag with screws for elevation |
1 |
¡@ |
|
MA1 |
2mm *6 PB Tapping screw
¡@ |
7 | |
|
MA2 |
2mm *10 PB Tapping screw
¡@ |
2 |
|
|
MA3 |
2*6mm KB Tapping screw
|
7 |
|
|
MA4 |
2*8*5mm PWB Tapping screw
¡@ |
0 |
¡@ |
|
MA5 |
2mm *4 PB Tapping screw
|
8 |
¡@ |
|
MA6 |
3mm *8 PB Tapping screw
|
7 |
¡@ |
|
MA7 |
3*6*0.5 Washer
|
2 |
¡@ |
|
MA10 |
3mm *10 PB Tapping screw
¡@ |
2 |
¡@ |
|
MA17 |
5MM steel ball
|
6 |
¡@ |
|
Before Assembly
Please to read "How
to work with 3D printed parts" and to clean and trim parts.
¡@ |
|

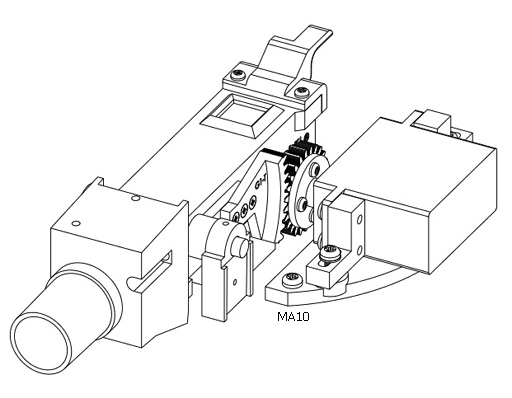

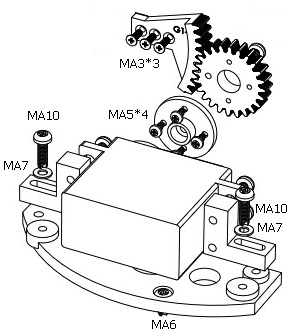

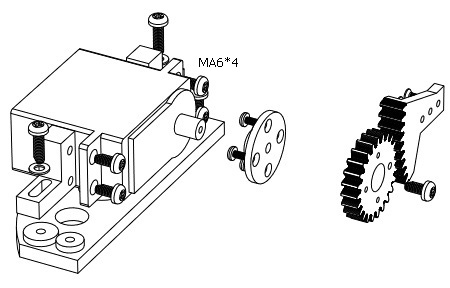

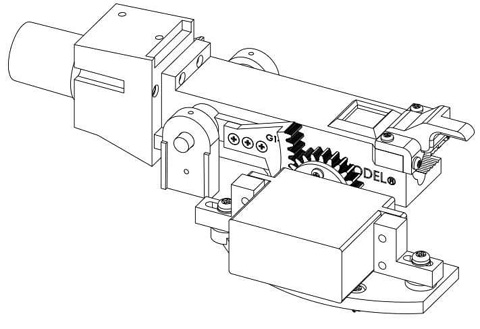

Exploded view of elevation servo assembly
¡@

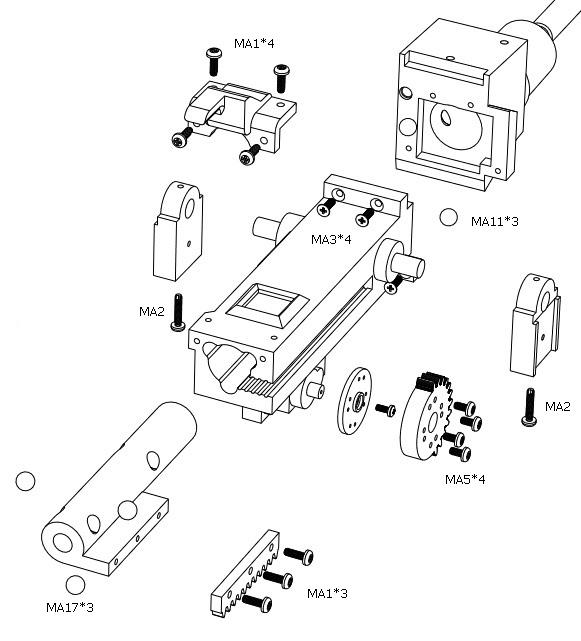

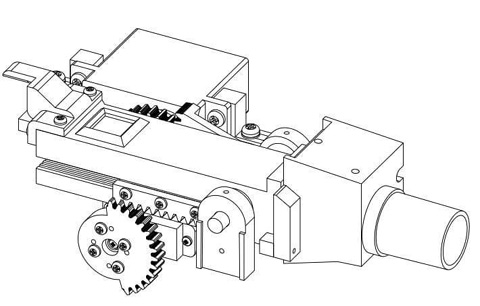

¡@ Exploded view of recoil assembly

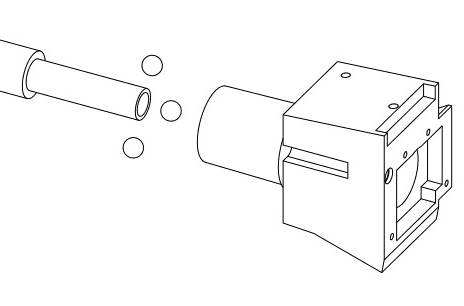

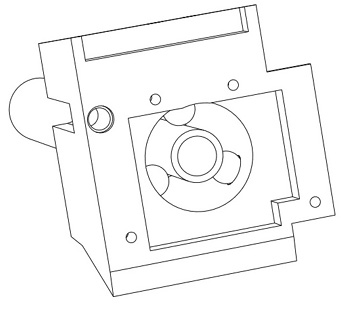

Explode view of gun barrel assembly
¡@ |
¡@
