Servo Recoil and elevation upgrade Kit for HengLong Challenger 2

 Part No. 16019

@

@

@

@

@

 Part Number

 Part Name

Qty

Remark

A1

Gun barrel Slider

1

@

A2

Recoil Gear Rock

1

@

A3

Recoil Servo Gear

1

@

A4

Servo Elevation Rock

1

@

A4

Servo Elevation Gear

1

@

A5

Elevation servo stand

1

@

A6

Elevation servo fixture

2

A7

Tunnion L and R

2

@

A8 Metal barrel O ring 1 @

S1

2Kg, Metal gear servo bag with screws for

gun recoil

1

@

S2

13Kg, Metal gear servo bag with screws for

elevation

1

@

MA1

2mm *6 PB Tapping screw

@

@

8

MA3

 2*6mm KB Tapping screw

6

MA4

2*8*5mm PWB Tapping screw

@

2

@

MA6

3mm *8 PB Tapping screw

@

6

@

MA9

2*6*5mm PWB Tapping screw

2 @



 Before Assembly

 Please to read "How to work with 3D printed parts" and to clean and trim parts.

@



Gun Recoil

Smooth inner surface of A7 for barrel movement.

@

@

Smooth surface of gun barrel extension too

@

Push metal gun barrel to extension with force, no glue is need.

@

@

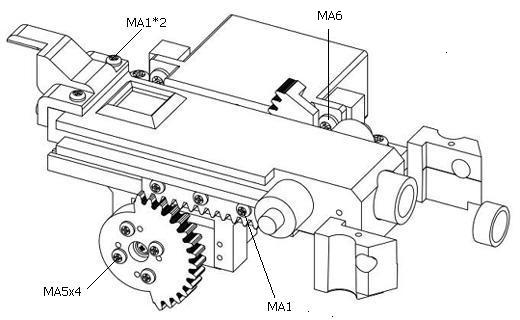

Bolt gear rock to barrel extension with MA1

@

@

@

Insert barrel assemble to cradle

@

@

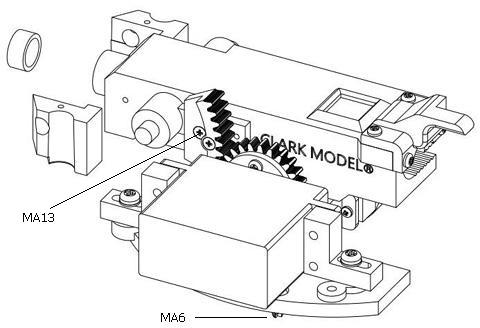

Bolt servo with MA1 screw

@

Connect servo to TK22 to set servo to normal position then bolt servo gear with the black screw in servo accessory bag

@

Note the angle of servo gear

@

Bolt elevation gear with MA3 screw

@

@

Insert mantlet

@

@

Bolt mantlet with MA9 screw

@

@

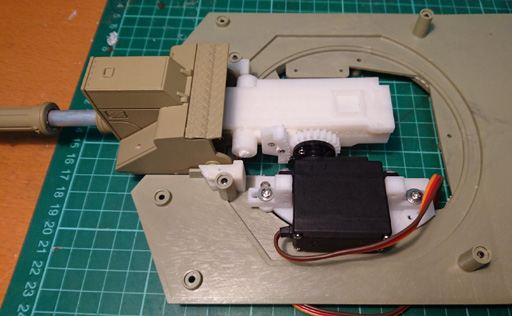

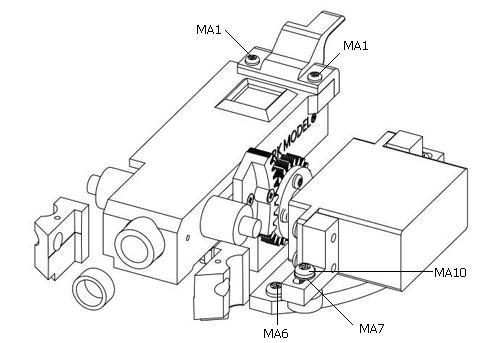

Completed recoil assembly

@

Remove some internal structure in upper turret

@

Insert recoil assembly

@

Insert MA6 screw to Tunnion L and R

@

Fit tunnion on both side,  note the direction of tunnion

@

Bolt tunnion

@

Now the gun can elevate and depress correctly

@

@

(Optional)Fit TBU base to elevation servo stand with MA3*4

@

Fit to upper turret

@

Bolt it with MA6*4

@

Fit elevation servo fixture with MA1

@

Bolt servo gear with the black screw in servo accessory bag

@

Insert MA4 screw to the slot on servo fixture

@

Fit elevation gear assembly to the stand

@

Connect servo to TK22 to set servo to normal position then tight the screw to fix

@

@

Put lower cover back and bolt it

@

Open the hatch, can see the TBU base, done!

@

@
